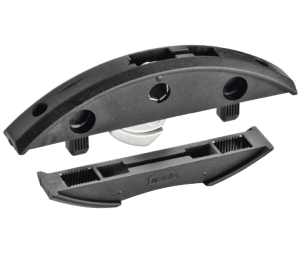

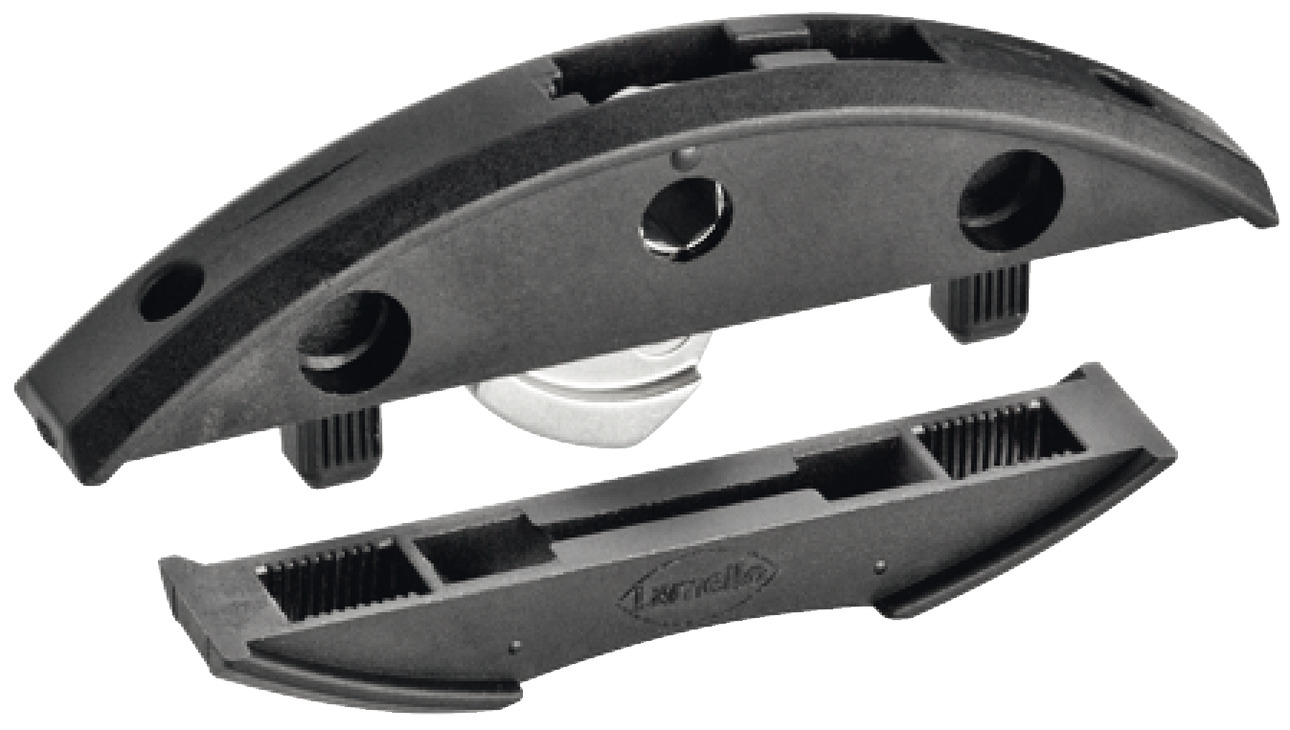

Hafele 267.91.188

• Cabinet Connector

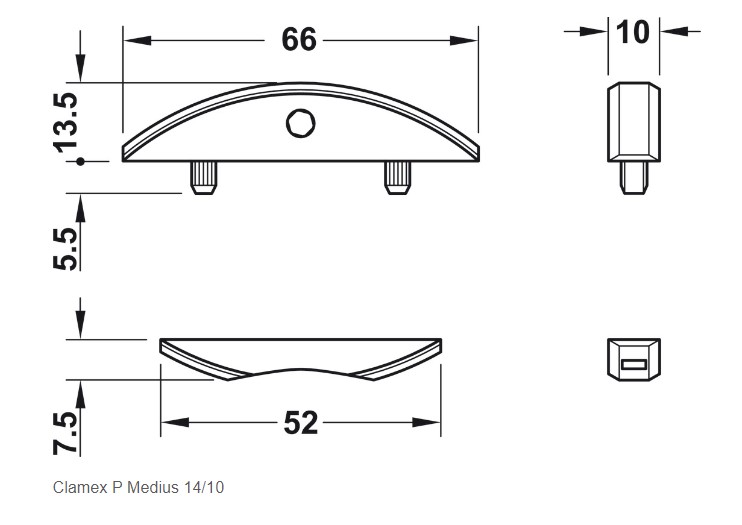

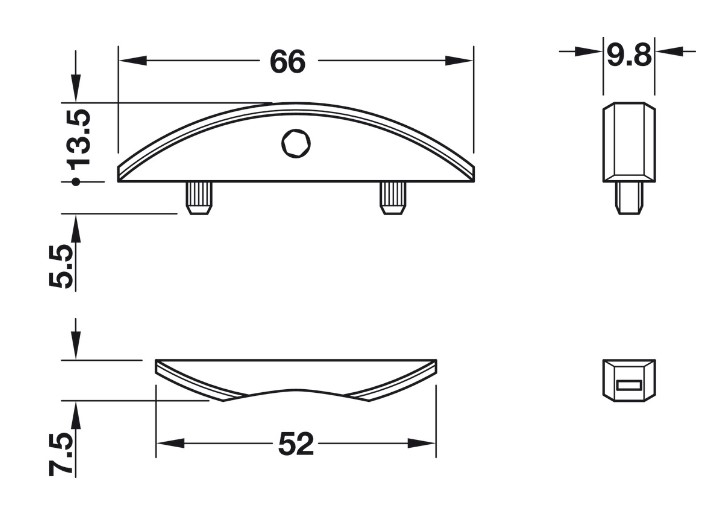

• Clamex P Medius
• The three top reasons to use Clamex P-14 as a standard connector:
• 1. Nearly invisible, secure connections
• 2. Process advantages in production, transport and assembly
• 3. One connector for all connection applications and angles
• Quick and tool-less installation
• Connector can be removed and retightened as necessary
• The tensioning element makes high force transfer possible
• Laterally adjustable
• For corner, center panel and surface connections form 30° - 180°
• Area of application: For center panels

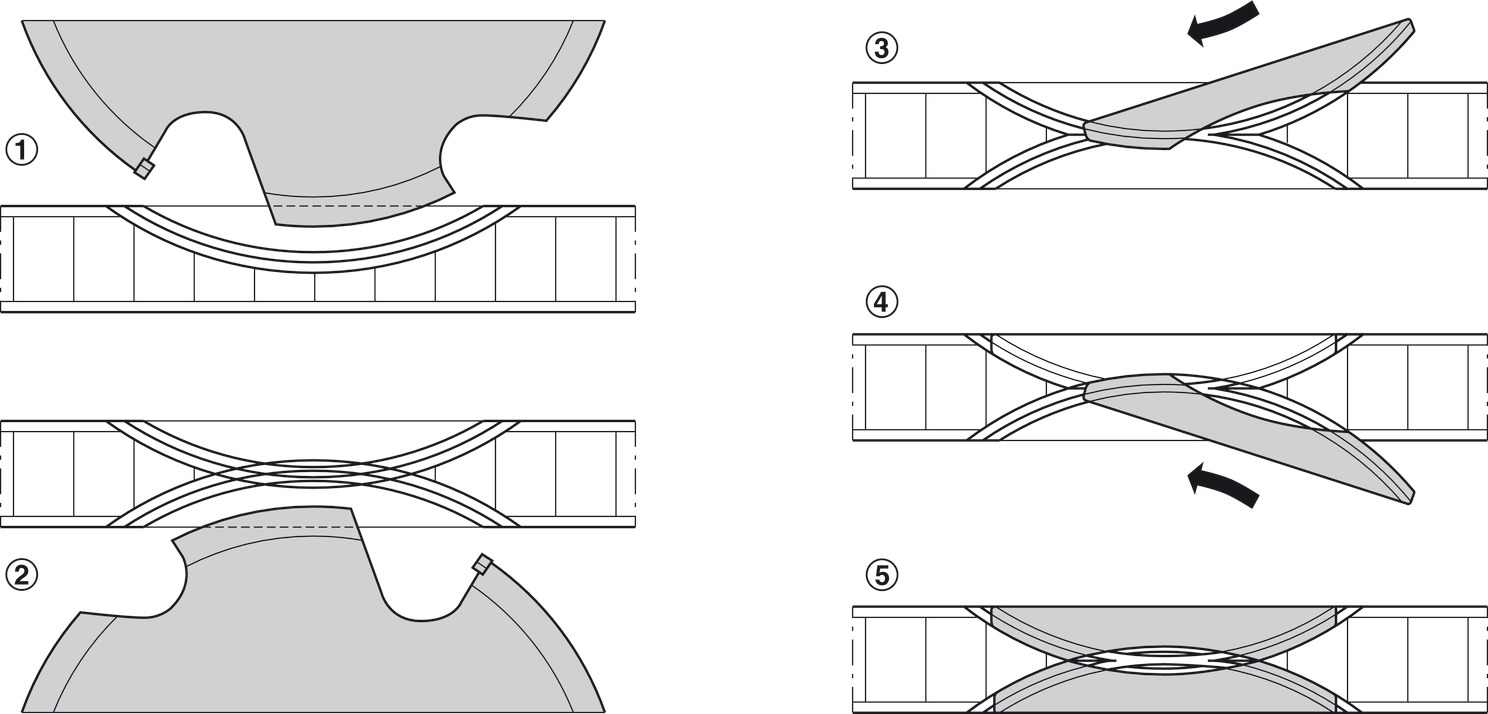

• Installation description:

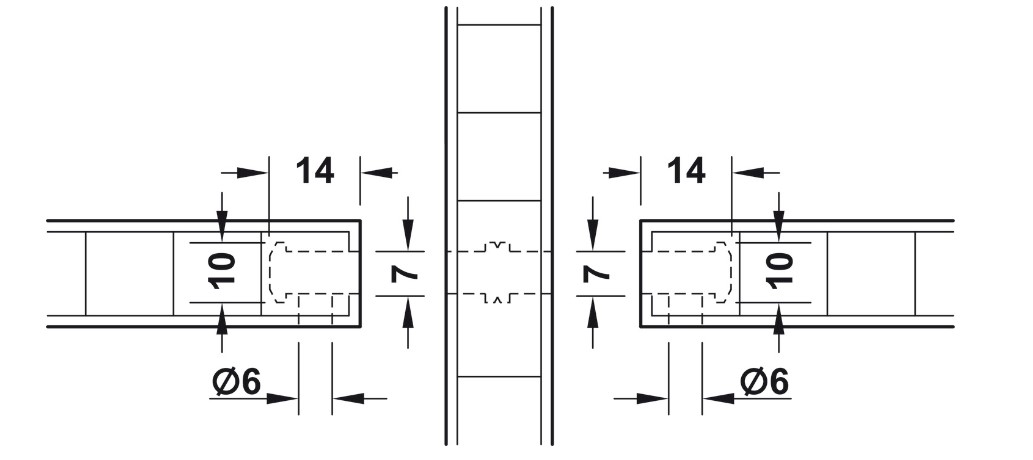

• Mill 7 mm groove with undercut for connector
• Drill 6 mm opening for tightening element and slide in the connector
• Join workpieces and tighten with SW4 hex wrench
• Adjustment facility: Lengthways ±1 mm
• For wood thickness: =16 mm
• Routing depth: 14 mm
• Material:
• Plastic
• Deadbolt material: Zinc Alloy
• 1 piece = 1 pair
• Note: Join wood using Zeta P2 power tool: depth setting 14
• Packing: 80 each/box. Sold in full box quantities only.
• Note: Unit of measure are Boxes. Each Box contains 80 pieces. When you are purchasing a quantity of 1 you will get one box of 80 pieces. We are unable to break open the box quantity, therefore we are unable to sell you this item in multiples other than 80.

Optional accessories:

• Biscuit Joiner, Zeta P2: 002.18.003, 002.18.010
• Lamello Alignment Biscuit, Bisco, Plastic: 267.91.174, 267.91.183
• Blades for Biscuit Joiner, for Lamello P System: 002.18.009
