Hafele 263.73.620

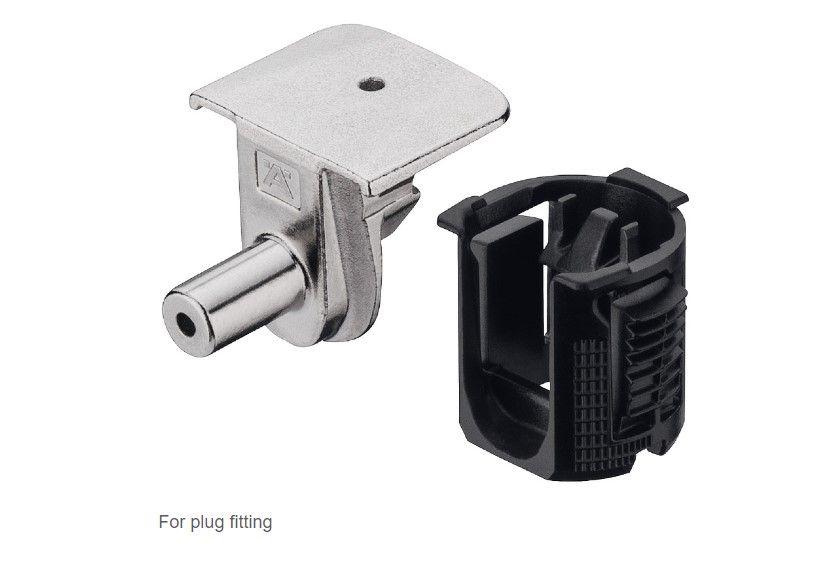

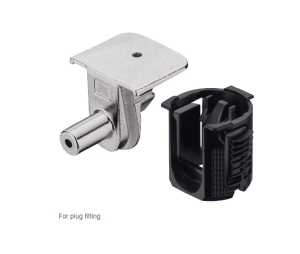

Hafele 263.73.620 Shelf Connector, Hafele Ixconnect Tab 15, for Plug Fitting into Drill Hole 1/8", for Wood Thickness from 5/8", Plastic/Zinc, Nickel Plated

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 263.73.620 Shelf Connector, Hafele Ixconnect Tab 15, for Plug Fitting into Drill Hole 1/8", for Wood Thickness from 5/8", Plastic/Zinc, Nickel Plated

+ Add to My Wish List

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 263.73.620 Shelf Connector, Hafele Ixconnect Tab 15, for Plug Fitting into Drill Hole 1/8", for Wood Thickness from 5/8", Plastic/Zinc, Nickel Plated

The boss insert locks into the shelf without additional safety lock screw

Shelf Connector
Häfele Ixconnect Tab 15
Area of application: For shelves with thickness of 16–19 mm to additionally secure shelf against toppling increased stability in furniture when using the Tab 15 for screw fixing

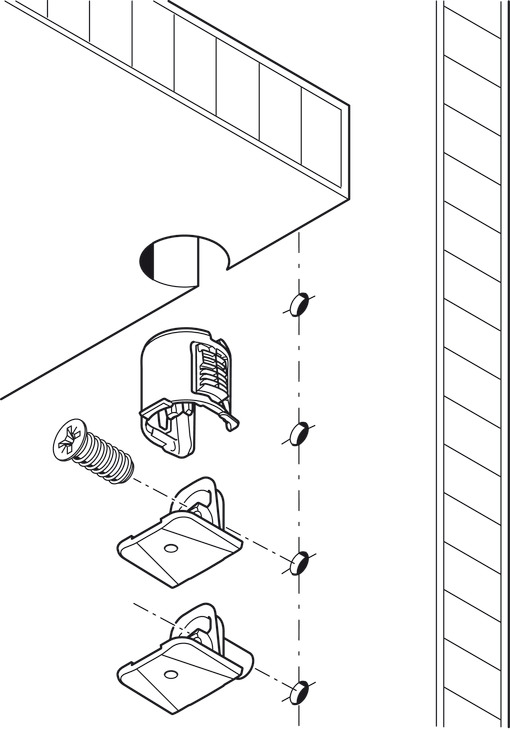

Installation description:
- Installation without tools by means of manual push fitting
- Disassembly by striking with the hand or using a metal pin such as a pin needle

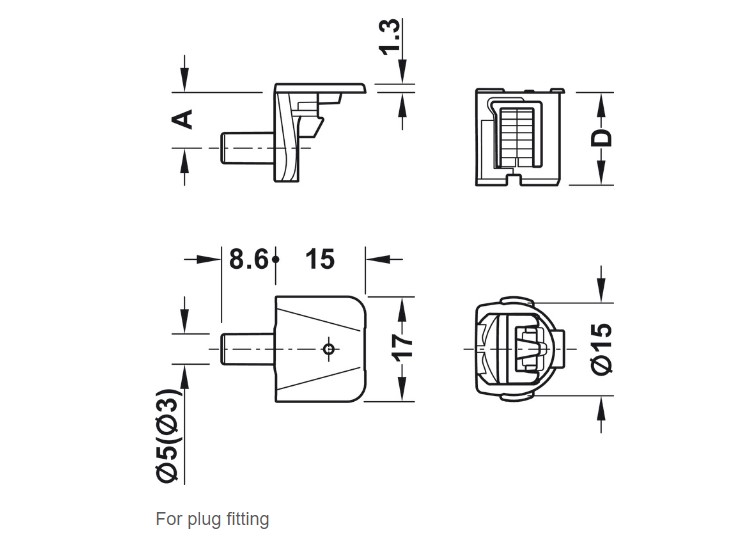

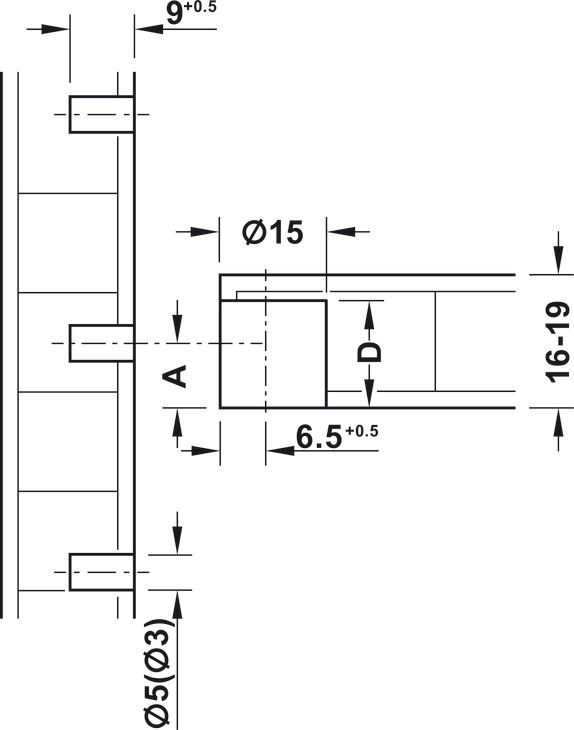

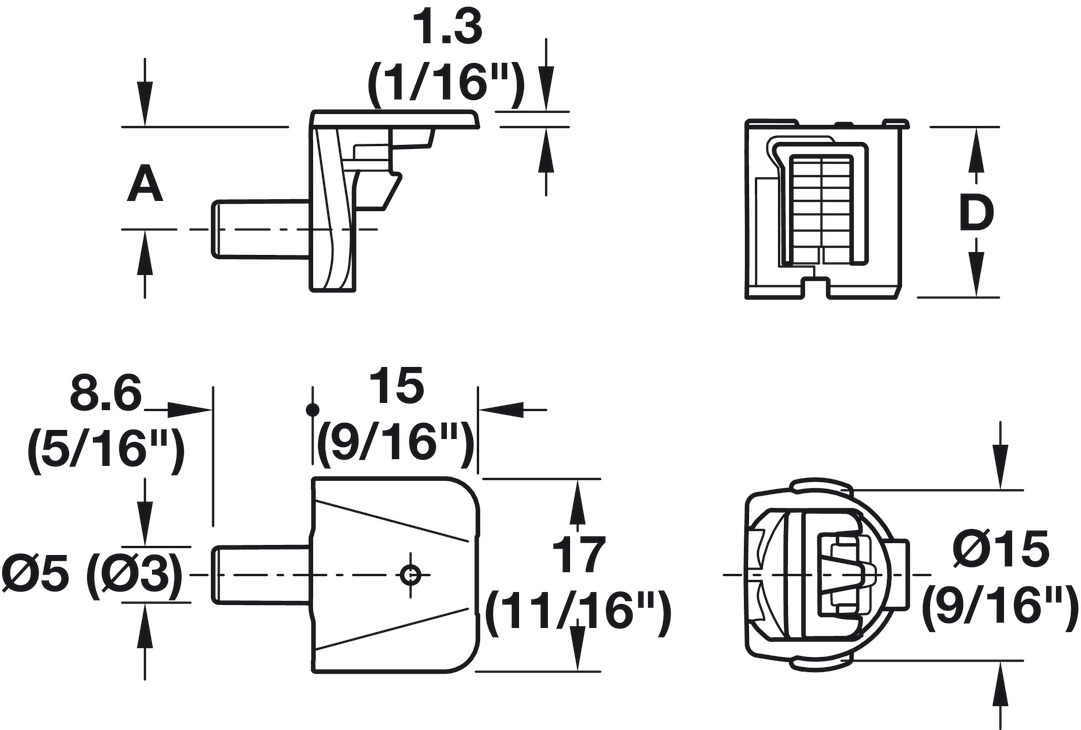

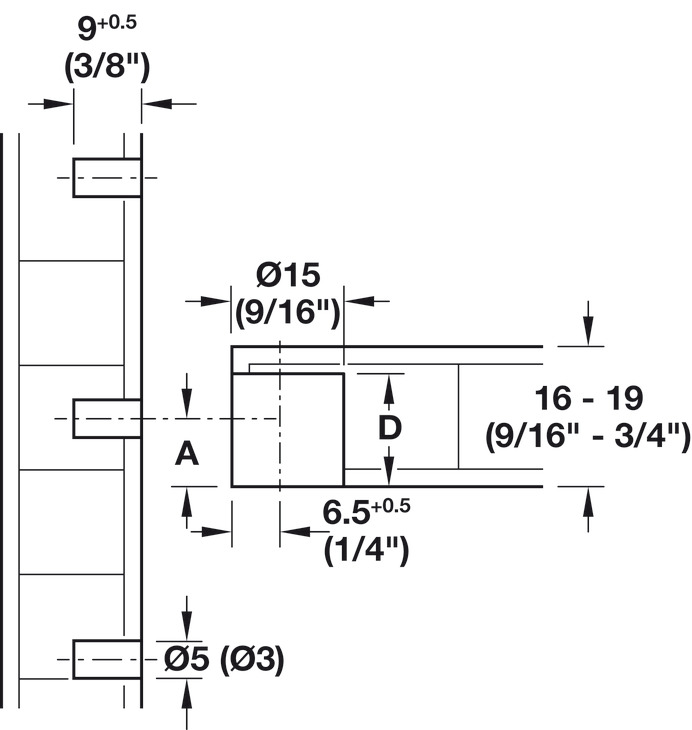

Installation: For plug fitting into drill hole 3 mm
For wood thickness: 16 - 19 mm
Drilling depth: 13 + 0.2 mm
Drill hole Ø: 15 mm
Material:
- Support: Zinc alloy
- Boss insert: Plastic
Finish: Nickel plated
Note:
- Modern lattice design
- The boss insert locks into the shelf without an additional safety screw
- Installs and disassembles without tools
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
