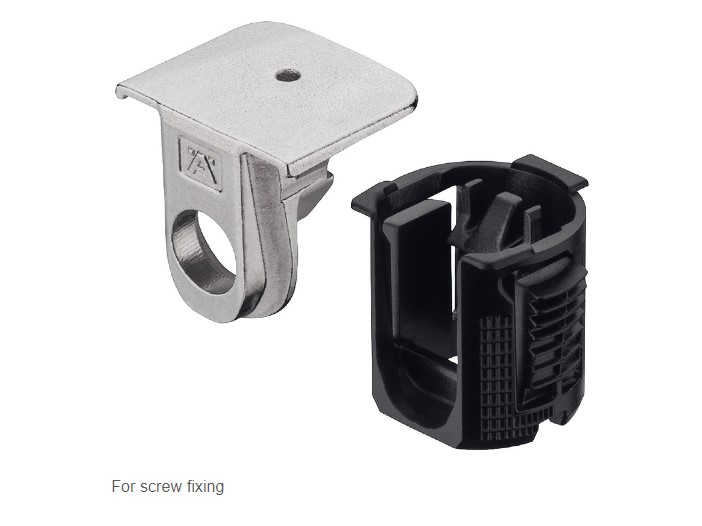

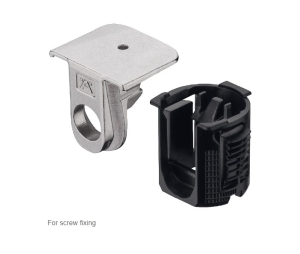

Hafele 263.73.611

• Shelf Connector
• Häfele Ixconnect Tab 15
• The boss insert locks into the shelf without additional safety lock screw
• Installation and disassembly without tools
• Modern lattice design
• The boss insert locks into the shelf without an additional safety screw
• Installs and disassembles without tools
• For Plug Fitting
• Area of application:
• For shelves with thickness of 16-19 mm
• To additionally secure shelf against toppling
• Increased stability in furniture when using the Tab 15 for screw fixing

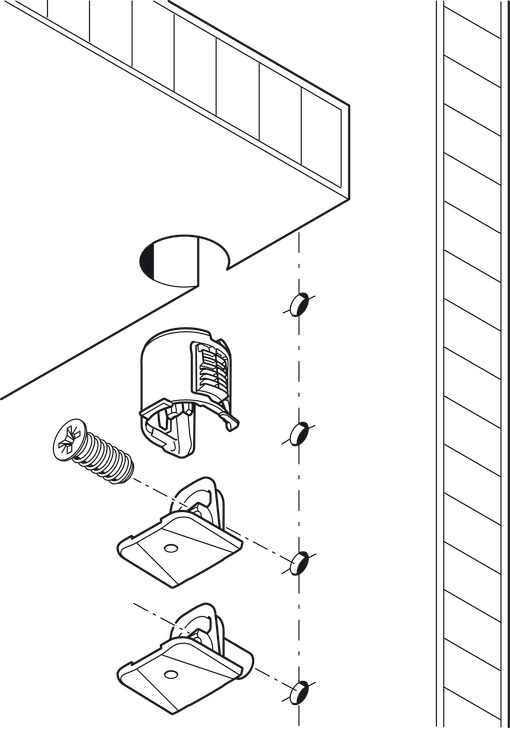

• Installation:
• Installation without tools by manual push fitting
• Disassembly by tapping with the hand or by means of a metal pin, e.g. push pin
• Installation description:
• Installation without tools by means of manual push fitting
• Disassembly by striking with the hand or using a metal pin such as a pin needle

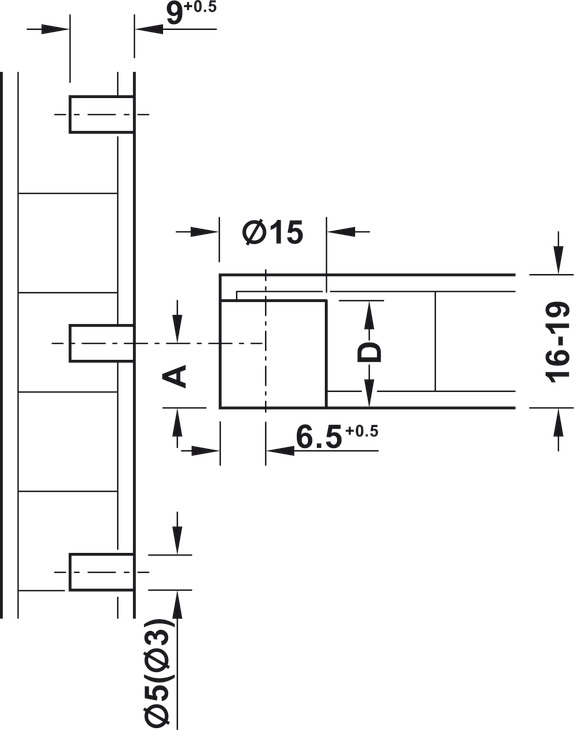

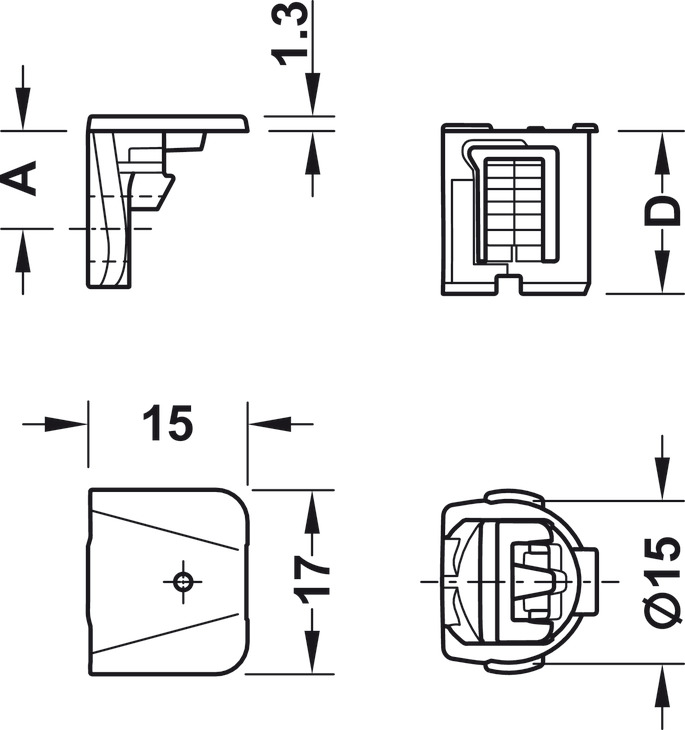

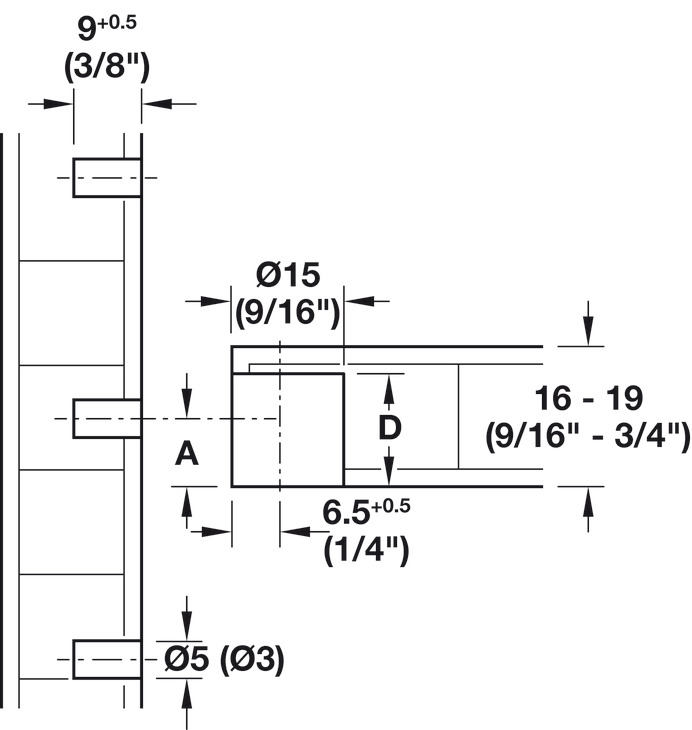

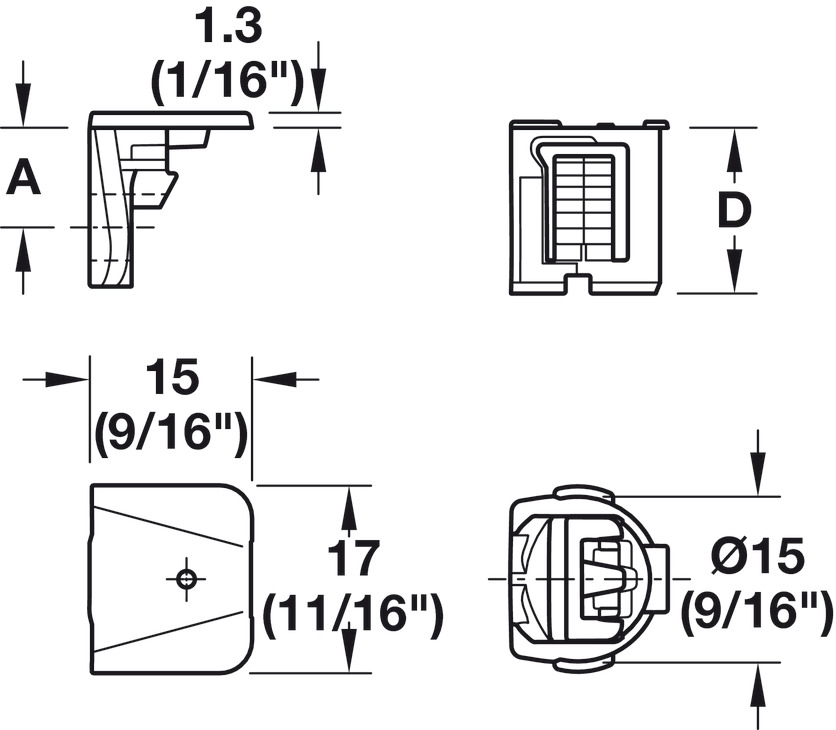

• Drill hole Ø:
• Support: 5 mm
• Boss insert: 15 mm
• Drilling depth: 13 mm +0.2 mm
• For wood thickness: =16 mm
• Material:
• Support: Zinc Alloy
• Boss insert: Plastic
• Finish: Nickel-Plated
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Euro screw, Häfele, Varianta, countersunk head, PZ, steel, fully threaded, for Ø 5 mm drill holes in wood: 012.14.908
