Hafele 263.56.000

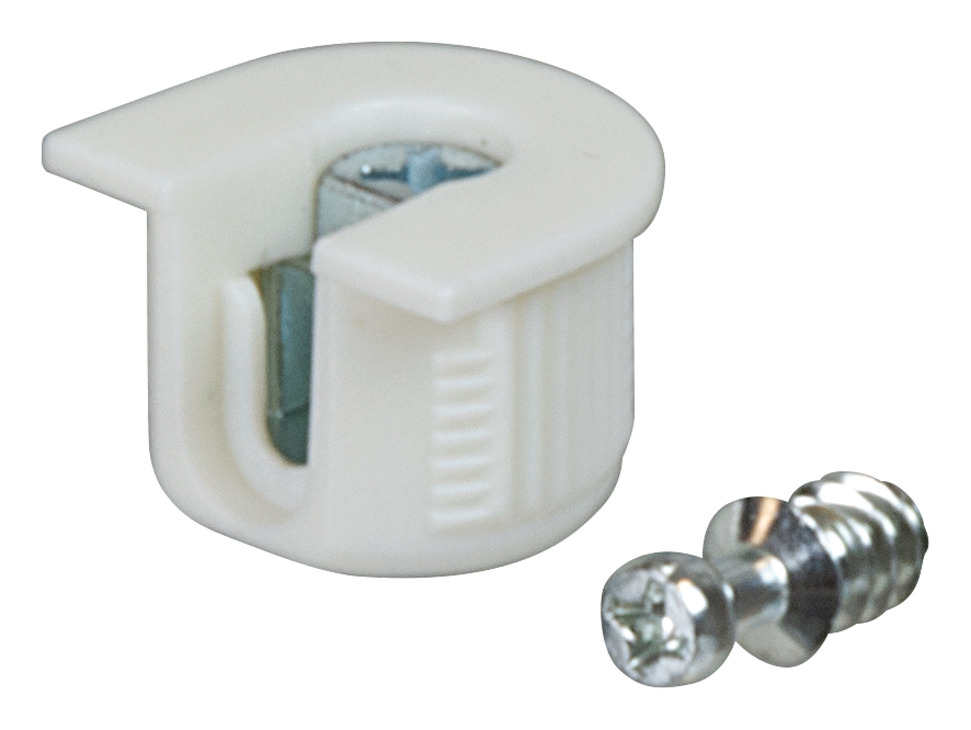

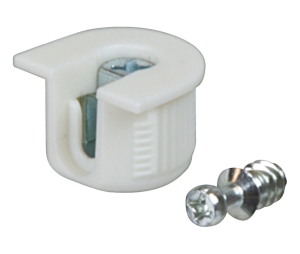

Name: Hafele 263.56.000 Connector Housing, with Ridge, with Tightening Element, for Wood Thickness from 3/4", Plastic/Zinc, White
Brand: Hafele
SKU: Hafele 263.56.000
Price: 8916.05 USD

Hafele 263.56.000 Connector Housing, with Ridge, with Tightening Element, for Wood Thickness from 3/4", Plastic/Zinc, White

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 263.56.000 Connector Housing, with Ridge, with Tightening Element, for Wood Thickness from 3/4", Plastic/Zinc, White

Price: $8,916.05 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 181000

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 263.56.000 Connector Housing, with Ridge, with Tightening Element, for Wood Thickness from 3/4", Plastic/Zinc, White

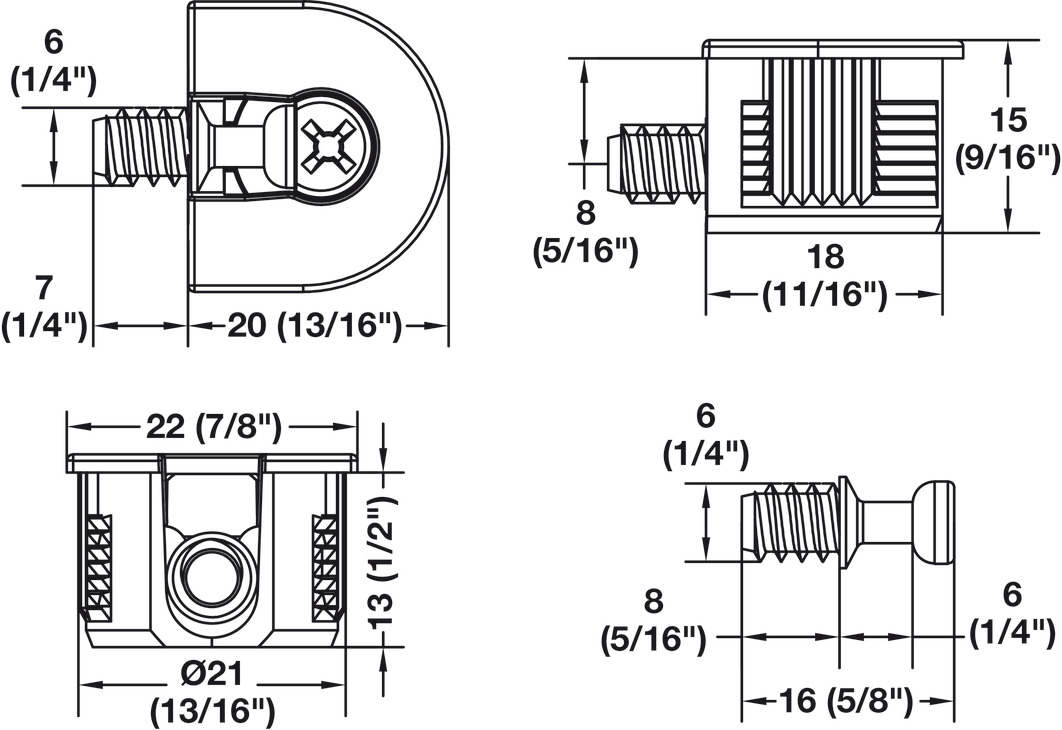

Connector Housing
Version: With rim, with tightening element, with ridge, without dowel
Drive: PH2 cross slot
For wood thickness: from 19 mm
Dim. A: 9.50 mm
Drilling depth: 12.7 mm +0.2 mm
Drill hole Ø housing: 20 mm
For panel material: Wood
Material: Plastic, Tightening element: Zinc alloy
Finish: White
Note: Bolt included 7.5mm thread length
Packing: 1000 each/box. Sold in full box quantities only.
Note: Unit of measure are Boxes. Each Box contains 1000 pieces. When you are purchasing a quantity of 1 you will get one box of 1000 pieces. We are unable to break open the box quantity, therefore we are unable to sell you this item in multiples other than 1000.
