Hafele 263.50.105
Hafele 263.50.105

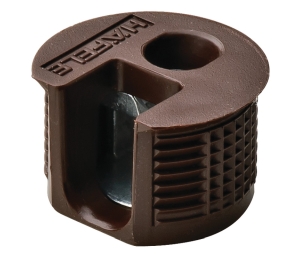

Hafele 263.50.105 Connector Housing, Rafix 20 Flush System, without Ridge, for Wood Thickness 3/4", Brown
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
0.43 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 189792
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net

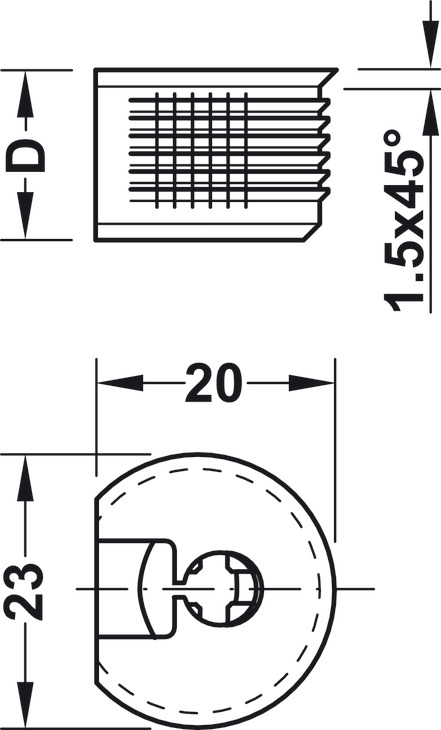

Product Description:

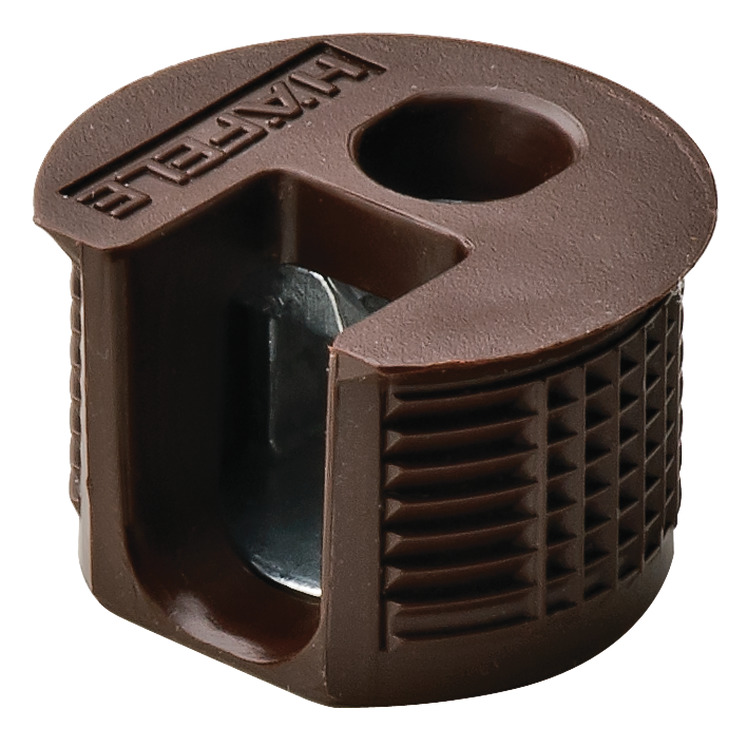

Hafele 263.50.105 Connector Housing, Rafix 20 Flush System, without Ridge, for Wood Thickness 3/4", Brown
Connector Housing
Rafix 20 Flush System
No projecting parts due to the countersunk rim on the housing

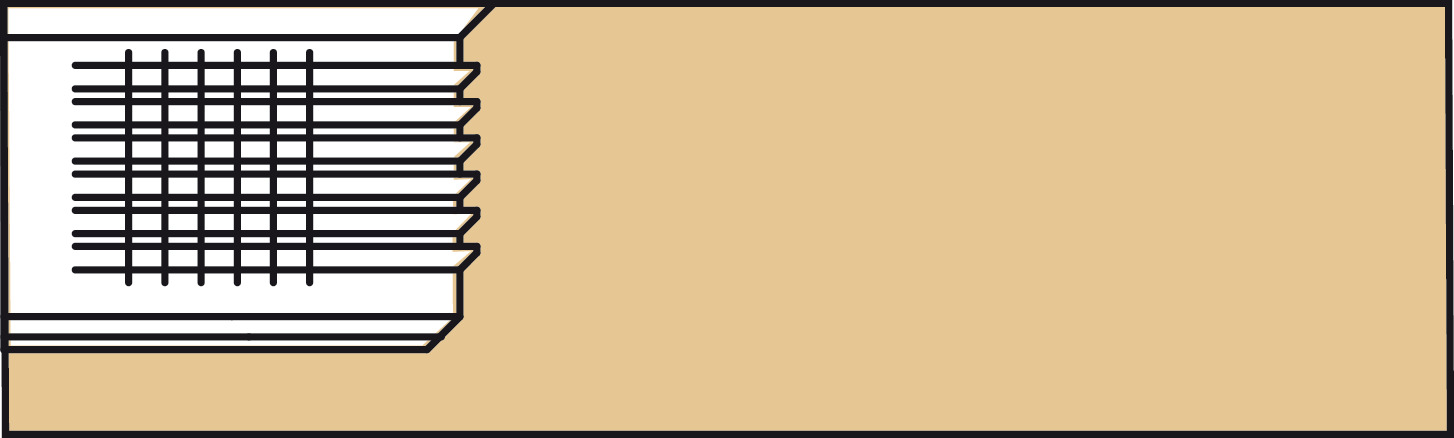

Housing is mounted flush to shelf
Panels can be stacked without spacers
Version: with rim, with tightening element, without ridge, without dowel, with countersunk rim
Drive: PZ2 cross slot

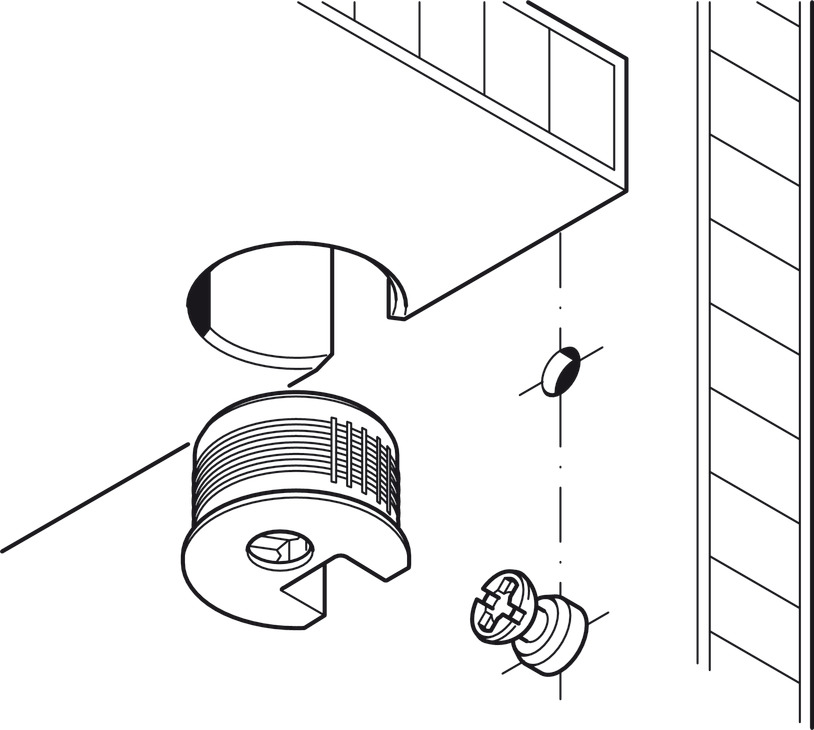

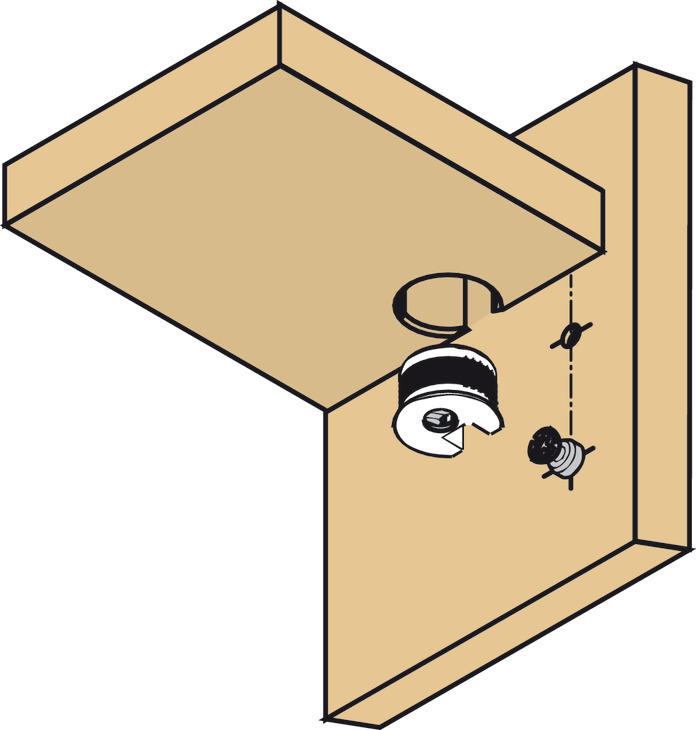

Installation: flush-mounted
For panel material: Wood
For wood thickness: 19 mm

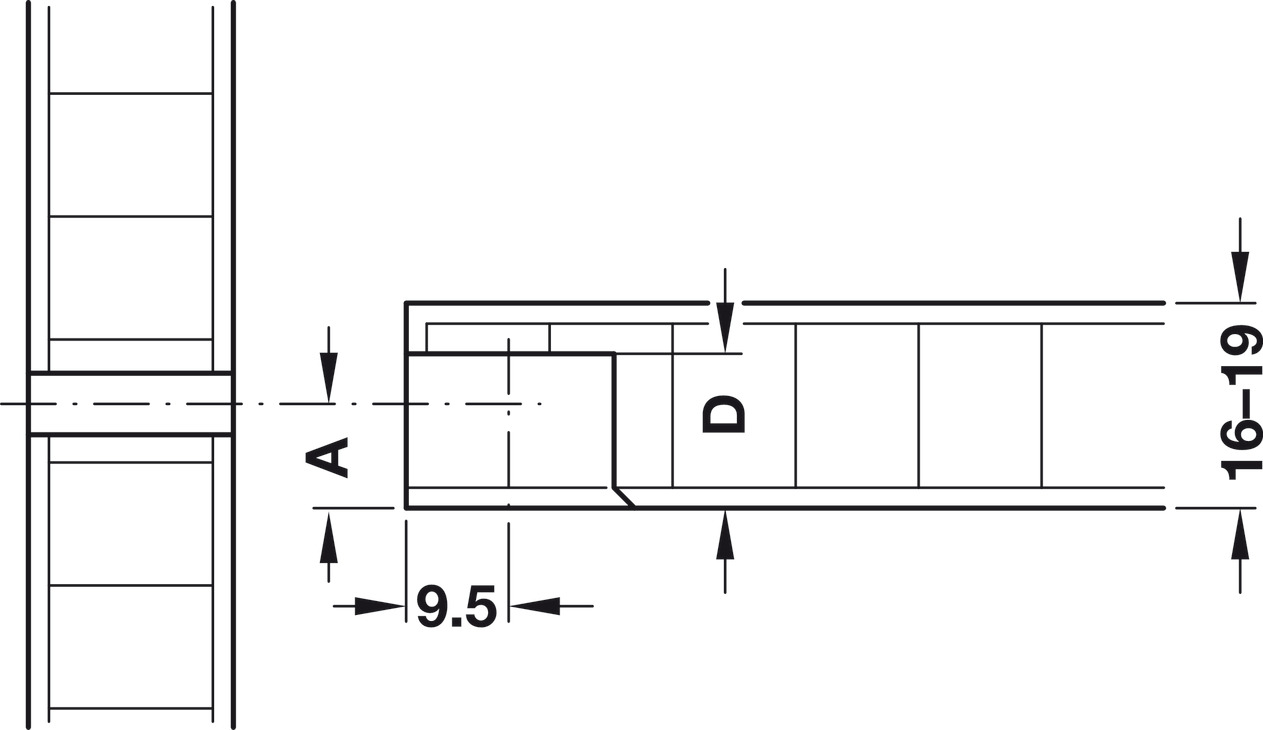

Dim. A: 9.5 mm

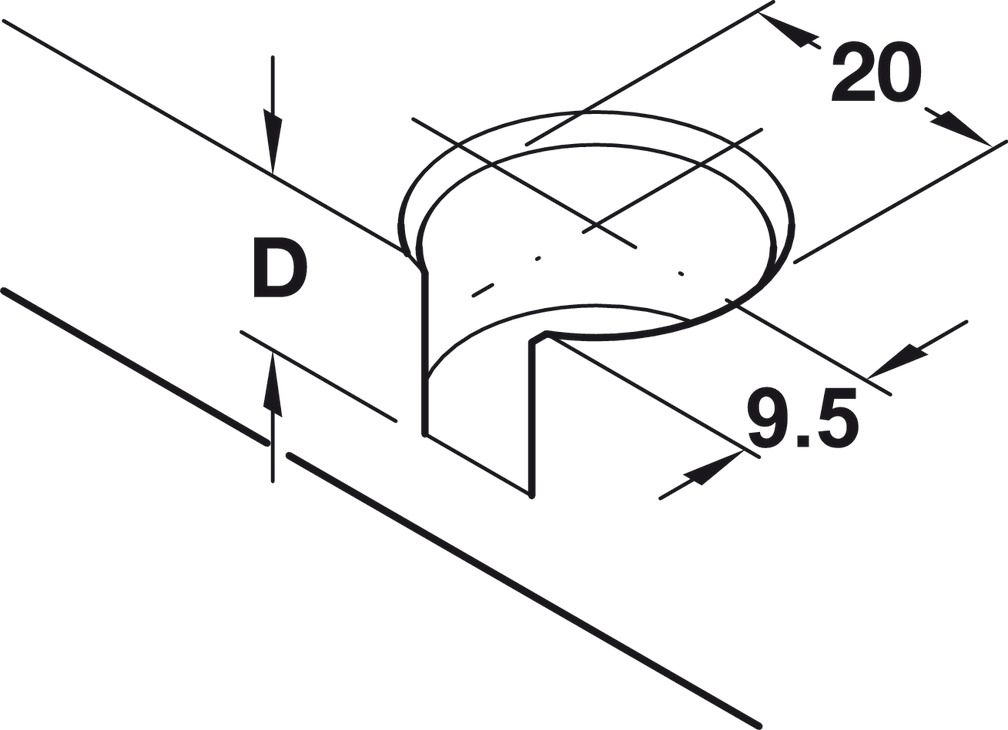

Drilling depth: 14.2 mm +0.2 mm

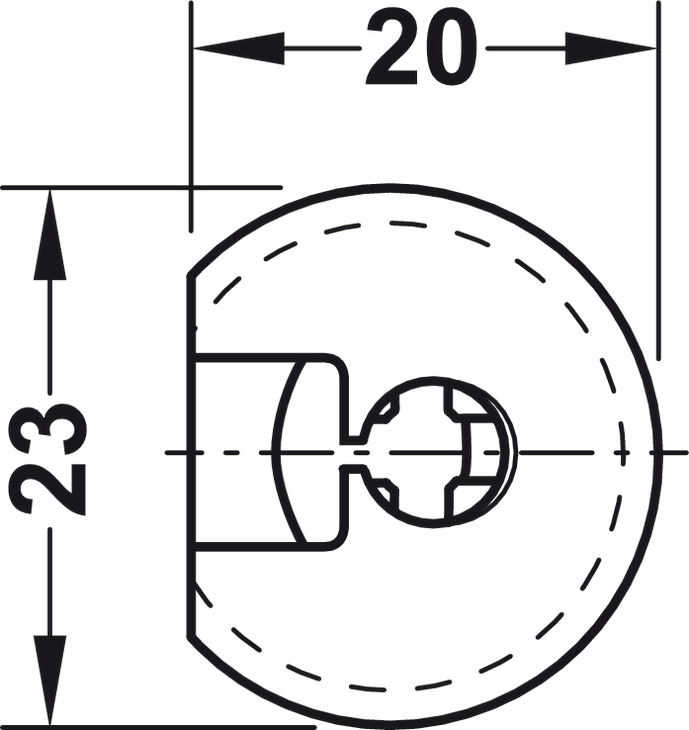

Drill hole Ø housing: 20 mm
Material:
Plastic
Tightening element: Zinc Alloy
Finish: Brown
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories:
Drill Bit, Flush Rafix:
001.24.309
,
001.24.327
,
001.24.337
,
001.24.340
,
001.24.341
,
001.24.342
Trim Cap, for Rafix 20 Flush:
263.59.130
,
263.59.430
,
263.59.730
Product Page
DWG Drawing
