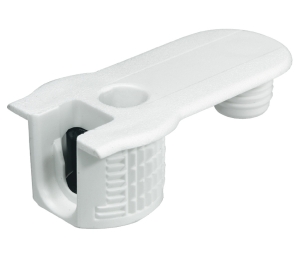

Name: Hafele 263.16.705 Connector Housing, Rafix 20 System, with Dowel, With tightening element, For wood thickness 19 mm, Plastic, White
Brand: Hafele
SKU: Hafele 263.16.705
Price: 0.63 USD

Hafele 263.16.705 Connector Housing, Rafix 20 System, with Dowel, With tightening element, For wood thickness 19 mm, Plastic, White

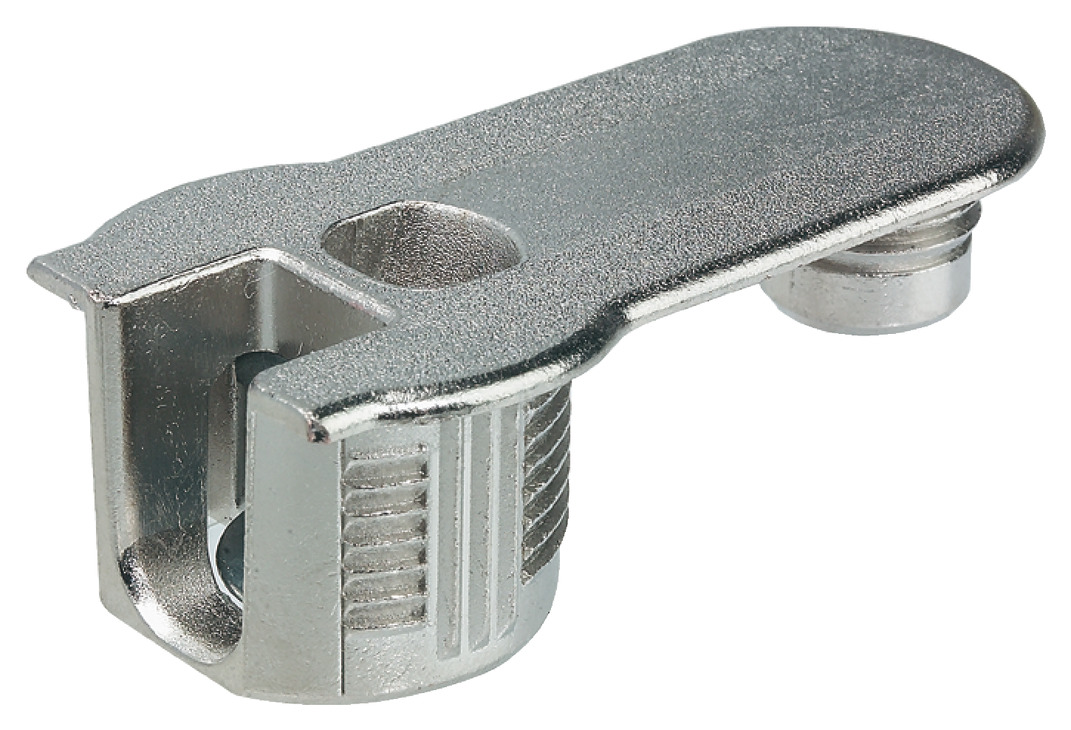

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 263.16.705 Connector Housing, Rafix 20 System, with Dowel, With tightening element, For wood thickness 19 mm, Plastic, White

Price: $0.63 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 62816

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 263.16.705 Connector Housing, Rafix 20 System, with Dowel, With tightening element, For wood thickness 19 mm, Plastic, White

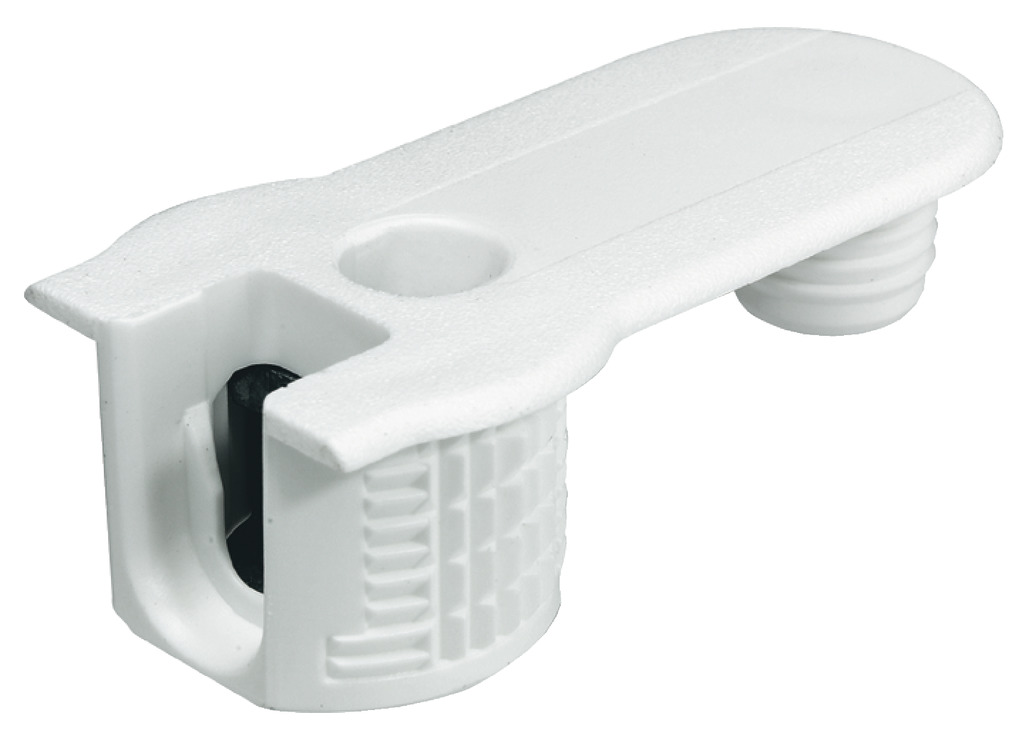

Connector Housing
Rafix 20 System
Version: With rim, with ridge, with tightening element, with dowel

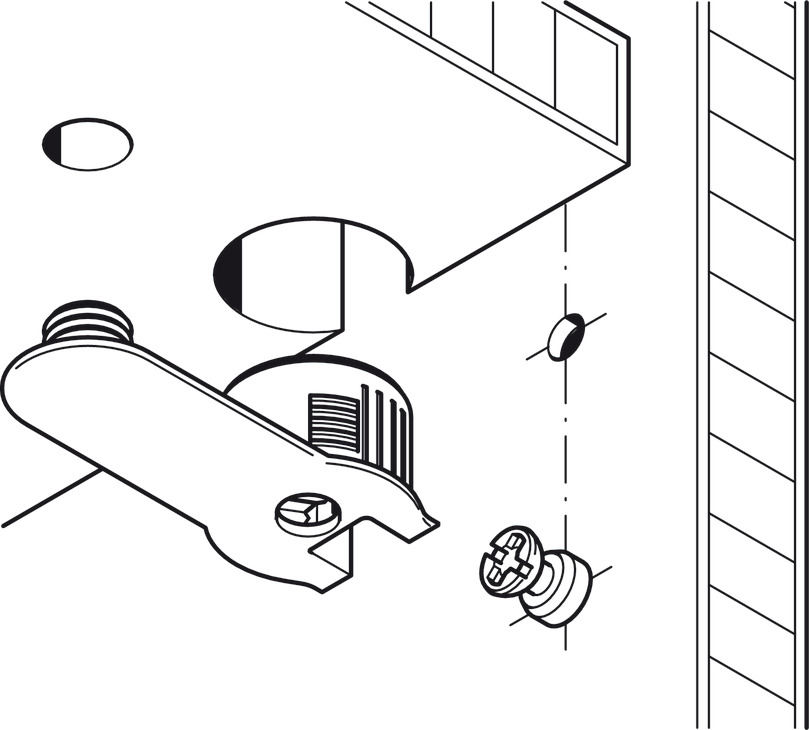

Installation: Flush-mounted

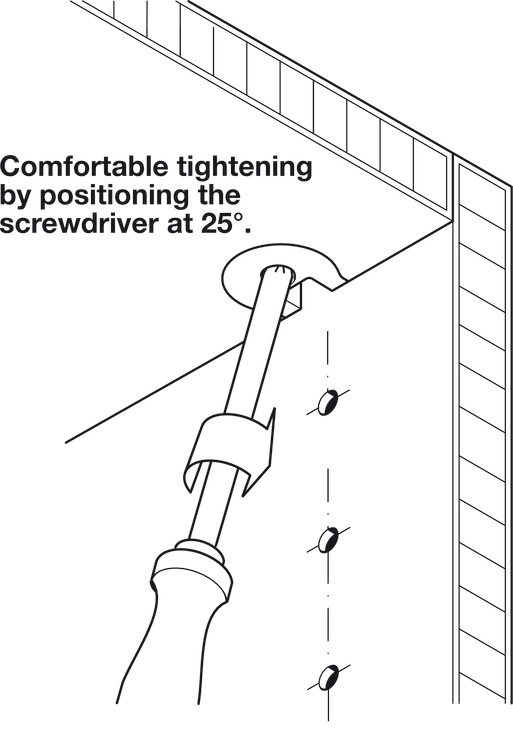

Drive: PZ2 cross slot
For wood thickness: 19 mm

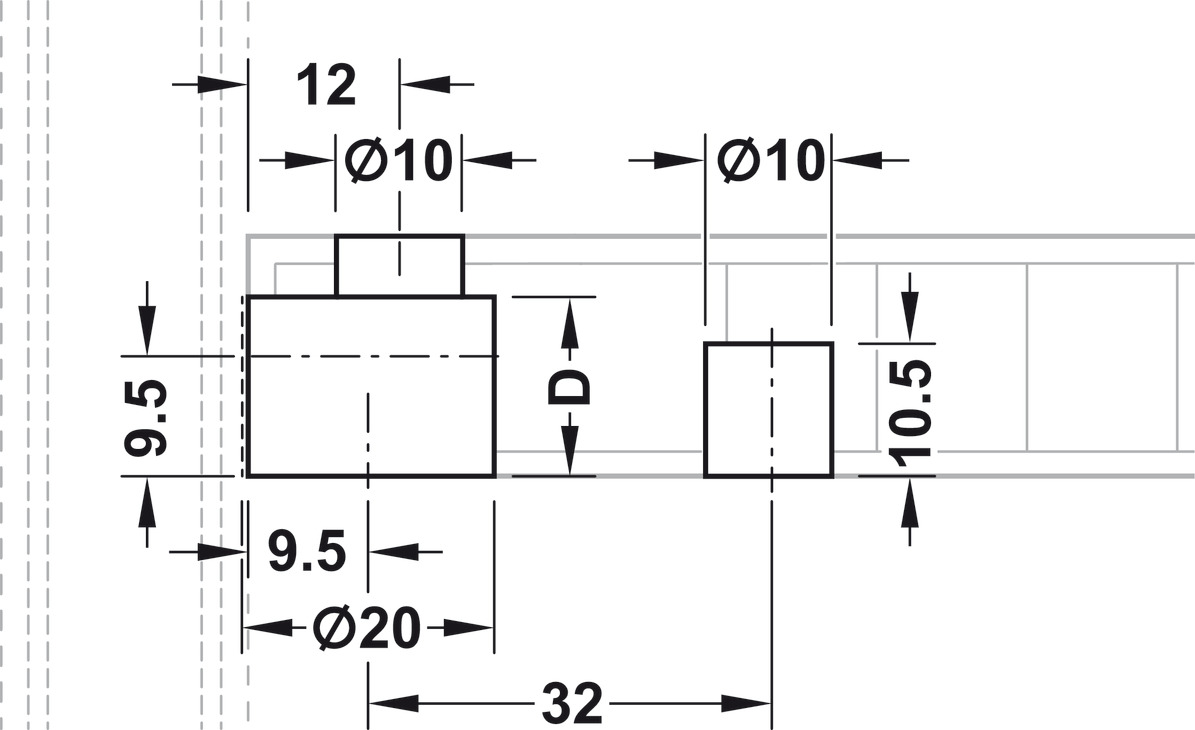

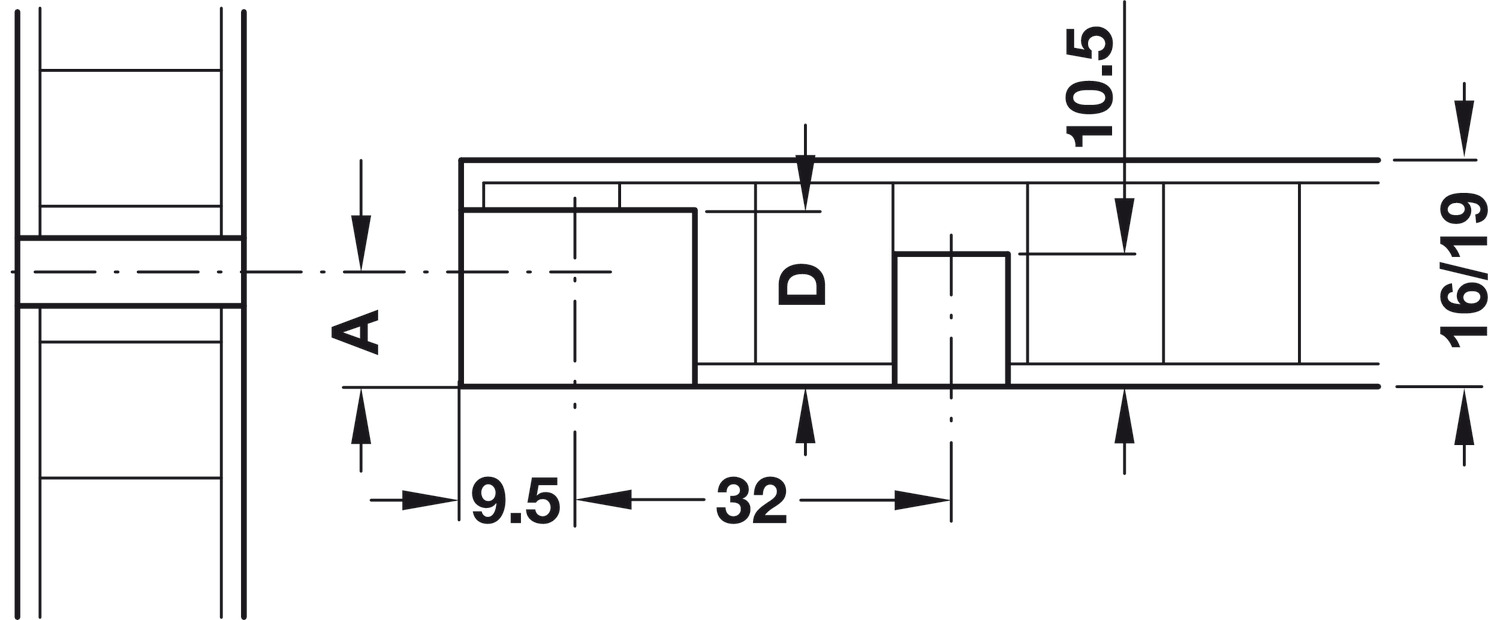

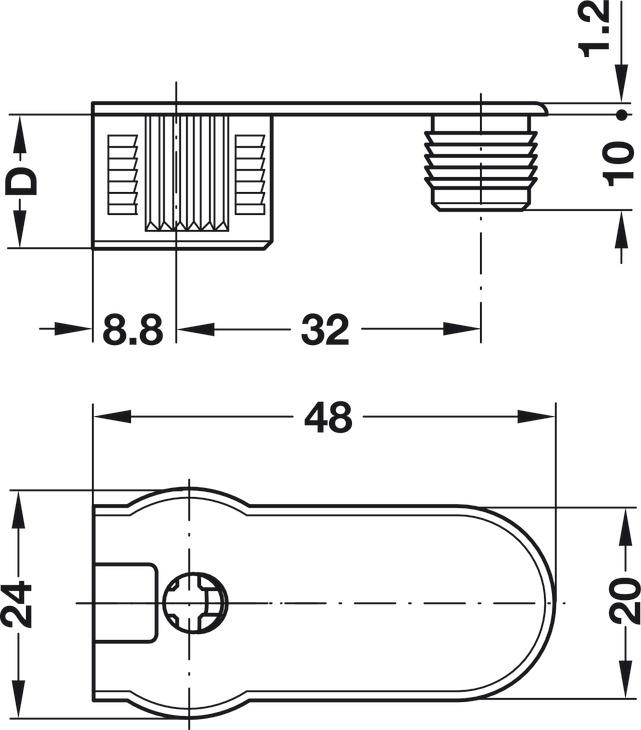

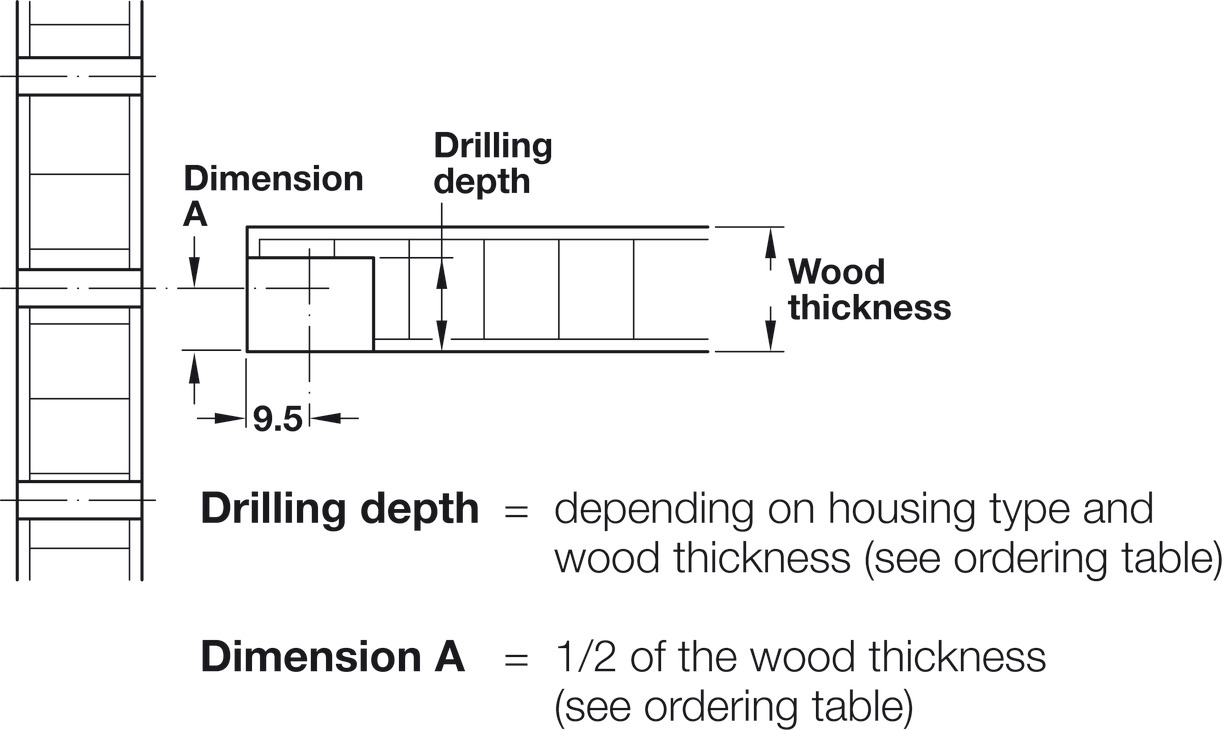

Dim. A: 9.5 mm

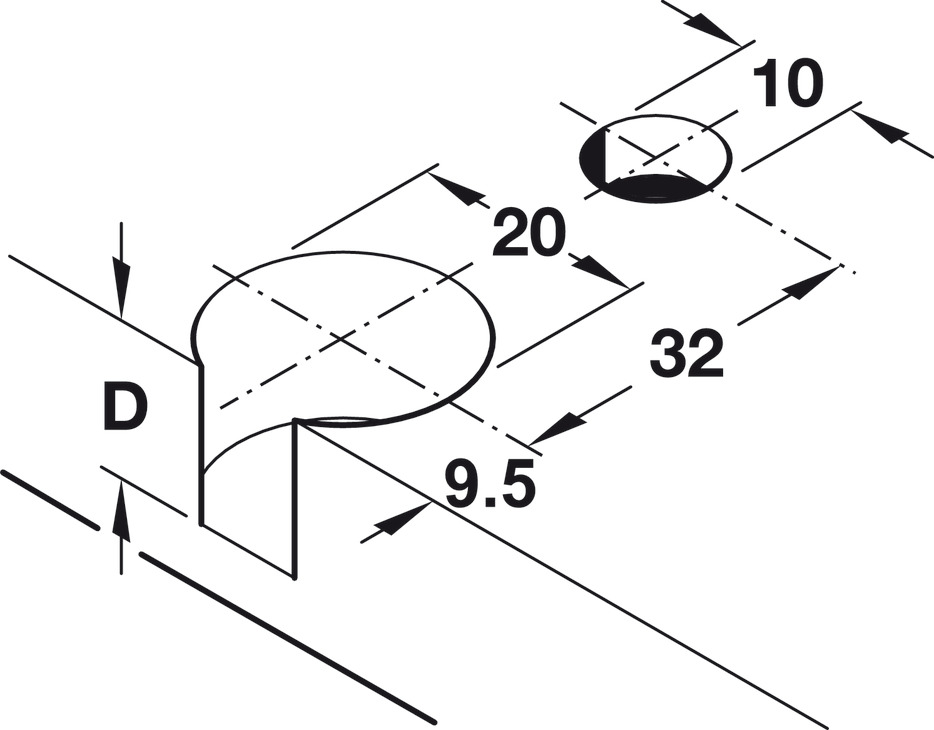

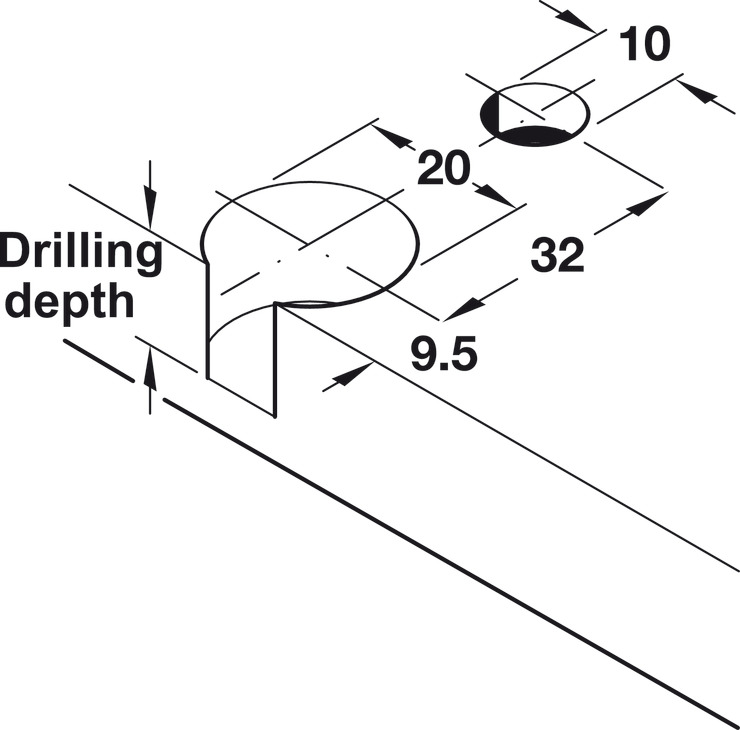

Drilling depth: 14.2 mm +0.2 mm
Drill hole Ø housing: 20 mm
For panel material: Wood
Material: Plastic, Tightening element: Zinc Alloy
Finish: White
Order reference: Other colors available on request.
The colours shown are similar to RAL colours and are as close as possible to the actual standard colour. The colour shades may vary slightly due to production reasons.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
