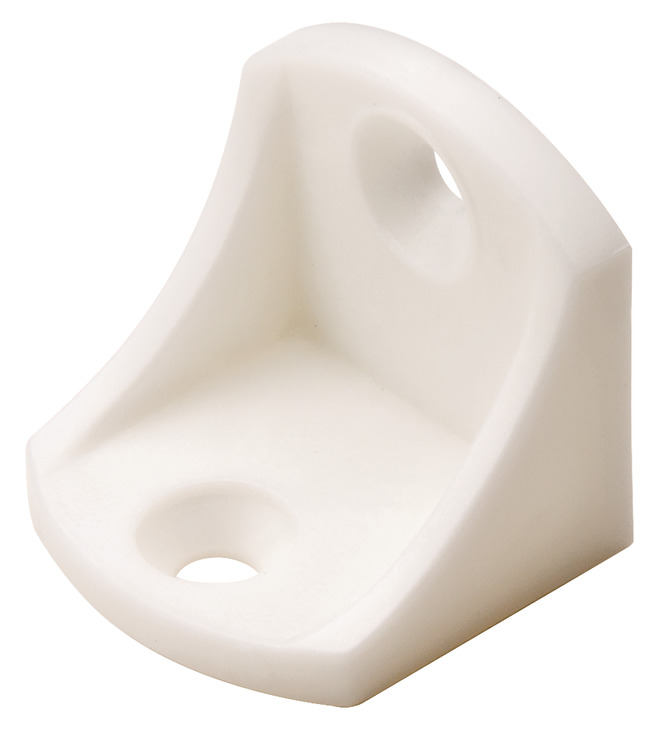

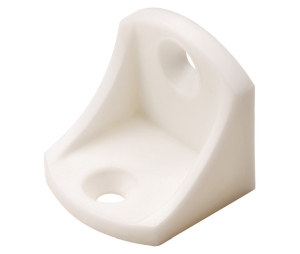

- Angle Bracket
- Area of application: For furniture assembly
- Use #8 pan head screw

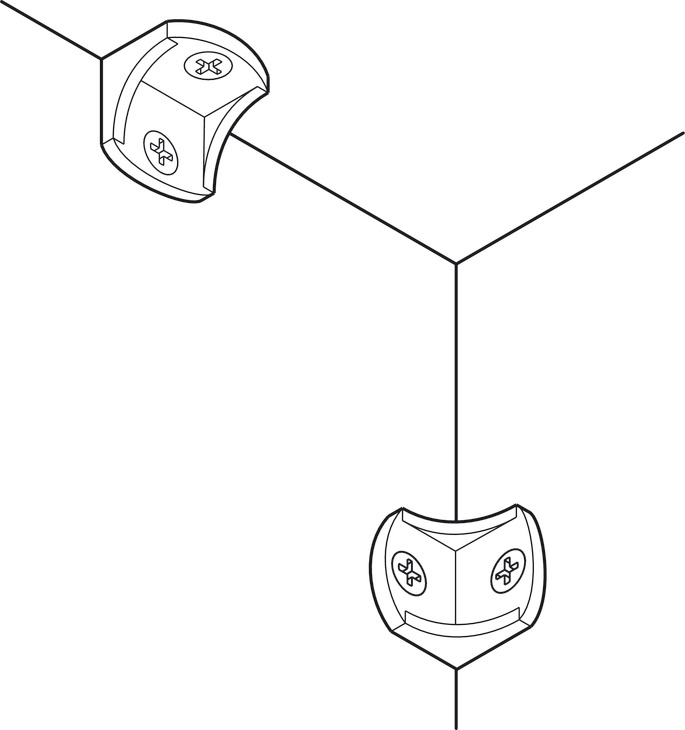

- These small, inconspicuous brackets allow easy screw mounting of various furniture components including back panels and rails. No boring is required due to surface mounting
- Leg length: (15/16" x 15/16") 23 mm x 23 mm
- Width: (15/16") 24 mm
- Material thickness: (1/8") 3.5 mm
- Material: Plastic
- Finish: White
- Packing & Sold as: Each.
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories: - Flat Countersunk Head, #2 Phillips Drive: 010.23.170, 010.23.171, 010.23.172, 010.23.173, 010.23.174, 010.23.175, 010.23.180, 010.23.181, 010.23.182, 010.23.183, 010.23.184, 010.23.185, 010.71.065, 010.71.066, 010.71.941, 010.71.943, 010.71.945, 010.71.946, 010.71.948, 010.71.950, 010.71.963, 010.71.965, 010.71.966
- Flat Countersunk Head, #2 Square Drive: 010.23.130, 010.23.131, 010.23.132, 010.23.133, 010.23.134, 010.23.135, 010.23.140, 010.23.141, 010.23.142, 010.23.143, 010.23.144, 010.23.145, 010.70.043, 010.70.045, 010.70.048, 010.70.049, 010.70.050, 010.70.066, 010.70.941, 010.70.943, 010.70.945, 010.70.946, 010.70.948, 010.70.949, 010.70.961, 010.70.963, 010.70.965, 010.70.966
- Zip-R Screw, Pan Head, #2 Phillips Drive: 010.83.041, 010.83.043, 010.83.045, 010.83.061, 010.83.063, 010.83.065, 010.83.066, 010.83.068, 010.83.069, 010.83.941, 010.83.943, 010.83.945, 010.83.946, 010.83.961, 010.83.963, 010.83.965, 010.83.966, 010.83.968, 010.83.969, 010.83.970, 010.83.971, 015.85.990, 015.85.991
- Flat Countersunk Head with Uni-Drive, Zinc-Plated: 015.80.047, 015.80.051, 015.80.140, 015.80.141, 015.80.142, 015.80.143, 015.80.144, 015.80.145, 015.80.146, 015.80.147, 015.80.148, 015.80.149, 015.80.150, 015.80.151, 015.80.152, 015.80.153, 015.80.154, 015.80.155, 015.80.156, 015.80.157, 015.80.158, 015.80.159
|
