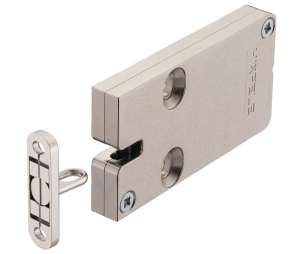

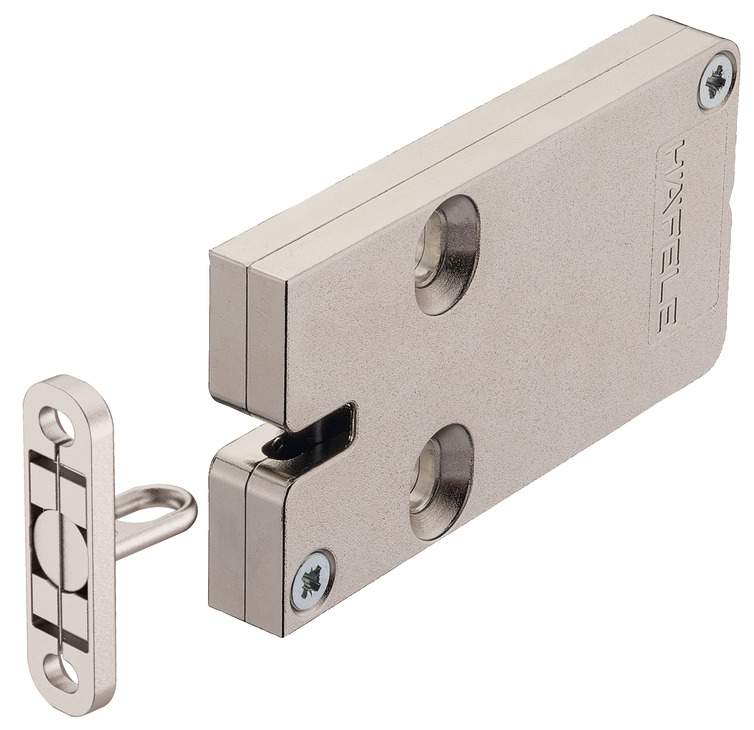

Hafele 237.59.001

• Furniture lock
• Häfele Dialock EFL 3C
• With separate feedback contact
• vertical tolerance compensation
• Version:
  • Electromotive locking
  • EFL 3: self-adjusting locking component with 3D tolerance compensation, lateral locking plate
  • EFL 3C: Locking component with magnet, transverse locking plate, flat design 12 mm (installation next to drawer extension possible, distance from cabinet side panel >12 mm)
• Optional, integrated contact for door status indication EFL 3C
• Electric motor locking, cannot be influenced magnetically
• Flat design for variable and integrated installation in furniture
• Can be mounted on both sides
• Locking component can be mounted on front or at side
• Anti-twist connection plug
• Material: Zinc
• Finish: Nickel Plated
• Order reference: Please order CC 200 connection cable and marking gauge for EFL 3 / EFL 3C separately.
• Supplied with:
  • 1 FT 200 furniture terminal
  • 1 mains lead
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Connecting cable, CC 200, Dialock: 237.59.020, 237.59.021, 237.59.022, 237.59.023, 237.59.024
• Adapter Cable, EFL 3/EFL 3C DG2: 237.56.335
