Hafele 237.58.130

Name: Hafele 237.58.130 Antenna, for Lock Controller, 39-3/8" Cable Length
Brand: Hafele
SKU: Hafele 237.58.130
Price: 60.41 USD

Hafele 237.58.130 Antenna, for Lock Controller, 39-3/8" Cable Length

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $60.41 USD

Comments (Optional)

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 95

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

Sales

Technical Support

Product Description:

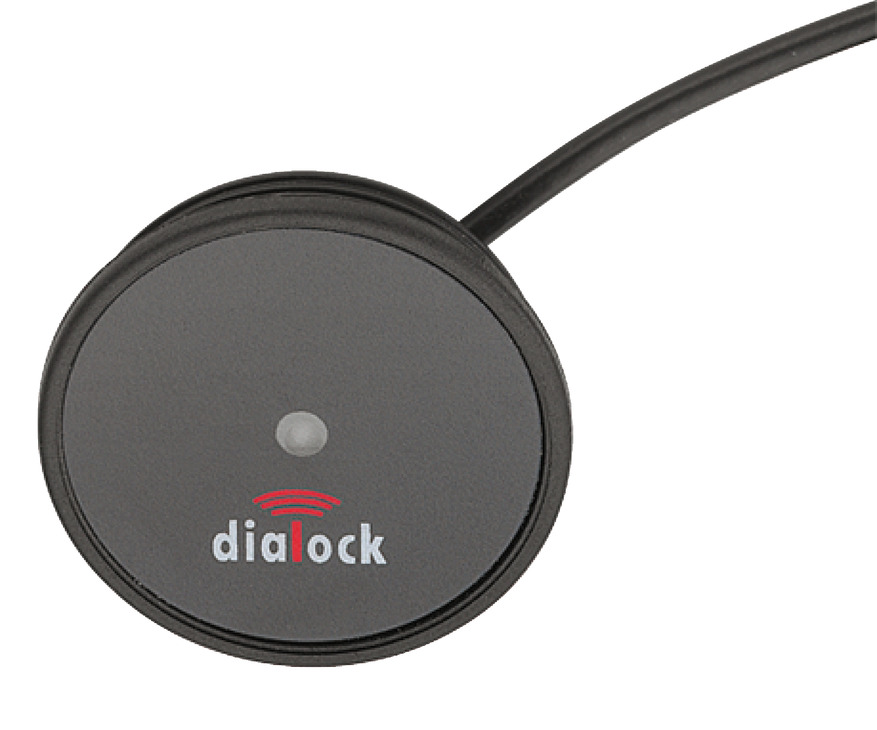

Hafele 237.58.130 Antenna, for Lock Controller, 39-3/8" Cable Length

Antenna
For Lock Controller

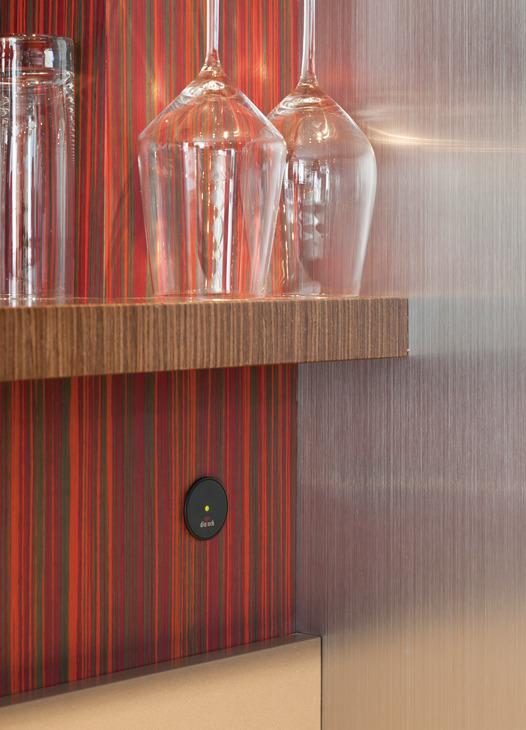

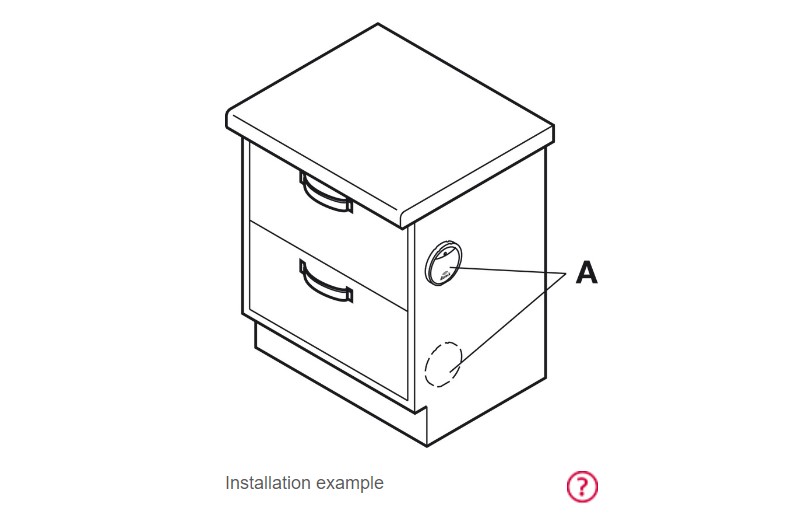

Area of application: For indoor use: For installation in furniture

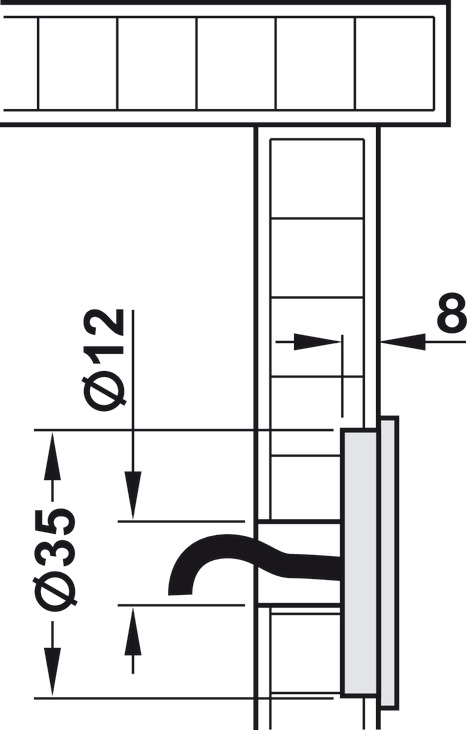

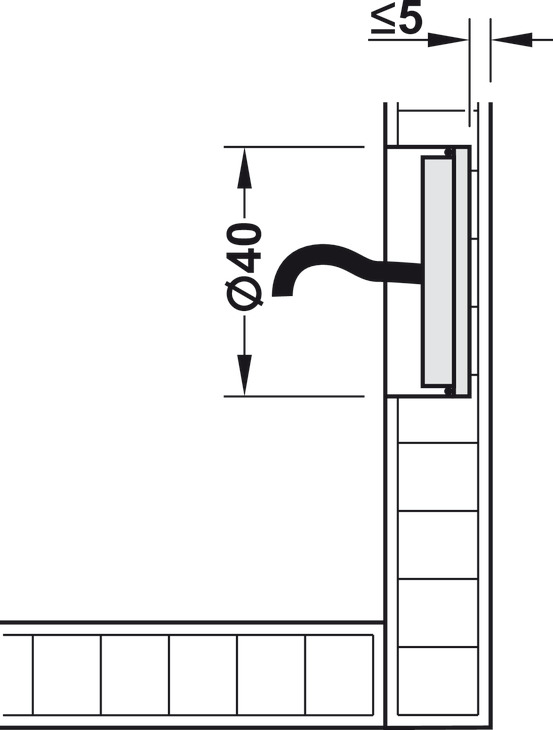

Installation: For recess mounting in a 35/40 mm drill hole, fit antenna as closely as possible to the front (antenna range).

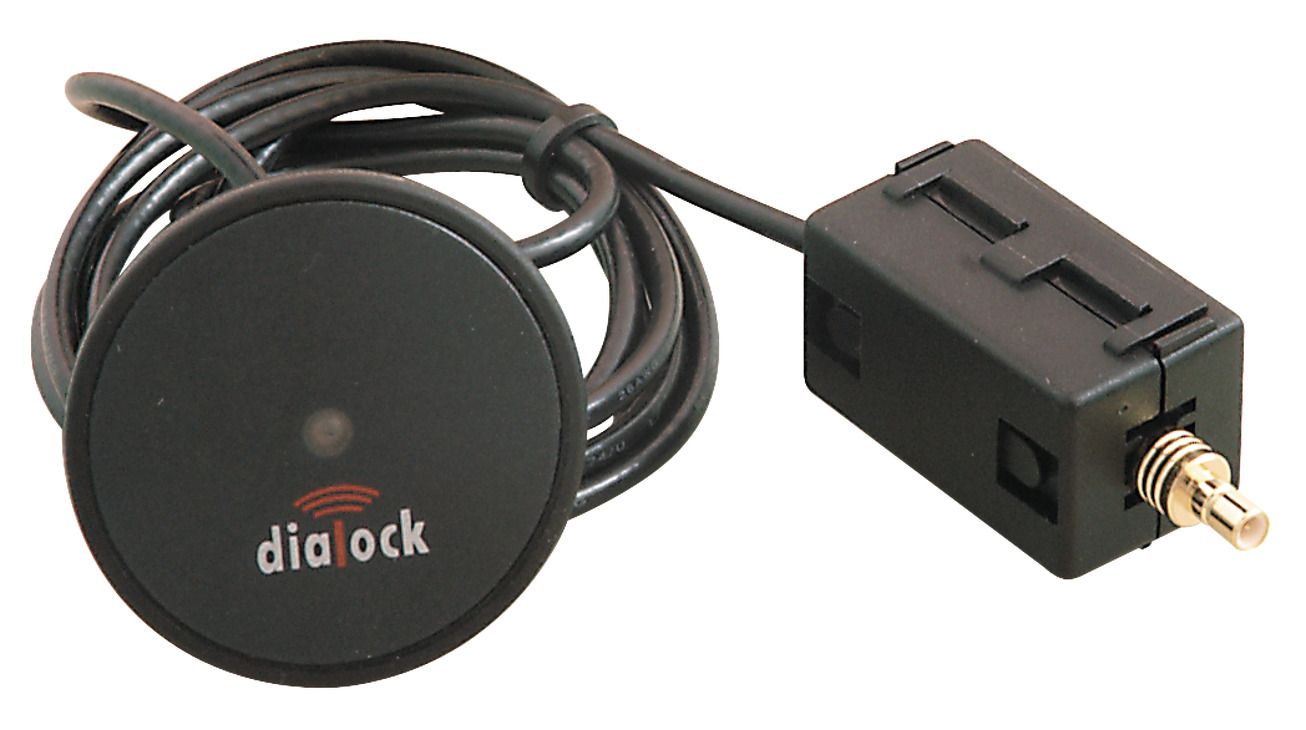

Version: With connecting cable and coaxial plug
Degree of protection: IP67
Cable length: (39-3/8") 1000 mm
Additional information:
- Reader range: Approx. 25 mm with FT 120 and FAN 100 antenna (key FOB).
- The range may be smaller due to environmental reasons, for example if metal materials or magnetic fields (power supply line) are in the near proximity.
- The FAN 100 antenna must not be installed behind or on metal surfaces or behind mirrors.
- Minimum distance between 2 antennas: 250 mm
- The antenna can be connected directly to the output port of the FT 120 furniture terminal.
- The supplied ferrite bead must be installed on the antenna lead at a distance of max. 10 cm from the FT 120.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
