Hafele 237.42.109
Hafele 237.42.109

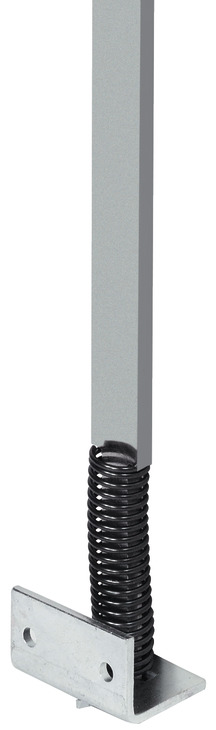

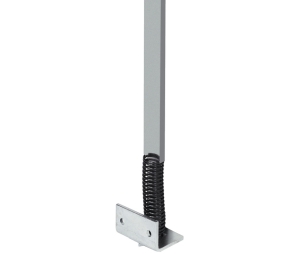

Hafele 237.42.109 Vertical Lock Bar, with Attached Spring and Lock Bar, 23 5/8" Length, for Screw Fixing, Steel, Bright
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
16.56 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 18
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 237.42.109 Vertical Lock Bar, with Attached Spring and Lock Bar, 23 5/8" Length, for Screw Fixing, Steel, Bright
Vertical Lock Bar
Built-In Gang Locking System
Version: With attached spring and bar guide
Area of application: For for locking of several drawers
Installation: for screw fixing, with height adjustable spring catches, rod guides for locking bars
Hooks are adjustable on the locking bar enabling them to be individually adapted to drawers of varying heights
Movement of the locking bar is affected by a roller, mounted at the upper end of the bar and actuated by a wedge-shaped
Installation depth max. (23 5/8") 600 mm
Material: Steel
Finish: Bright
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Required products:
Connecting Piece, for Push-Button Locks:
234.58.997
Roller Clamp, for Locking Bar:
237.42.010
Drawer Component, for Spring Catch:
237.42.038
Bar Guide, for Locking Bar:
237.42.029
Optional accessories:
Chipboard Screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized:
015.71.526
,
015.71.866
,
015.71.875
,
015.72.078
,
015.72.130
