Hafele 234.67.660

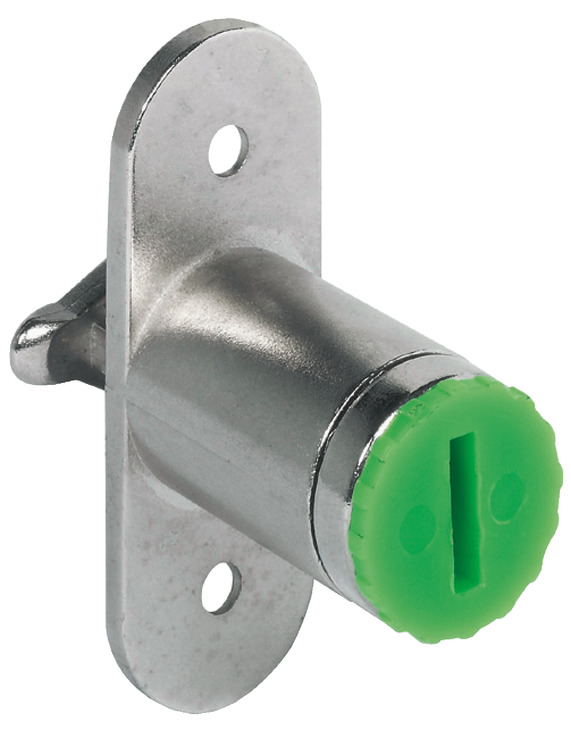

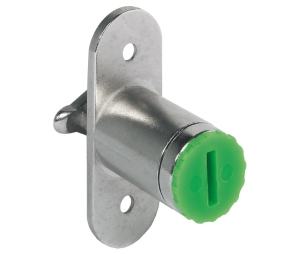

Hafele 234.67.660 Sliding Door Lock, Symo 3000, B (left) Closure Direction, 180° Closure Travel, Zinc, Nickel Plated

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stock Alert

This item is discontinued and is kept in the database for informational purposes only.

Sales

Technical Support

Product Description:

Hafele 234.67.660 Sliding Door Lock, Symo 3000, B (left) Closure Direction, 180° Closure Travel, Zinc, Nickel Plated

Sliding Door Lock
Symo 3000

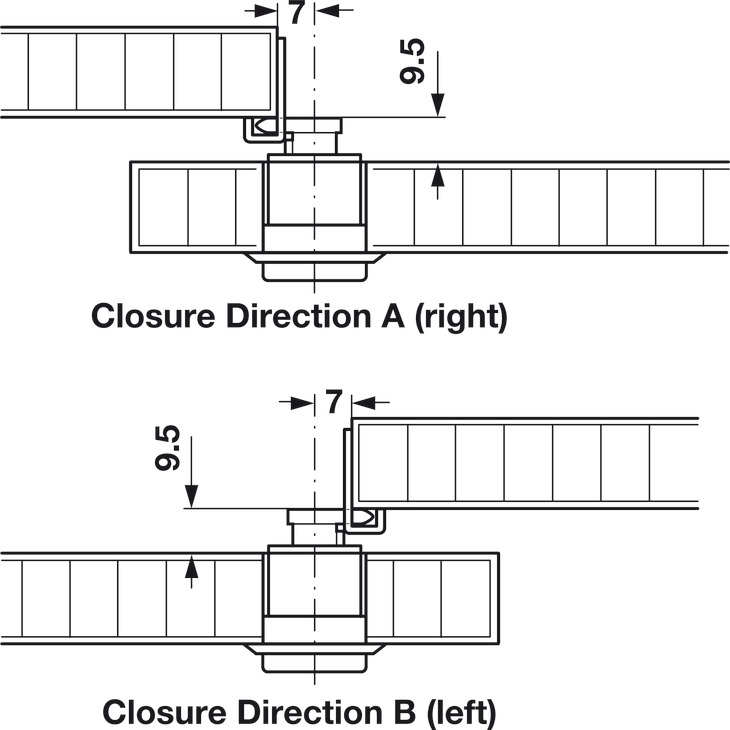

Closure direction: B (left)
Area of application: For cylinder cores that are inserted from the front on-site
Cylinder shape: prepared for round cylinder
Installation: Screw-mounted
Without Key
Closure travel: 180°
Cylinder housing length: (1") 26 mm
Material: Zinc alloy
Finish: Nickel plated
Order reference: Only use Premium 20 cylinder cores with restricted rotation and direction when using pin tumbler cylinder removable cores.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

Flat Head Screw, Hospa, Countersunk head, PZ, fully threaded: 015.31.522, 015.31.540, 015.31.675
Angled Striking Plate, for Push and Turn Lock, Symo 3000: 239.01.910
Plate-Cylinder Removable Core, Keyed Alike, Symo 3000: 210.40.606, 210.40.607, 210.40.608, 210.40.609, 210.40.610
Master Key, for Plate-Cylinders/Cut Key: 210.11.001
STW Pin-Tumbler Cylinder Removable Core, Keyed Different: 210.45.600
STW Pin-Tumbler Cylinder Removable Core, Keyed Alike: 210.45.601, 210.45.602, 210.45.603, 210.45.604, 210.45.605
