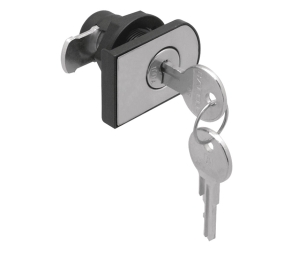

Hafele 233.17.700 Glass Door Lock, Vertical Installation, Timberline - Modular Removable Core Locking System, Nylon/Brass-Plated/Plastic/Steel, Polished Nickel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
27.58 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 10
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

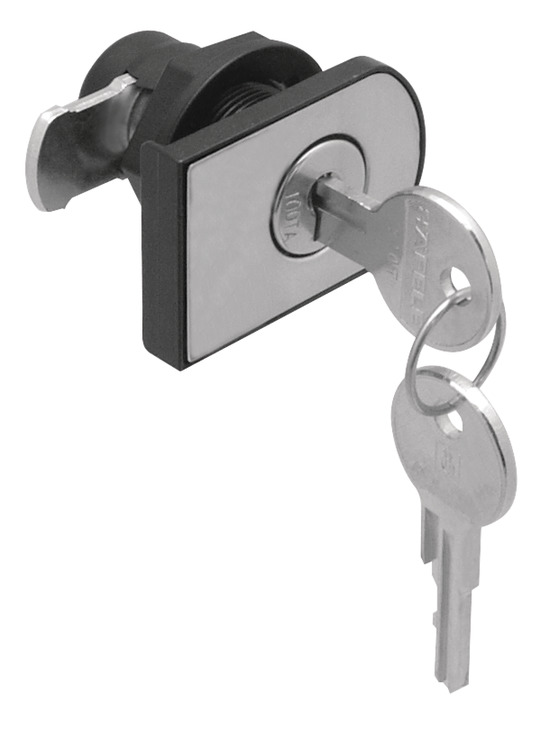

Hafele 233.17.700 Glass Door Lock, Vertical Installation, Timberline - Modular Removable Core Locking System, Nylon/Brass-Plated/Plastic/Steel, Polished Nickel
Glass Door Lock
Version: With straight locking cam

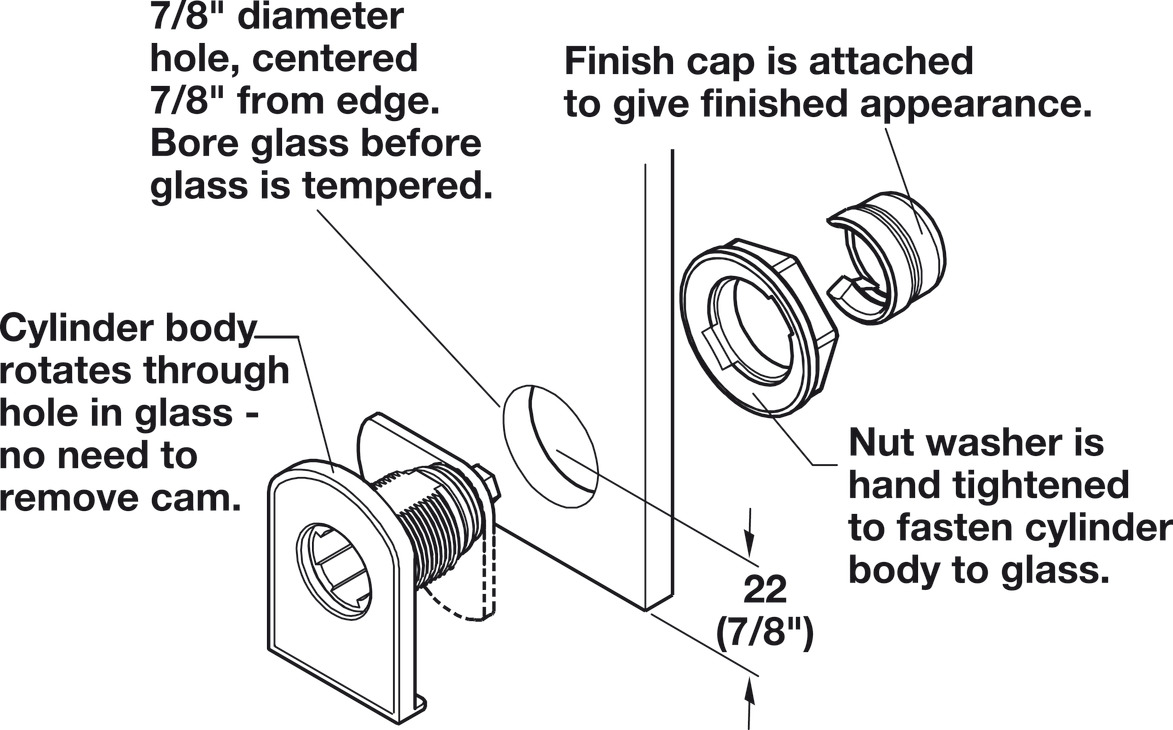

Installation:
Unique retainer nut allows secure tightening by hand
Two piece design for quick mounting - user does not need to assemble cam

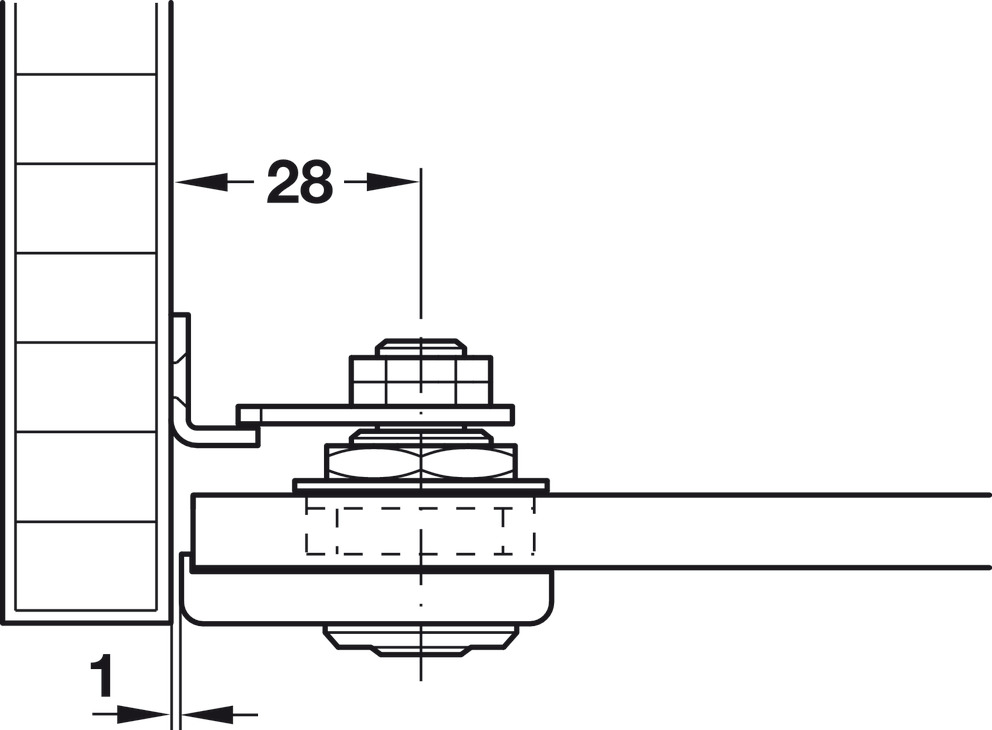

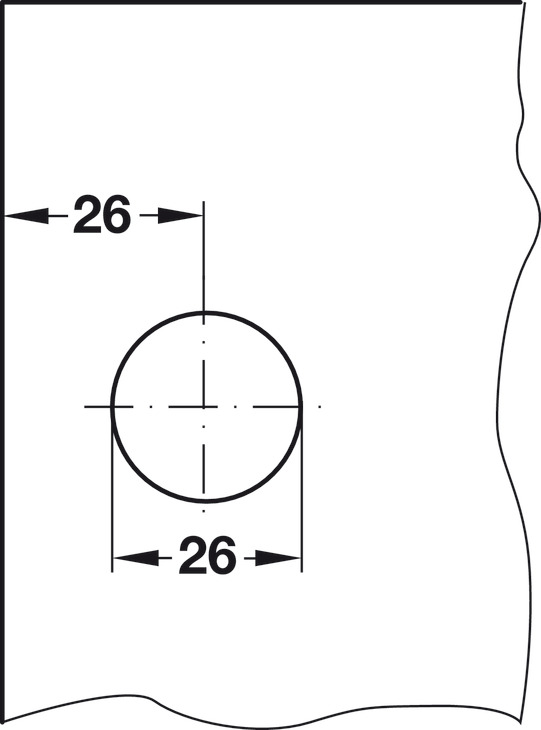

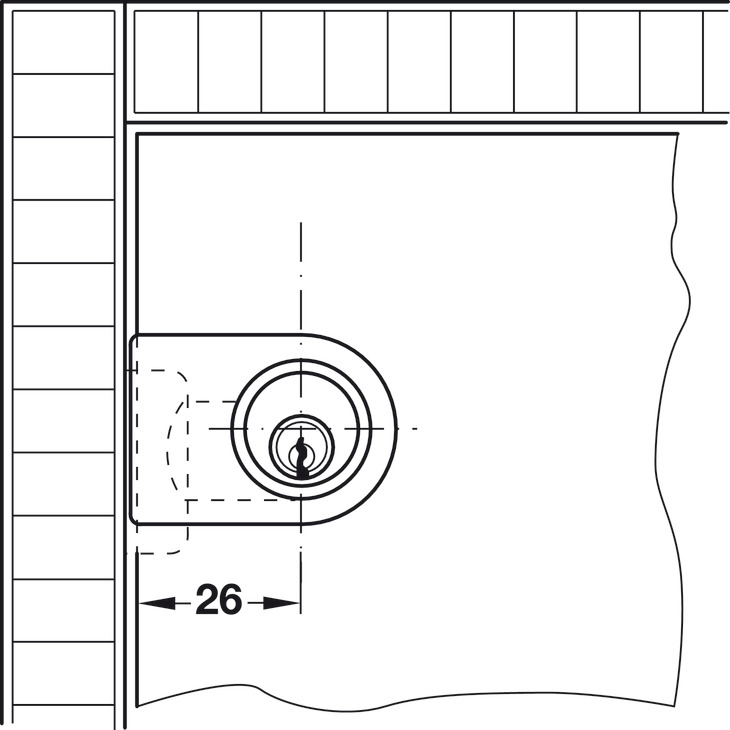

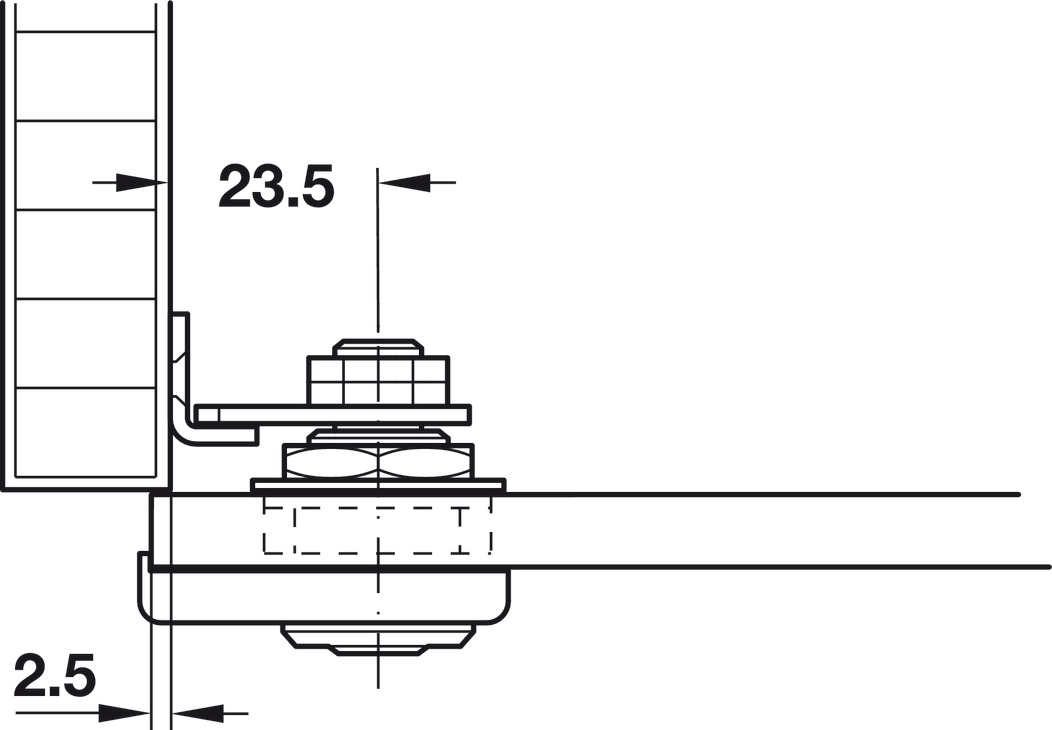

Installation reference:
Small high quality appearance
Fully cushioned to avoid glass damage
Neoprene gasket on front surface
Plastic washer on back surface
Finish cap provides improved appearance
For glass thickness: = 9.5 mm (3/8")

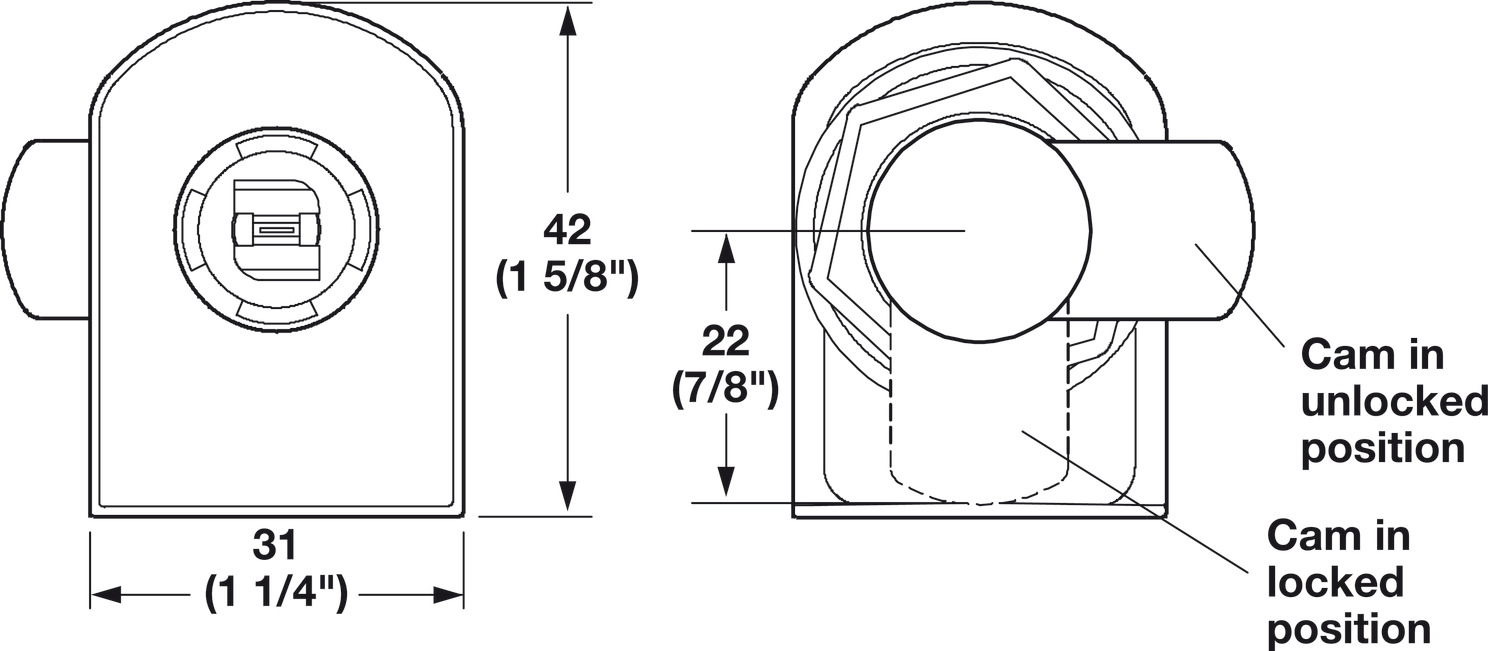

Closure travel: 90° (reversible)
Type of locking: With 5 pin tumblers
Material:
Outer body: Nylon
Face plate: Brass-plated
Finish cap: Plastic
Lever: Steel
Finish: Polished nickel
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
