Hafele 231.98.110

Name: Hafele 231.98.110 PIN Code Lock, Advanced Security, Latch Bolt, Single Use Mode, Steel/Zinc Alloy, Black/Bright Nickel
Brand: Hafele
SKU: Hafele 231.98.110
Price: 275.66 USD

Hafele 231.98.110 PIN Code Lock, Advanced Security, Latch Bolt, Single Use Mode, Steel/Zinc Alloy, Black/Bright Nickel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 231.98.110 PIN Code Lock, Advanced Security, Latch Bolt, Single Use Mode, Steel/Zinc Alloy, Black/Bright Nickel

Price: $275.66 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

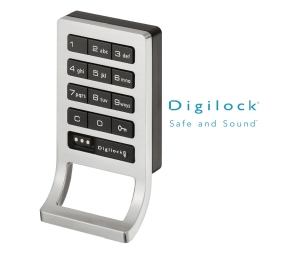

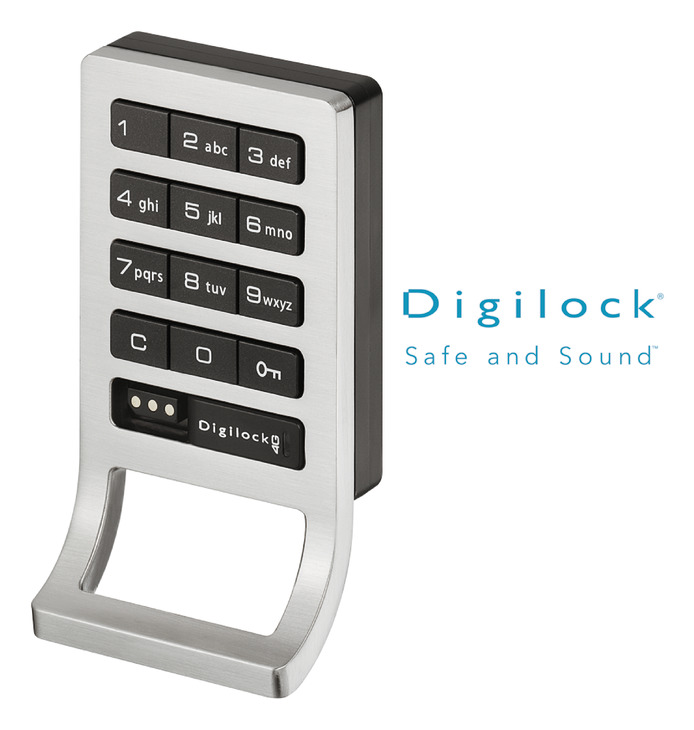

Hafele 231.98.110 PIN Code Lock, Advanced Security, Latch Bolt, Single Use Mode, Steel/Zinc Alloy, Black/Bright Nickel

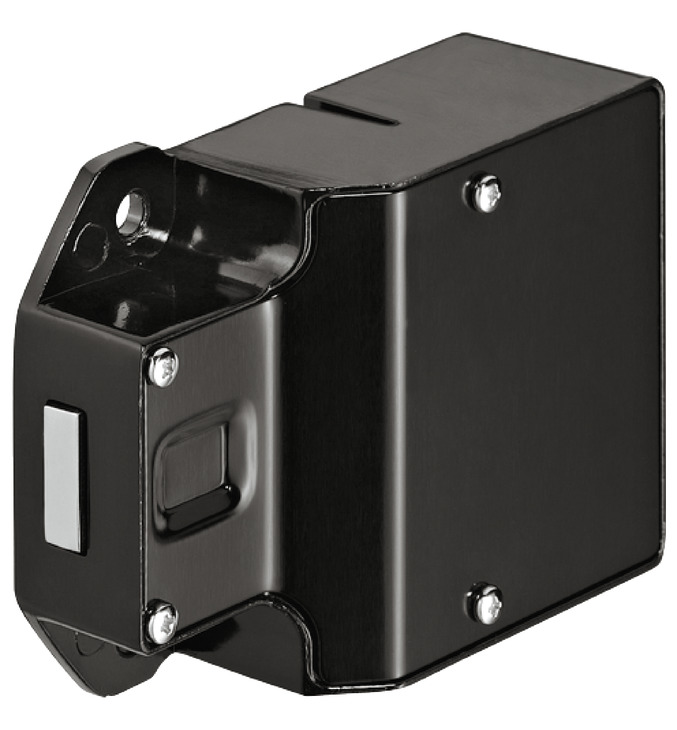

PIN Code Lock
Locker types: Latchbolt lock, PIN code lock
Version: Single use, latch bolt
Operation modes: Regular-user mode "Fixed locker allocation"
Advanced security
ADA compliant
Visual and acoustic occupancy indicators with low battery alarm
Choice of locking with individually selected code or permanently assigned code
Data-driven technical data table: 2305
Application: For lockers, dressing room cabinets with doors made from wood

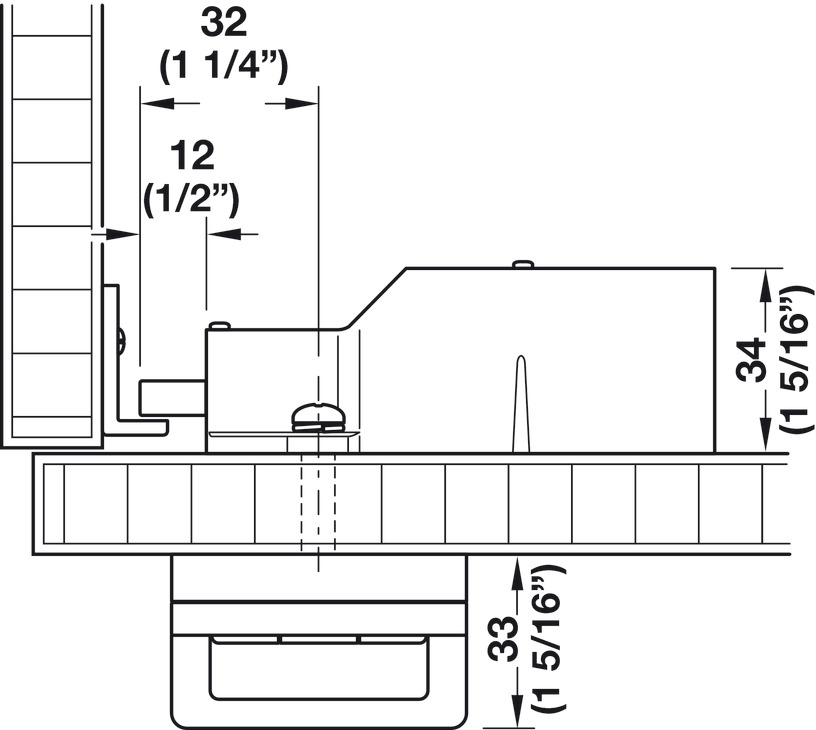

For door thickness: 17.5 - 21.7 mm (11/16" - 7/8")
Functionality:
- Locking and unlocking with freely selectable PIN code
- Optical (red LED flashes when locked) and acoustic (during locking action) occupancy indicator, with tamper resistance
- Alarm when battery is low (external voltage supply possible with master key)
- Locking with individual 4-digit code for every individual locking action (free choice of locker) or permanently allocated 4-digit code for all locking actions (fixed locker allocation)
Mounting: Left hand or right hand

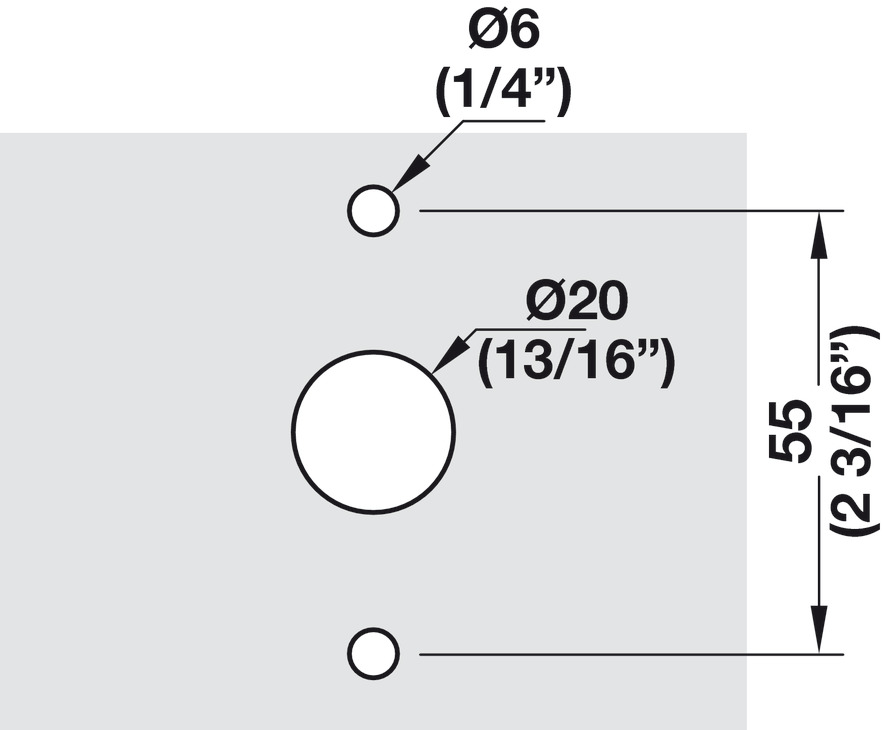

Installation: For screw fixing

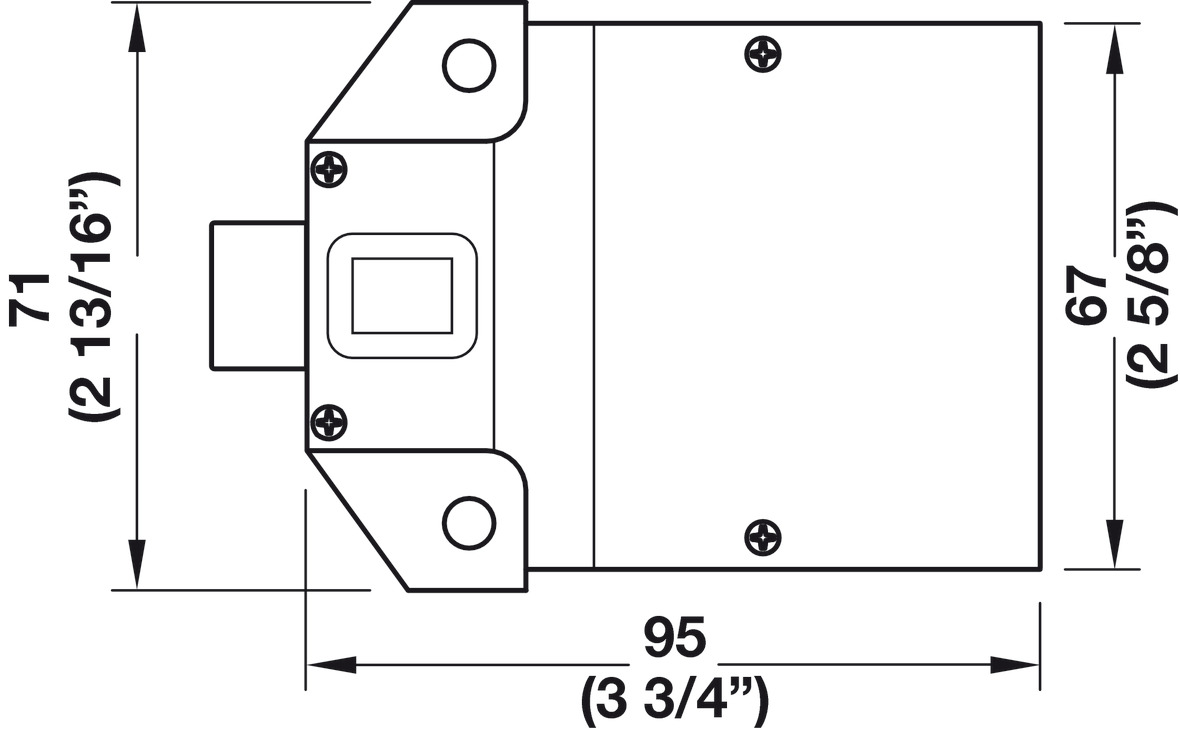

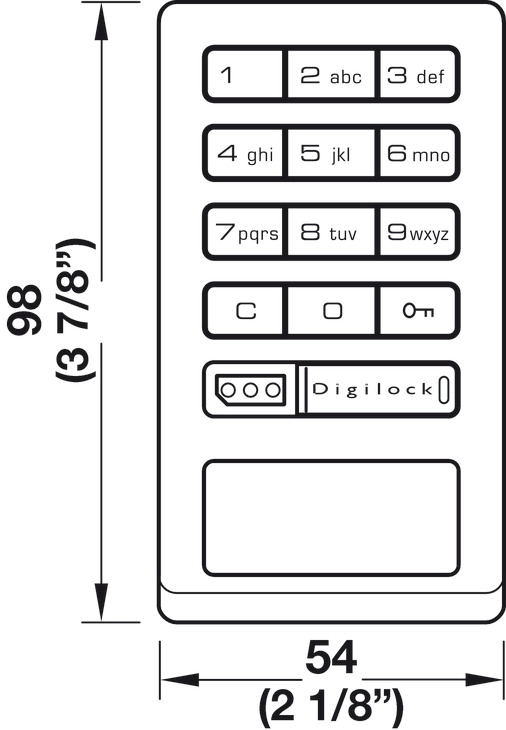

Dimensions:
- Length: 98 mm (3-7/8")
- Width: 54 mm (2-1/8")
- Height: 33 mm (1-5/16")
With key: No
Material:
- Lock housing: Steel
- Keypad: Zinc alloy
Finish:
- Lock housing: Black
- Keypad: Bright nickel with black keys
- Frame and handle: Stainless steel coloured
- Push buttons: Black

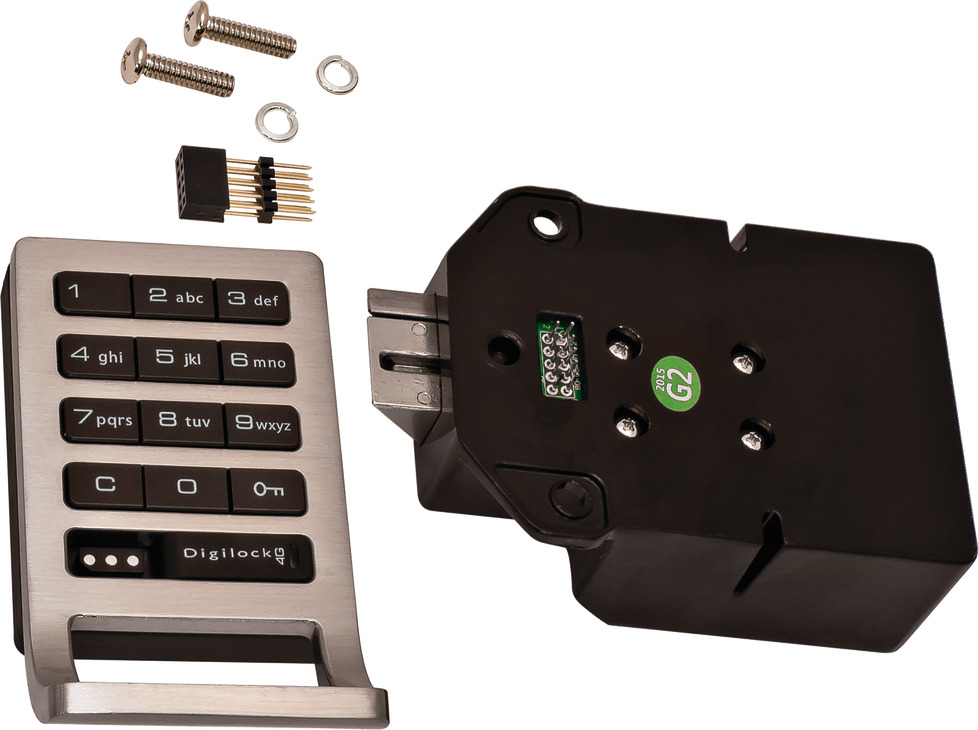

Supplied with:
- Keypad
- Lock
- 4 AA Batteries
- Mounting screws
- Instructions
Order reference: At least one programming key is required for initial programming/start-up.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
