Hafele 231.98.005

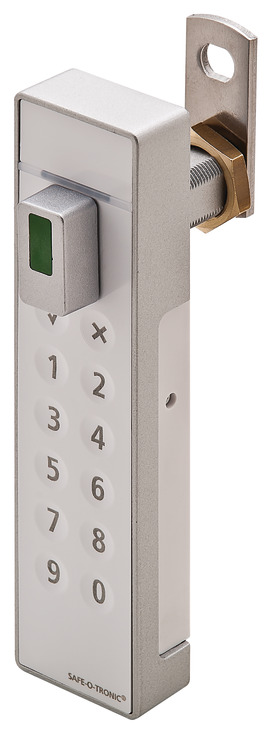

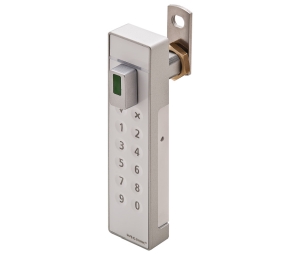

Name: Hafele 231.98.005 Keypad Lock, Safe-O-Tronic LS100, Vertical, With Lever At Top, Aluminum/Plastic/Steel, White/Gray
Brand: Hafele
SKU: Hafele 231.98.005
Price: 156.70 USD

Hafele 231.98.005 Keypad Lock, Safe-O-Tronic LS100, Vertical, With Lever At Top, Aluminum/Plastic/Steel, White/Gray

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 231.98.005 Keypad Lock, Safe-O-Tronic LS100, Vertical, With Lever At Top, Aluminum/Plastic/Steel, White/Gray

Price: $156.70 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 231.98.005 Keypad Lock, Safe-O-Tronic LS100, Vertical, With Lever At Top, Aluminum/Plastic/Steel, White/Gray

Keypad Lock
Safe-O-Tronic
Model series: LS100

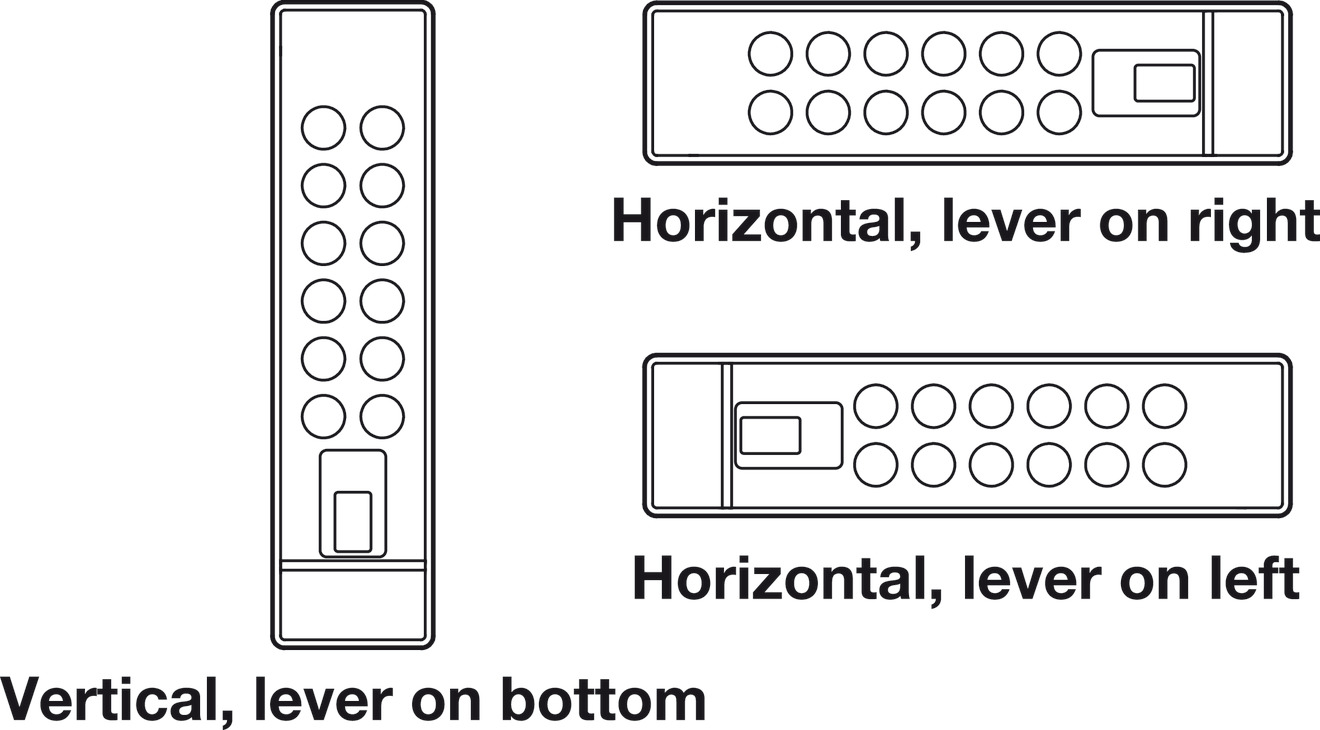

Version: Vertical, lever on top
Operation modes: Day Use Mode
Area of application:
- For interior use
- For installation in wood, laminate, plastic and metal doors and drawers
Installation reference:
- SAFE-O-TRONIC access LS 100 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically released with a correct PIN code entered on the keypad.
- Lock complies with ADA standards for door locks
- Programmable master code (5 digits) to operate the lock(s)
- Lock is easily programmed by user with easy to use keypad
- Lock mounts vertically for raised panel doors
- Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
- Low battery indicator via external LEDs
- Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
- Long battery life (10 lock cycles per day for four years)
- Easy installation with only two drill points

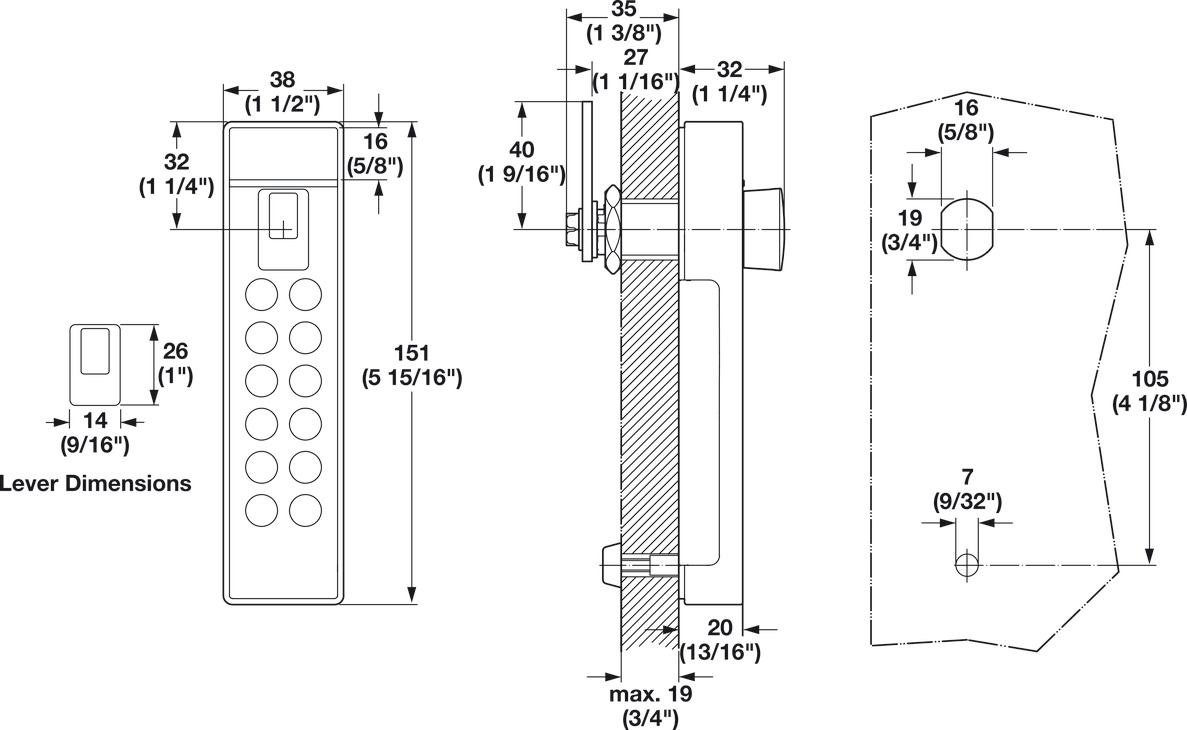

Dim. (L x W x H): 151 x 38 x 33 mm
For door thickness: =19 mm
Material:
- Lock body: Aluminum
- Face plate: Plastic
- Cam: Steel
Finish:
- Lock: White
- Body: Gray
Supplied with:
- Nut
- Straight cam
- Mounting screw
- Instructions
Additional information: Batteries changed with Torx screw driver
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
