Hafele 231.97.153

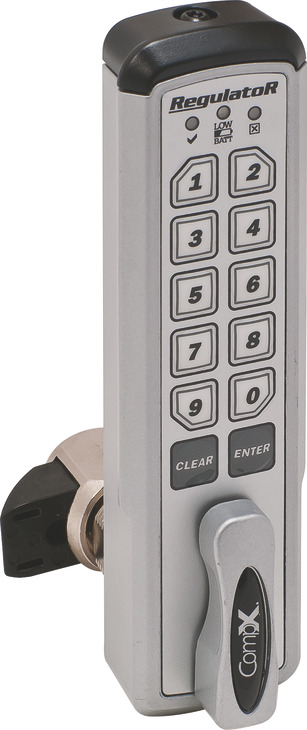

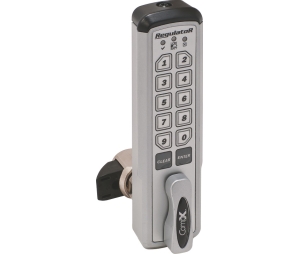

Name: Hafele 231.97.153 Regulator Keypad Lock, Self-Locking, Vertical, With Lever On Bottom, 1-3/16" Cylinder Length, Aluminum/Plastic/Steel, Gray
Brand: Hafele
SKU: Hafele 231.97.153
Price: 183.76 USD

Hafele 231.97.153 Regulator Keypad Lock, Self-Locking, Vertical, With Lever On Bottom, 1-3/16" Cylinder Length, Aluminum/Plastic/Steel, Gray

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 231.97.153 Regulator Keypad Lock, Self-Locking, Vertical, With Lever On Bottom, 1-3/16" Cylinder Length, Aluminum/Plastic/Steel, Gray

Price: $183.76 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 87

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 231.97.153 Regulator Keypad Lock, Self-Locking, Vertical, With Lever On Bottom, 1-3/16" Cylinder Length, Aluminum/Plastic/Steel, Gray

Regulator Keypad Lock
Self-Locking

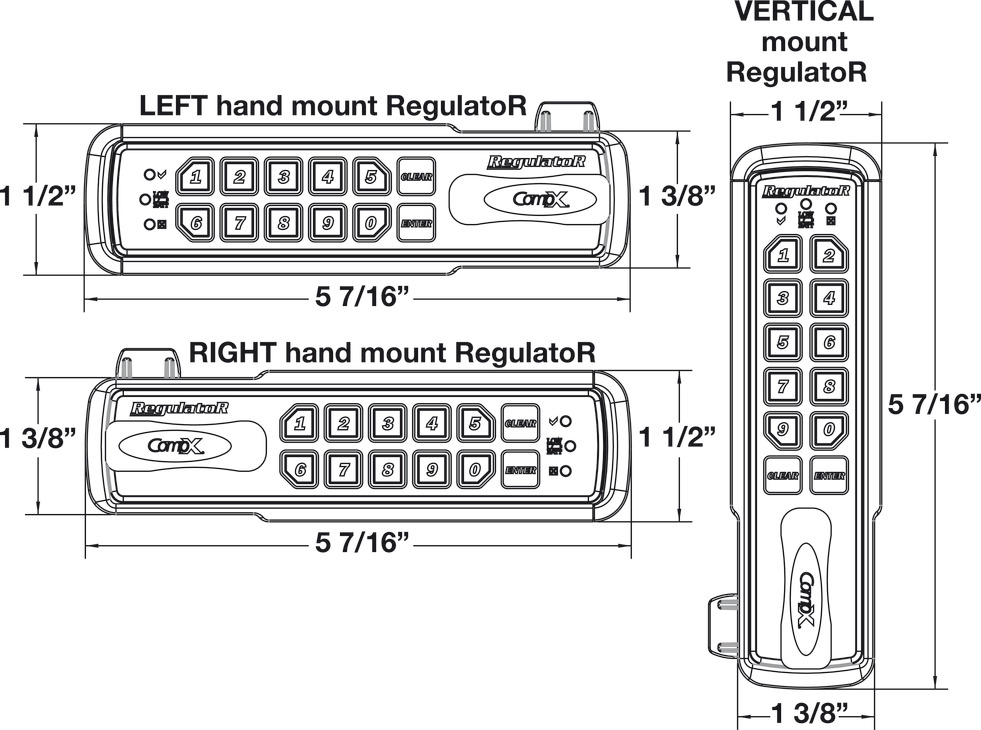

Version: Vertical lock, lever on bottom
Area of application:
- Cabinet doors or drawers
- Lockers
- Storage enclosures
- File cabinets
- Computer server racks
Installation reference:
- Self-locking, featuring SlamCAM
- Spacers provide additional latching dimensions
- 50,000 cycles - 2 AAA batteries included
- Convenient external battery installation/removal
- Low battery indicator
- Three cylinder lengths - 7/16", 1-3/16", 1-3/4"
- Easy to clean membrane keypad
- 1 user code and 1 supervisor code
- Installs on wood or metal cabinet doors and drawers
- Lock complies with ADA standards for door locks
- Lock is easily programmed by user with easy to use keypad
- Lock mounts vertically for raised panel doors
- Designed to pass the ANSI/BIFMA 50 lbf. pull strength
- Two codes per lock: one user code and one supervisor code; code length is 4-8 digits
- Available in two versions - self-locking featuring SlamCAM and manual locking
- Extended battery life reduces replacement and labor/maintenance costs
- Battery compartment is easily accessible from the outside of the cabinet
Cylinder length: 30 mm (1-3/16")
For min. panel thickness: 7/8"
Material:
- Lock body: Aluminum
- Face plate: Plastic
- Cam: Steel/Plastic
Finish: Housing: Gray
Supplied with:
- 1 Straight cam, 1 Offset cam or 1 SlamCAM
- Jamb nut
- 4 Screws
- Washer
- Mounting instructions
- 2-AA batteries
Note:
Long battery life (10 lock cycles per day for four years)
Easy installation with only two drill points
For left hand and right hand operation
Single Use Mode (Manual Locking only) - Allows the user to choose their code at time of operation - Recommended for shared lockers or cabinets in a typical fitness locker room application
Assigned Use Mode (Manual Locking and Self-Locking) - Allows for group access to the lock
CompX RegulatoR is a lock used to electrically control cabinet doors, drawers and lockers. Depending on the model, this lock operates in an assigned use or in a single use mode. The lock is electrically released with a correct PIN code entered on the keypad.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
