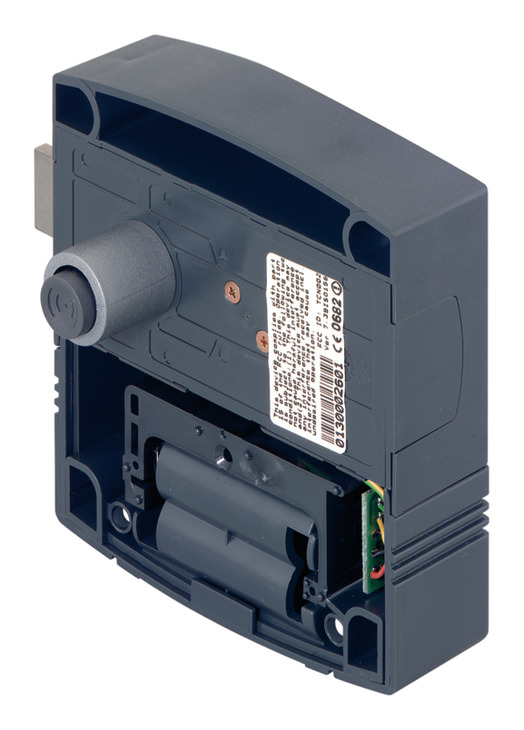

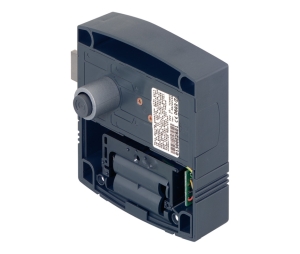

Hafele 231.91.000

• LockerLock LL 200
• Application:
  • Intelligent locker lock for indoor use
  • For wood or HPL doors on wardrobes, lockers and cabinets
• Functionality: “Fixed allocation" function, battery monitor: As soon as the battery change is indicated, the locker can still be unlocked, but not locked again, emergency opening possible with master key.

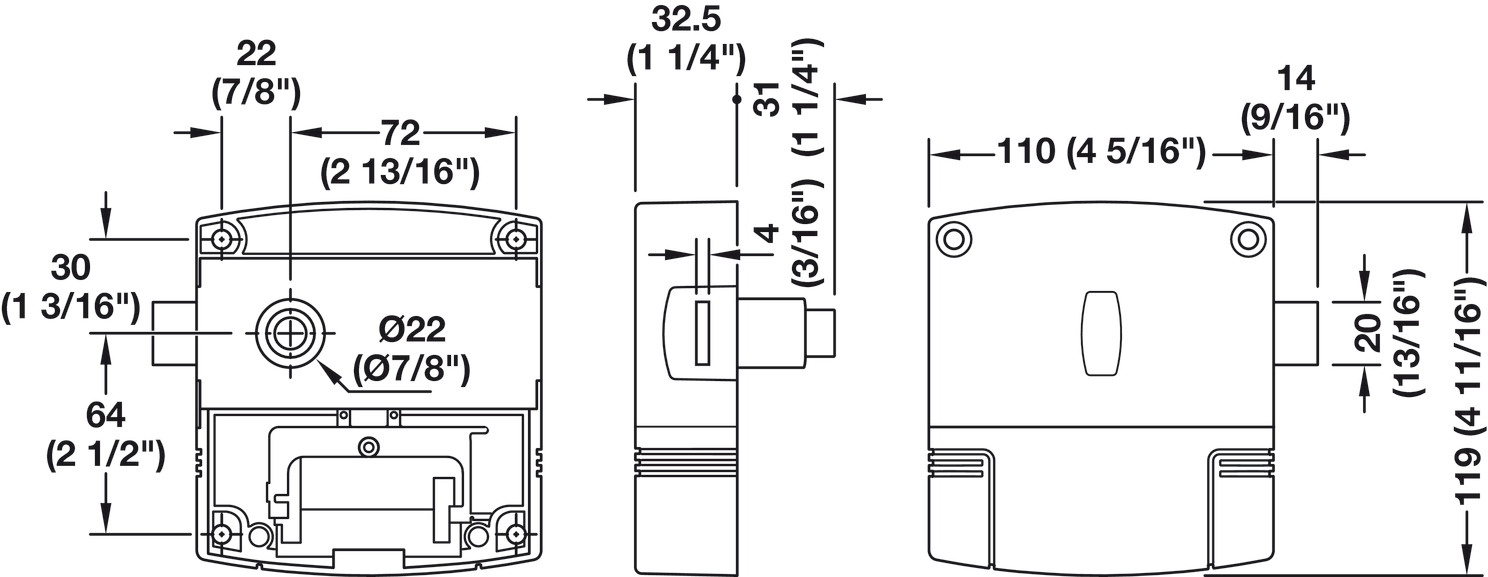

• For door width:
  • With butting overlay door: Min. 140 mm (5-1/2")
  • With butting inset door: Min. 305 mm (12") (sample measurements, exact dimensions depend on the hinge)
• For door thickness: 13 - 19 mm (1/2" - 3/4")
• Can be programmed in Stand-Alone mode with PK programming card and PK clearing key card or with MDU 110/software
• Three free choice of locker versions are available can be programmed during start-up using the software or MDU 110
• One or several Dialock keys (optional) are allocated to one or several lockers (optional) for locking and unlocking
• The type-specific discharge behavior (considerable voltage drop at the end of the life time) of lithium batteries may cause that a low battery is indicated at the terminal only for a short period or not at all
• The PK programming key card and PK clearing key card can be used for emergency opening
• Mifare Classic, Mifare DESfire EV2, Tag-it ISO
• Version:
  • Factory settings for right doors
  • Can be adapted to left doors
  • Batteries theft-proof, magnetic interactions cannot take place
  • Integrated real-time clock for audit trail of all processes
  • Acoustic feedback for unlocking and locking
  • Programming/data transfer with MDU via RFID interface
• Material: Plastic
• Finish: Anthracite
• Order reference: The maintenance tool is required to open the battery compartment.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Removal Tool, For Battery Cover: 231.80.100
• Energizer Industrial Battery, Alkaline, AA, 1.5 V: 910.54.980
