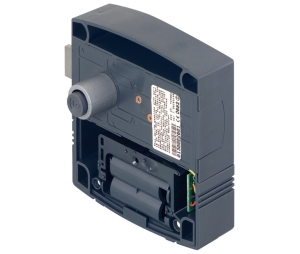

Hafele 231.90.013 LockerLock Tag-it™, Battery Powered Electronic Locking System, Dialock®, With Tag-it™ Processor, Plastic

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 231.90.013 LockerLock Tag-it™, Battery Powered Electronic Locking System, Dialock®, With Tag-it™ Processor, Plastic

+ Add to My Wish List

Stock Alert

This item is discontinued and is kept in the database for informational purposes only.

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 231.90.013 LockerLock Tag-it™, Battery Powered Electronic Locking System, Dialock®, With Tag-it™ Processor, Plastic

LockerLock Tag-it™
Application:

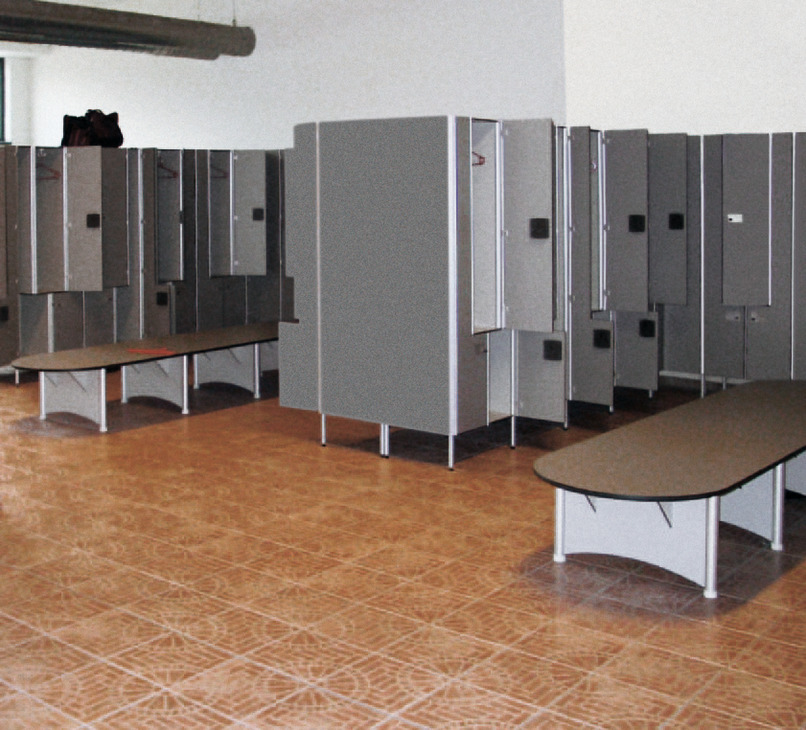

- For installation in all types of cabinets such as wardrobes, lockers, cupboards, with wooden or MDF doors
- Supplied for right hand doors but can be adapted for left
- Stores up to 240 user keys
Operation:

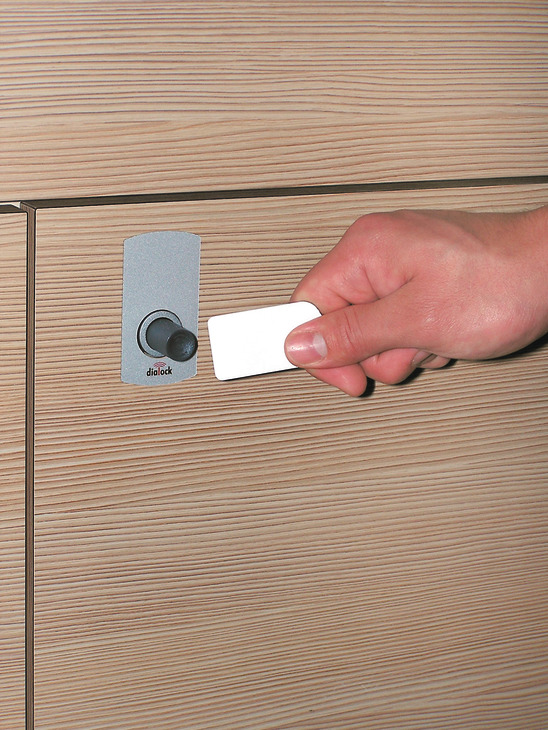

- To lock close door shut and push in knob with authorised electronic key; bolt is then thrown and knob stays pushed in
- To unlock simply press knob again with key; bolt retracts to open door and knob is no longer depressed
Electronic control unit with LockerLock:
- Electronic circuit is activated by pressing the button with an electronic key
- Stores last 150 transactions
- LED shows programming and lock status
- Integrated real-time clock to programme time-limited locking authorisations
- Serial interface for the communication wth portable programming devices
Simple Programming features - default setting
Wellness function - user selects any one open cabinet or locker
Windows based modules for Personnel, Hotel and Clinic applications
Dialock® programming software and hardware not included in this catalog, contact the Dialock® dept. for details
Technical Data:
- Mounts on left hand or right hand door
- Memorizes up to 228 user keys
- Memorizes last 150 key uses (Complete Programming feature only)
- Requires (4) 1.5 V/DC AA Premium Batteries (sold separately)
- Replacement after 10,000 cycles
- Under low power, locking is not possible
- Batteries accessible only with special tool
- Includes locker label without number
For use on locker or casework doors
Contains transmitter and receiver for exchange with Dialock® key
Red/Green LED for visual indication of programming progress and key authorization (on interior box)
Catch has 2 visible states:
- Open - with push button lock extended
- Locked - with push button retracted
Optional wellness function:
- Free choice of open lockers
- Any key can lock then open any locker
- Emergency Master Key
- Requires Info Terminal

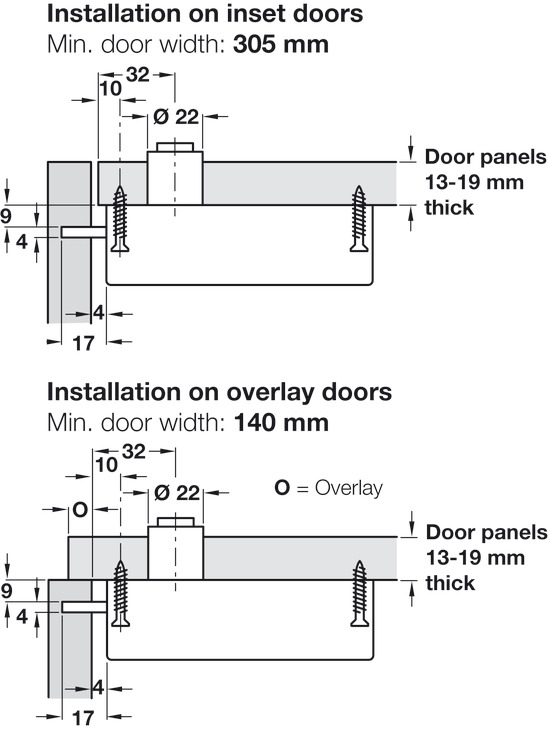

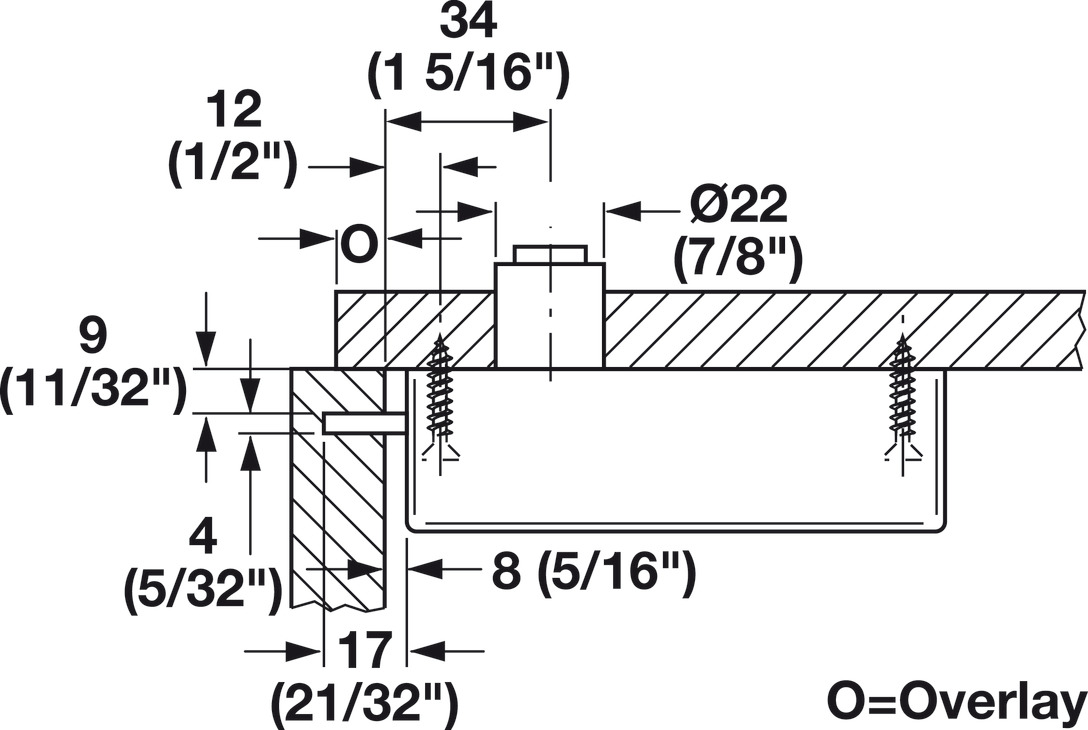

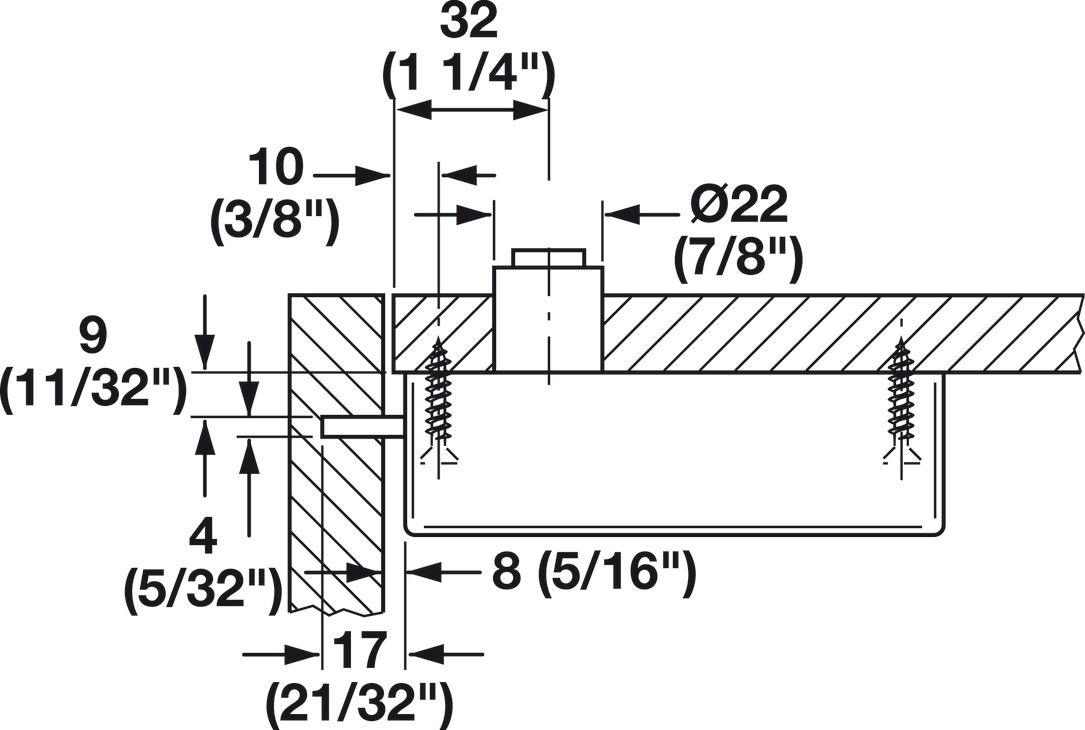

Mounting to inside of door with 4 wood screws (sold separately)
Utilizes Tag-it™ technology
For use with Dialock Tag-it™keys
Material: Plastic
Supplied with:

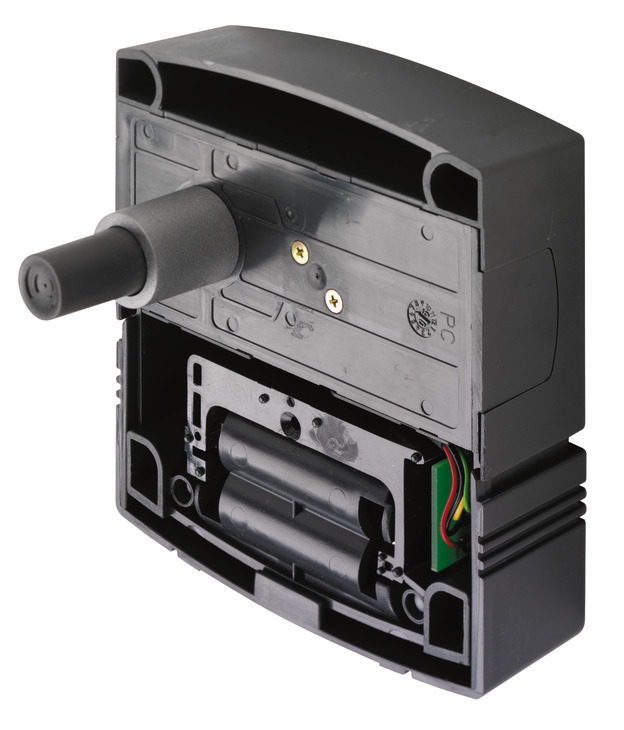

- 1x LL 100 LockerLock case, charcoal grey plastic case with stainless steel (1.4310) bolt
- 2x Cover plugs, charcoal grey plastic, to cover fixing screws
- 1x Electronic control unit with transmitter and receiver module for data exchange with electronic keys
Order reference:
- Striking angles and plates must be ordered separately
- Programming key cards and electronic keys must also be ordered separately
- Fixing materials must be ordered separately, depending on type of door used
- Please enquire with our Sales staff when ordering
- Batteries and maintenance tool for changing batteries must be ordered separately
- For help, advice and ordering of our full range of Dialock access control systems please get in touch with our Project team, 0800 171 2907 or estimating@hafele.co.uk
Additional information:
- Please contact our Sales staff for details of the Complete Dialock solution including MDU and Dialock software
- Most Dialock products for furniture applications are based on Tag-it™ transponder technology
- Various products are also available with Legic transponders - information available on request
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
