Hafele 231.53.817

Name: Hafele 231.53.817 Safe-O-Mat® - Coin Return, 800 Series, For Wood Laminate or Plastic Lockers, 1 Token, Right Hand, Plastic, Gray
Brand: Hafele
SKU: Hafele 231.53.817
Price: 72.80 USD

Hafele 231.53.817 Safe-O-Mat® - Coin Return, 800 Series, For Wood Laminate or Plastic Lockers, 1 Token, Right Hand, Plastic, Gray

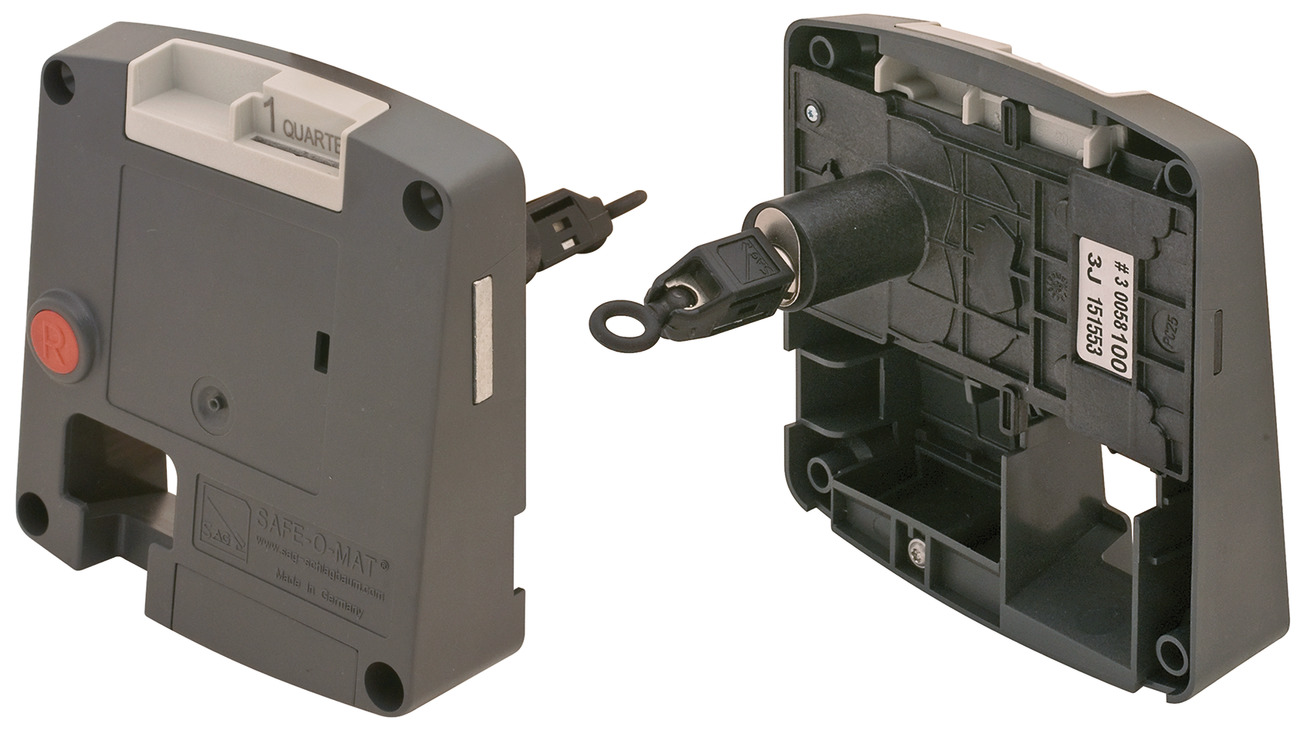

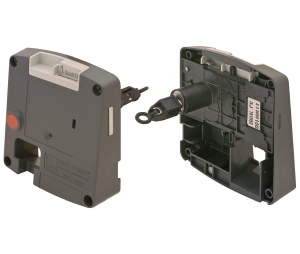

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 231.53.817 Safe-O-Mat® - Coin Return, 800 Series, For Wood Laminate or Plastic Lockers, 1 Token, Right Hand, Plastic, Gray

Price: $72.80 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 75

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 231.53.817 Safe-O-Mat® - Coin Return, 800 Series, For Wood Laminate or Plastic Lockers, 1 Token, Right Hand, Plastic, Gray

Safe-O-Mat® - Coin Return
Version: 1x Token
Model series: 800 - Coin Return
Data-driven technical data table: 2305
Application:
- Fitness centers
- Amusement parks
- Resorts
- Transportation terminals
Functionality:
- To Lock:
- To Unlock:
Mounting: Right

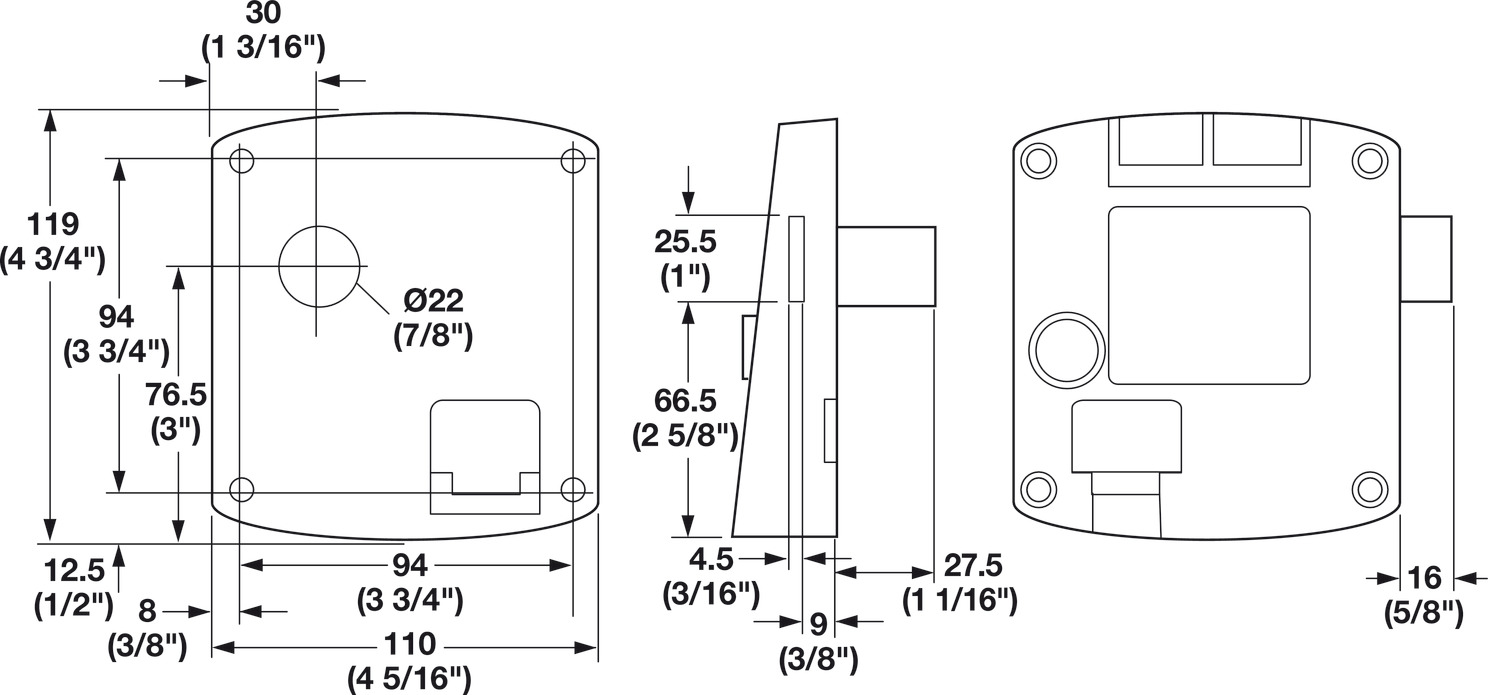

Dimensions:
- Length: 110 mm (4-5/16")
- Width: 57.5 mm (2-1/4")
- Height: 119 mm (4-3/4")
- Cylinder length: 27 mm (1-1/16")
- Cylinder Ø: 22 mm (7/8")
- Backset: 30 mm (1-3/16")
For door thickness min.: 13 mm (1/2")
For door thickness max.: 26 mm (1")
For cabinet width min.: 140 mm (5-1/2")
Weight: 0.225 kg (8 oz.)
Temperature min.: 32 °F
Temperature max.: 140 °F
With key: Yes
Material: Plastic
Finish: Gray
Supplied with:
- 4 Mounting screws
- Outside instruction decal
Additional information:
- Please contact Häfele at 1-800-423-3531 and have the following information available:
- Screw length depends on door thickness
- Other currency or token locks available upon request
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
