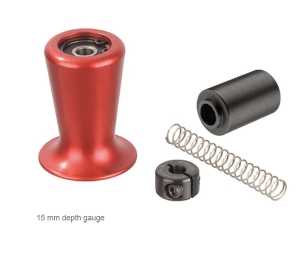

Hafele 001.25.770

• Depth Gauge

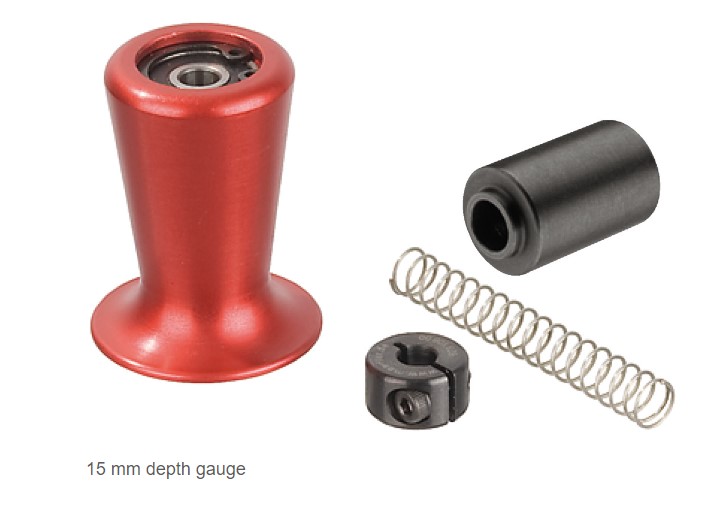

• Version: 15 mm (9/16") depth gauge with spring and depth gauge
• Application: Workshop Equipment
• Suitable for: Häfele Red Jig drilling jig
• Drill Bits: 3-10 mm (1/8" - 3/8")
• Drilling jig for all furniture connectors and the most popular furniture fittings from Häfele
• Exact, dimensionally accurate drilling with the new depth gauge system
• Interchangeable drill guides allow quick drilling pattern changes
• Coordinated with 32 mm (1-1/4") intervals
• Suitable for series drilled holes
• Front edge drill holes for panel thickness of 12-60 mm (1/2" - 2-3/8")
• Material: Aluminum
• Finish: Red, anodized
• Supplied with:
  • Spring
  • Depth stop
• Order reference: If no basic components of the Häfele Red Jig drilling jig are at hand, the basic jig with Cat. No.: 001.25.600 must also be ordered.
• Additional Information: Order appropriate drill bit separately
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• HM wood twist drill bit, Total length 130 mm, shank Ø 8 mm: 001.06.683, 001.06.686, 001.06.687
