Grass America GF02284-15

copy to clipboard

Grass America GF02284-15 One Piece Face Frame Hinge, >= 1-7/16" Overlay, Screw-On, Face Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Grass America GF02284-15 One Piece Face Frame Hinge, >= 1-7/16" Overlay, Screw-On, Face Mount
More from Grass America
Price: $5.11 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (Minimums Apply):
Vernon Hills, IL Warehouse Qty: 149
Middletown, OH Warehouse Qty: 25
For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Grass America GF02284-15 One Piece Face Frame Hinge, >= 1-7/16" Overlay, Screw-On, Face Mount
  • One Piece Face Frame Hinge
  • Two Cam Height & Depth Adjustments, Overlay 1-7/16" and Greater
  • One piece hinge and base plate combination
  • 2-dimensional adjustment
  • Height adjustment at mounting screw
  • For overlays 1-7/16" and greater
  • 85° angle reduction clip available
  • Made in USA
  • Opening Angle: 108°
  • Overlay: >= 1-7/16"
  • Fixing Type: Screw-On
  • Boring Pattern: 45 mm
  • Closing Type: Self-Closing
  • Mounting Type: Face Mount
  • Type: One-Piece Assembly
  • Cup Depth: 11mm
  • Box Quantity: 300 Each
  • MPN Code: 02284-15
  • Packing: 300 hinges per box. Sold in both broken and full box quantities.
  • Unit of measure is EA and Boxes. Each Box contains 300 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 300 you will get one box which contains 300 hinges. Price is for one hinge.
Questions and Answers
Q: what is the drill pattern for screws in door
A: The Grass America GF02284-15 One Piece Face Frame Hinge, >= 1-7/16" Overlay, Screw-On, Face Mount is a 45mm Drill Pattern and all of the items dimensional properties can be reviewed here at the catalog cut sheet:

Download File

Q: Hi Richard, We are looking for face mounted overlay hinges for some pantry doors. The specs:

  • doors are 1 1/4" thick at the perimeter and spaced 1/8" apart - so the hinge needs to be able to work without hitting the door next to it.
  • doors are 7ft tall and ~28" wide at max - lets call them 100lbs

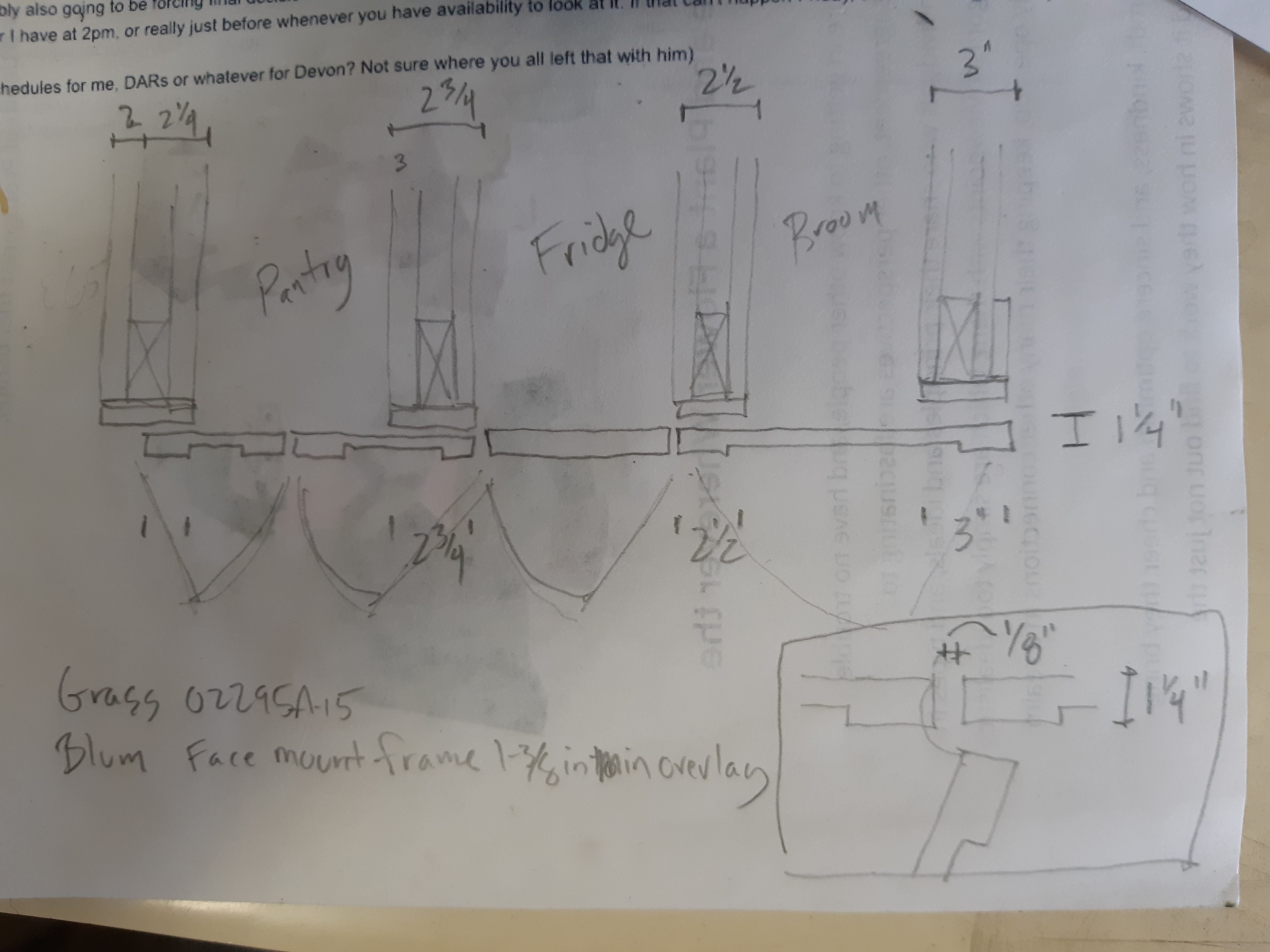

  • The Drawing:

    View Image

    Main questions are: :

  • Can these handle the weight?
  • Will they avoid adjacent doors when opening?

    From my initial search on your website it looks like these might work

  • Part #: Grass America GF02284-15
    as seen here:

    Click Here

  • Part #: Blum BP38B355BF22
    as seen here:

    Click Here

    • A: Thank you very much for supplying the narrative and your sketch.

    The short answer is no, these hinges will not work - not only because of the potential weight but because of the geometry of the vertical axis of pivoting and how the door will need to cycle open.

    I created a short video as seen here:

    Click Here

    Where I attempted to illustrate not only why it will not work but the proposed solution which would be the Stanley 340-26D Wardrobe Pivot for Flush Recessed or Overlay Doors 1-1/8" 1 1-3/8" as seen here:

    Click Here
