Home > Exit Devices > Heavy Duty > Rim Device > Exit Device > Non-Fire Rated > GLOBAL DOOR TH1100EDTBAR

GLOBAL DOOR TH1100EDTBAR

Name: GLOBAL DOOR TH1100EDTBAR Touch Bar Rim
Brand: Global Door Controls
SKU: GLOBAL DOOR TH1100EDTBAR
Price: 190.88 USD

GLOBAL DOOR TH1100EDTBAR Touch Bar Rim

× This image is for a similar product but it will differ in size, color and/or other attributes.

Video Review GLOBAL DOOR TH1100EDTBAR Touch Bar Rim

Price: $190.88 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


GLOBAL DOOR TH1100EDTBAR Touch Bar Rim

GRADE - ANSI A156.3 Grade 2 MATERIAL: Extruded anodized aluminum push bar, stainless steel springs. LATCH: Stainless Steel, 3/4" throw - 5/8" deadlatch. BACKSET: 2 3/4" Covers 161 prep, includes latch & strike filler plates. STRIKE: Surface mounted for 5/8" stop with shim. PROJECTION: 2 1/2" - 1 7/8" dogged. STILE: 4 1/4" minimum. HANDING: Reversible, non-handed. DOOR THICKNESS: 1 3/4" standard. DOOR WIDTH: 36", can be field sized to 30". MOUNTING HEIGHT: Recommended installation at 41" from finished floor to center line of push rail. FASTENERS: Furnished with sheet metal and machine screws. CYLINDER: Rim included, all key trims cylinder included except PLED. DOGGING: 1/2 turn hex. FINISHES: Aluminum and Duronotic. Additional Dogging Keys can be purchased here: CRL DL9DKEY If you are using this exit device in a double door application please be sure to order the additional strike necessary for a double door installation of a rim exit device as seen here: GLOBAL DOOR TH1100-DBLSTAL	Installation Instructions Notification Cut Sheet Template

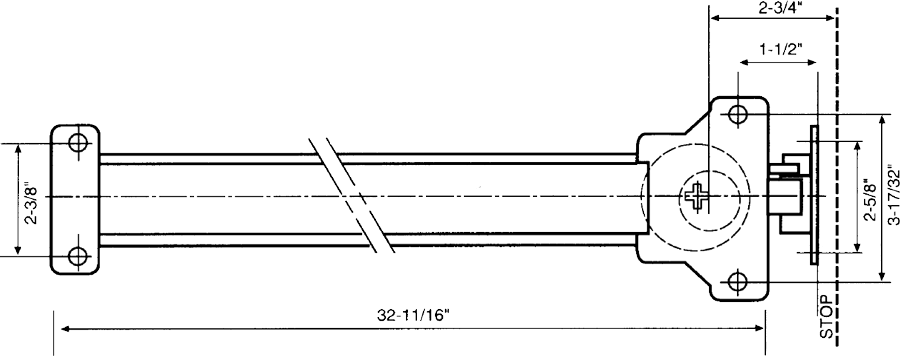

Dimention

Video Review of GLOBAL DOOR TH1100EDTBAR Touch Bar Rim

Video Detail Page

Questions and Answers

Q: what trims are available

A: For the part number GLOBAL DOOR TH1100EDTBAR Touch Bar Rim there would be several possible trends such as key and knob or key and lever, a simple rim cylinder with a pull handle in the pull handle can be either the double wing style or an auxiliary separate pull that you install and then lastly you can have a handle with a thumb piece as well.

the manufacturer's catalog page as seen here:

Download File

will prove to be very helpful at a visual review of the available potential trims for this exit device.
