z1270

copy to clipboard

Gentex S1209 (replacement for 7100H)

enlarge
enlarge

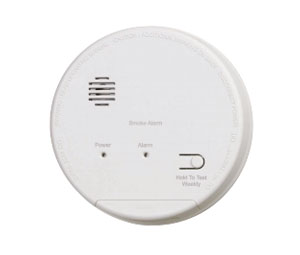

× This image is for a similar product but it will differ in size, color and/or other attributes.
Gentex S1209 (replacement for 7100H)
More from Gentex Corporation
Price: $61.15 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 15-20 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Gentex S1209 Photoelectric Smoke Alarm (replacement for 7100H)

Standard Features:
  • 120 VAC with 9V battery back-up
  • Photoelectric smoke sensing technology
  • Horn frequency 3100 Hz (nominal)
  • Temporal 3 evacuation piezo horn
  • Nominal 2.5% sensitivity
  • Push button self test feature, verifies power sources/operation
  • Push and hold button functional test feature, analyzes sensing chamber
  • Optional Auxiliary Form A/Form C relay contacts (F model)
  • Relay contacts operate when on battery back-up
  • Quick-disconnect wiring harness
  • DUALINKĀ® - tandem with all Gentex tandem capable alarms
  • Non-latching (self restoring) alarm
  • LED for AC power on
  • Red LED pulses every 30 seconds, green
  • Solid state red LED to indicate smoke presence
  • Smoke sensing chamber is fully insect screened
  • Mounting hardware adapts to standard junction boxes
  • Dust cover to prevent particle contamination during installation
  • Low or missing battery indicator
  • One year warranty from date of purchase
  • This item is the replacement for the Gentex 7100H discontinued item.

Questions and Answers
Q: Can I replace several 7103 with the recommended replacement, S1209?
A:

The 7103 was discontinued a few years back.

The S1209 is 120V but has a 9V battery backup.

The S1209 has a different wire harness and mounting bracket than the 7103 if you replace the existing 7103s.

Lastly, the tandem feature. The Tandem feature is if one smoke trips ALL the smokes trip that are tandem together. If there are 7103s still at the Hospital and they add the S1209s these 2 units DO NOT tandem. If that is an issue, they will need to replace all the smoke detectors. They cannot mix together. The S1209 can tandem up to 12 units.

Is there a follow-up question that we can perhaps attempt to answer? We take pride in our technical expertise so dont hesitate to ask.
