Fire-Lite ES-50X

copy to clipboard

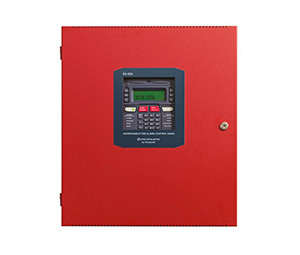

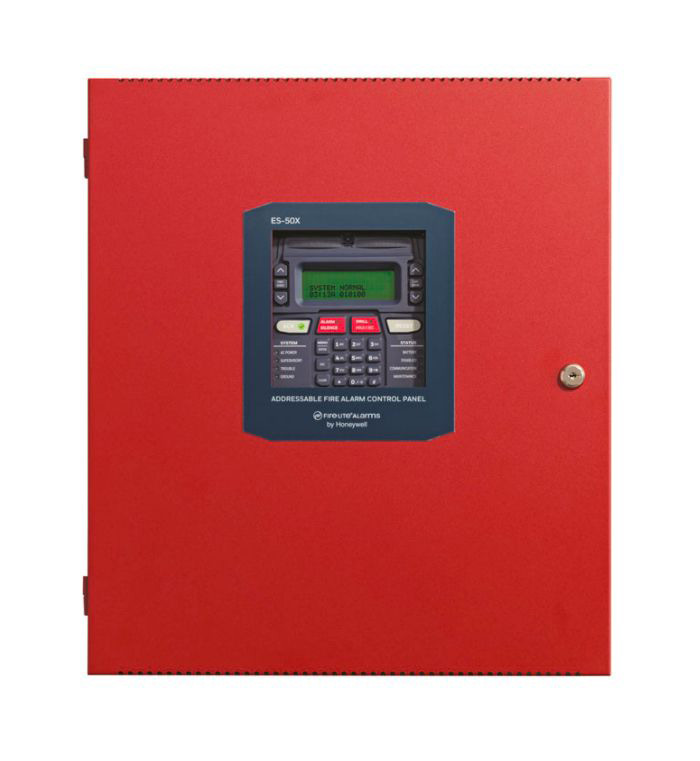

Fire-Lite ES-50X Addressable Fire Alarm Control Panel - 50 Point

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

Fire-Lite ES-50X Addressable Fire Alarm Control Panel - 50 Point

More from Fire-Lite

+ Add to My Wish List

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Fire-Lite ES-50X Addressable Fire Alarm Control Panel - 50 Point


Product Information: The ES-50X is the latest intelligent addressable fire alarm control panel (FACP) from Fire Lite Alarms and is a direct replacement for the MS-9050UD/LS. The ES-50X comes with a pre-installed communi-cator and supports up to 50 addressable devices in any combination of detectors or modules. With an extensive list of powerful features, the ES-50X programs just like Fire Lite’s other addressable panels, yet fits into applications previously served only by conventional panels Listed to UL Standard 864, 10th edition Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Telephone Service) Central Station Communicator Optional CELL-MOD or CELL-CAB-FL GSM Central Station Communicator over AlarmNet® Compatible with SWIFT® wireless devices Auto-programming (learn mode) reduces installation time. Reports two devices set to the same address Two independently programmable, built-in Style Z (Class A) or Style Y (Class B) NAC circuits Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices Notification Appliance Circuit End of Line resistor matching Four programmable function keys for ease of maintenance Two programmable relays and one fixed trouble relay Built-in Programmer Integral 80-character LCD display with backlighting Real-time clock/calendar with automatic daylight savings control History file with 1,000 event capacity Addressable sounder base Multi-criteria detector (smoke, heat, CO) with programmable response Control module delay timer Automatic detector sensitivity testing (NFPA 72 compliant) Automatic device type-code verification Point trouble identification Waterflow selection per module point Alarm verification selection per detector point Maintenance alert warns when smoke detector dust accumulation is excessive One-person audible or silent walktest with walktest log & printout System alarm verification selection per detector point PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant) Up to 16 ANN-BUS annunciators- 8 per each ANN-Bus Remote Acknowledge, Alarm Silence, Reset and Drill via addressable modules or remote annunciator Upload/Download of program and data via USB with optional FSTools Programming Utility UNSPSC Code: 46171600 Documents: Click for Data Sheet Click for Manual Click for Fire-Lite Device Compatibility Document Click for Operating Instructions Click for Product Brochure

(Click to Enlarge)
