Falcon T-Series Cylindrical Lockset Non Keyed
|
| |
| Manufacturer: Falcon |
| Price: $117.93
|
| |
|
| |
|
| |
| |
| |
|
|
|
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
|
|
 |
|
 |
|
| |
Falcon Lock Philosophy |
|
| At Falcon, we take a proactive approach to addressing commercial
facility needs. |
| Whether the application is government, military, retail,
industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2
locksets with functions and key systems to fit your budget requirements. |
| With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs. |
| As part of the world-renowned IR Security & Safety Sector, Falcon
benefits from the power of IR’s industry leadership, global distribution
and multiple product lines that deliver integrated security solutions. |
| Falcon is represented and supported by the Security & Safety
Consultant organization across the US and Canada. |
| Their capabilities
include facility surveys, specification writing, value engineering, key
system design. In conjunction with IR security Centers complete after
the sale service and support is available |
| Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411. |
How to Order |
| For correct ordering, and to ensure no delays in shipment of
your order, the following descriptive data must be listed in the
sequence shown. Necessary information can be found in other
parts of this catalog. The example below shows an order for
12 each T locksets in the 301 Privacy function, D (Dane) trim
design in a 626 (satin chrome) finish, with 2-3/4" backset
latch, to accommodate doors 1-3/4" thick. |
 |
Quantity: |
Indicate the quantity required. |
|
Catalog Number: |
Select catalog number. |
|
Trim Design: |
Indicate letter of lever design required. |
|
Example: |
Example: A=Avalon; D=Dane; Q=Quantum.. |
|
Finish: |
When the finish is the same for the outside and inside
trim, it is shown once (626). For split finishes, the outside is
designated first, then the inside (605 x 625). |
|
Latch: |
2-3/4" backset standard. Adjustable front standard.
A Grade 2 latch with a 1" faceplate in 2-3/8" and 2-3/4"
backset also available. See page 11. All latches are
UL listed 3 Hour. |
|
Strike: |
4-7/8" x 1-1/4" ANSI standard. Optional T-Strike or Full
Lip strike available. See page 119. |
|
Cylinder Type: |
For 6-pin, add 6-pin. For 7-pin, add 7-pin. |
|
Door Hand: |
See chart . |
|
Keying Detail: |
We suggest using the standard terms developed
by A.H.C. (Architectural Hardware Consultants).
EXAMPLE: AA1- Grand Master keyed, Master keyed, change key 1. |
|
Interchangeable Core: |
To order product capable of accepting
an interchangeable core, add “FIC” (for interchangeable core).
To order product with an interchangeable core, add “WIC”
(with interchangeable core). |
|
Keyway: “G” |
is standard on regular cylinders, “A” is standard on
interchangeable cores. Other keyways available. See price book. |
|
Additional Keys: |
Note the total number of keys required. |
|
Large Bow Keys: |
Add - “with large bow keys.” |
|
| Catalog
Number |
Function |
Description |
| T12 |
|
Half Dummy |
| Single Trim-surface mounted rigid lever. |
| T101 |
|
Passage/Closet Latchset |
| Latch bolt by levers at all times. |
| T301 |
|
Privacy Lock |
Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating
inside lever or closing door releases push button. Emergency release in outside
lever unlocks door. |
| Trim design |
|
|
Levers are solid pressure cast zinc, finished to match mating parts. Roses are wrought brass or bronze installed over steel through-bolted
rose inserts.
|
|
|
Pressure Release™ levers are standard. Levers are secured by a spring-loaded retainer.
|
|
|
Retainer cannot be depressed
when locks have been locked. |
| Finishes |
| The latest in modern techniques and equipment are used to
apply the highest quality finish. Extra steps assure durable,
consistent finishes and long useful life.
Although we apply the finest available protective plating and/or
enamel coating to the surface of our products, these finishes
have limitations and in time may deteriorate either from
exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of
these finishes is, therefore, not a defect, but a normal process
which is unavoidable. Our company cannot accept responsibility
for finish deterioration in these circumstances; therefore, the
finishes cannot be guaranteed. These products will not be
refinished or replaced under our warranty should deterioration
of finishes occur. |
| Description |
ANSI No. |
Available on |
Bright Brass |
605 |
Dane |
Satin Brass |
606 |
Dane |
Satin Bronze |
612 |
Dane |
Satin Bronze Oil Rubbed |
613 |
Dane, Quantum |
Satin Chrome |
626 |
Dane, Quantum, , Avalon |
Falcon M Series Single Keyed Knobs
|
| Full T-Series Falcon catalog |
|
|
| Door thickness: |
1-3/4" to 2-1/8" standard. Thin door adapter kit
(A30775-000-00) available for doors thinner than 1-3/4",
please specify door thickness. |
| Backset: |
2-3/4" standard. 2-3/8" also available. |
| Mechanism: |
Parts constructed of brass or cold formed steel,
zinc plated and dichromated for rust resistance. Springs are
stainless steel. |
| Attachment: |
Lock chassis secured to door by threaded
mounting nuts. Completely preassembled outer trim and inner
spindle assembly are through-bolted over chassis using (2)
10-32 screws. Adding rose and lever to inner spindle assembly
completes installation. |
| Handing: |
Locks are non-handed. |
| Cylinders: |
Drilled with 6-pin chambers, pinned in 5. Pinning in
6 chambers available when specified, at no cost. 7-pin cylinders
also available. Cylinder assemblies removable to rekey. Also
available with 6 or 7-pin interchangeable core cylinders.
Cylinder housings and plugs machined from solid brass. Springs
are phosphor bronze. Two nickel silver keys furnished standard. |
| Keyways: |
G” keyway standard on standard cylinders.
“A” keyway standard on I/C core cylinders.
Also available with some optional keyways. See page 120 |
| Trim: |
Roses are heavy wrought brass or bronze, installed over
pressure cast rose inserts which are through-bolted through
door. Levers are pressure cast (solid levers–no inserts) material
finished to match mating parts. See individual designs shown
on page 113 for details. |
| Latches: |
9/16" bolt projection, UL listed with latch faceplates
2-1/4" x 1-1/8" with square corners standard. 3/4" projection,
UL listed latch with 2-3/4" backset also available. Adjustable
front standard. See page 11 for optional latches. |
| Strikes: |
4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI
A115.2 door frame preparation standard. Consult page 7 for
other available strike sizes and configurations. |
| Screws: |
Furnished with combination screws for use in wood or
metal doors and frames. |
| Electrified Functions: |
Available in 24 VDC .185 AMP. |
| ANSI/BHMA: |
Meets ANSI/BHMA A156.2, Series 4000, Grade 1. |
| UL: |
3 hour A label. |
|
|
| Falcon Mortise Lock Specifications |
|
All locks shall meet the new ANSI/BHMA A156.2, Series
4000,Grade 1 for key-in-lever locksets. |
 |
|
Locksets shall be UL Listed (3 hour A Label). |
|
Locksets shall be provided standard with Pressure Release™ feature. When outside lever is locked, it is not rigid but will
move freely without operating the latch bolt. |
|
Lever trim shall have individual heavy-duty springs behind
rose for lever return and to prevent lever sag. Trim shall be
through-bolted with two (2) 10-32 screws coated with thread
sealant to provide strength and resistance to loosening. Inner
and outer trim shall “bottom out” to prevent door collapse.
Roses shall be minimum of 3-1/2" diameter. |
|
All lever designs shall be solid and meet the federal ADA and
state disability requirements. Inside levers shall be attached by
Allen-head set screw to prevent tampering or vandalism. |
|
Locksets shall adjust to fit door thickness from 1-3/4" to 2-1/8". |
|
All locksets shall be non-handed and not require field disassembly
for re-handing. |
|
Preparation for door must be non-handed. |

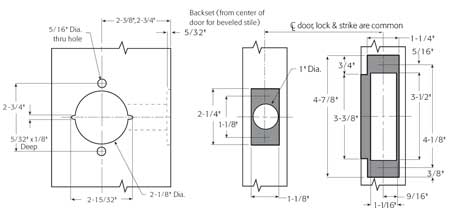

T SERIES DESCRIPTION |
All functions except Dummy Trim |
1-1/8" Faceplate |
Metal door |
Wood door |
1-1/8" Faceplate w/ 3/4" Throw Latch |
Metal door |
Wood door |
1-1/8" Faceplate Electrified |
|
Wood door |
1-1/8" Faceplate w/ 9/16" Radius Latch |
Metal door |
Wood door |
|
|
|
Dummy Trim |
Single & Double |
Metal door |
Wood door |
| |
|
|
Special Small Faceplate Latches |
1" Faceplate |
Metal door |
Wood door |
1" Faceplate w/ 1/4" Radius |
|
Wood door |
| Strikes |
| Furnished with a 4-7/8" ANSI strike unless specified otherwise. |
|
|
|
|
|
005164-000 |
A05185-000 |
A05185-004 (avaible on special order) |
Q001-049 (avaible on special order) |
Q001-048 (avaible on special order) |
ANSI Prep A115.2 |
T-Strike Square Corner |
T-Strike 9/16" Radius |
Full Lip, Square Corner |
Full Lip, 1/4” Radius Corner |
|
