Falcon BK |
Falcon B-Series Cylindrical Lockset Keyed
|
| |
| Manufacturer: Falcon |
| Price: $270.25
|
| |
|
| |
|
| |
| |
| |
|
|
|
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
|
|
 |
|
 |
|
| |
Falcon Lock Philosophy |
|
| At Falcon, we take a proactive approach to addressing commercial
facility needs. |
| Whether the application is government, military, retail,
industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2
locksets with functions and key systems to fit your budget requirements. |
| With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs. |
| As part of the world-renowned IR Security & Safety Sector, Falcon
benefits from the power of IR’s industry leadership, global distribution
and multiple product lines that deliver integrated security solutions. |
| Falcon is represented and supported by the Security & Safety
Consultant organization across the US and Canada. |
| Their capabilities
include facility surveys, specification writing, value engineering, key
system design. In conjunction with IR security Centers complete after
the sale service and support is available |
| Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411. |
How to Order |
| For correct ordering, and to ensure no delays in shipment of
your order, the following descriptive data must be listed in the
sequence shown. Necessary information can be found in other
parts of this catalog. The example below shows an order for
12 each T locksets in the 301 Privacy function, D (Dane) trim
design in a 626 (satin chrome) finish, with 2-3/4" backset
latch, to accommodate doors 1-3/4" thick. |
 |
Quantity: |
Indicate the quantity required. |
|
Catalog Number: |
Select catalog number. |
|
Trim Design: |
Indicate letter of lever design required. |
|
Example: |
Example: A=Avalon; D=Dane; Q=Quantum.. |
|
Finish: |
When the finish is the same for the outside and inside
trim, it is shown once (626). For split finishes, the outside is
designated first, then the inside (605 x 625). |
|
Latch: |
2-3/4" backset standard. 2-3/8" backset available.
All latches are UL Listed 1-1/2 hour B Label. |
|
Strike: |
4-7/8" x 1-1/4" ANSI strike standard. Optional T-Strike
or Full Lip Strike available. |
|
Cylinder Type: |
For 6-pin, add 6-pin. |
|
Keying Detail: |
We suggest using the standard terms developed
by A.H.C. (Architectural Hardware Consultants). EXAMPLE:
AA1–Grand Master keyed, Master keyed, change key 1. |
|
Interchangeable Core: |
To order product capable of accepting
an interchangeable core, add “FIC” (for interchangeable core).
To order product with an interchangeable core, add “WIC”
(with interchangeable core). |
|
Keyway: “G” |
is standard on regular cylinders, “A” is standard
on interchangeable cores. Other keyways available. |
|
Additional Keys: |
Note the total number of keys required. |
|
Large Bow Keys: |
Add - “with large bow keys.” |
|
| Catalog
Number |
Function |
Description |
| B511 |
|
Entry/Office Lock |
Turn/push button locking. Pushing and turning button locks outside lever requiring use
of key until button is manually unlocked. Push button locking. Pushing button locks
outside lever until unlocked by key or by rotating inside lever. Inside lever always free.
Deadlocking latch bolt. |
| B561 |
|
Classroom Lock |
Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever.
Inside lever is always free. |
| B581 |
|
Storeroom Lock |
| Deadlocking latch bolt by lever inside or key outside. Outside lever is
inoperable. Inside lever always free. |
| Trim design |
|
|
|
|
|
|
| Finishes |
| The latest in modern techniques and equipment are used to
apply the highest quality finish. Extra steps assure durable,
consistent finishes and long useful life.
Although we apply the finest available protective plating and/or
enamel coating to the surface of our products, these finishes
have limitations and in time may deteriorate either from
exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of
these finishes is, therefore, not a defect, but a normal process
which is unavoidable. Our company cannot accept responsibility
for finish deterioration in these circumstances; therefore, the
finishes cannot be guaranteed. These products will not be
refinished or replaced under our warranty should deterioration
of finishes occur. |
| Description |
ANSI No. |
Available on |
Bright Brass |
605 |
Dane |
Satin Brass |
606 |
Dane |
Satin Bronze |
612 |
Dane |
Satin Bronze Oil Rubbed |
613 |
Dane, Quantum |
| Bright Chrome |
625 |
Dane |
Satin Chrome |
626 |
Dane, Quantum, , Avalon |
Falcon M Series Non Keyed Lever
|
| Full T-Series Falcon catalog |
|
|

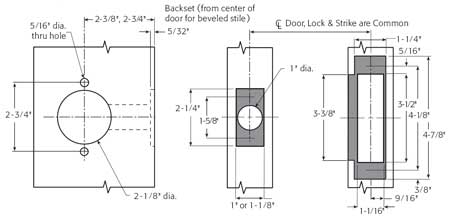

| Door thickness: |
1-3/8" to 2" standard. |
| Backset: |
2-3/4" standard. 2-3/8" also available. |
| Mechanism: |
Parts constructed of brass or cold formed steel, zinc
plated and dichromated for rust resistance. Springs are stainless steel. |
| Attachment: |
Lock chassis secured to door by two screws
which pass through a steel rose insert inside and thread directly
into the outer rose mounting assembly. |
| Handing: |
Locks are non-handed. |
| Cylinders: |
Drilled with 6-pin chambers, pinned in 5. Pinning in
6 chambers available when specified, at no cost. Cylinder
assemblies removable to rekey. Also available with 6 or 7-pin
interchangeable core cylinders. Cylinder housings and plugs
machined from solid brass. Springs are phosphor bronze.
Two nickel silver keys furnished standard. |
| Keyways: |
“G” keyway standard on standard cylinders. “A” keyway
standard on I/C core cylinders. Also available with some
optional keyways. |
| Trim: |
Roses are 3-1/2" diameter, heavy wrought brass or
bronze, installed over steel rose inserts which are through-bolted
through door. Levers are pressure cast (solid levers-no inserts)
material finished to match mating parts. |
| Latches: |
1/2" bolt projection. UL listed. Latches have selfadjusting
fronts to accommodate beveled or flat doors. 2-3/8"
backset with 2-1/4" x 1" latchfaces, 2-3/4" backset with
2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid
round bar stock DL bar preventing latch jamming and/or lock outs. |
| Strikes: |
4-7/8" x 1-1/4" ANSI strike with curved lip to meet
ANSI A115.2 door frame preparation standard. Consult Options
and Accessories section for other available strike size and
configurations. |
| Screws: |
Furnished with combination screws for use in wood
or metal doors and frames. |
| ANSI/BHMA: |
Meets ANSI/BHMA A156.2, Series 4000, Grade 2. |
| UL: |
1-1/2 hour B label. |
|
|
| Falcon Mortise Lock Specifications |
|
All locks shall meet the new ANSI/BHMA A156.2, Series
4000,Grade 1 for key-in-lever locksets. |
 |
|
Locksets shall be UL Listed (3 hour A Label). |
|
Locksets shall be provided standard with Pressure Release™ feature. When outside lever is locked, it is not rigid but will
move freely without operating the latch bolt. |
|
Lever trim shall have individual heavy-duty springs behind
rose for lever return and to prevent lever sag. Trim shall be
through-bolted with two (2) 10-32 screws coated with thread
sealant to provide strength and resistance to loosening. Inner
and outer trim shall “bottom out” to prevent door collapse.
Roses shall be minimum of 3-1/2" diameter. |
|
All lever designs shall be solid and meet the federal ADA and
state disability requirements. Inside levers shall be attached by
Allen-head set screw to prevent tampering or vandalism. |
|
Locksets shall adjust to fit door thickness from 1-3/4" to 2-1/8". |
|
All locksets shall be non-handed and not require field disassembly
for re-handing. |
|
Preparation for door must be non-handed. |
T SERIES DESCRIPTION |
|
1" Faceplate |
|
|
1" Faceplate w/ 1/4" Radius |
|
|
1-1/8" Faceplate |
|
|
|
|
|
Dummy Trim |
Single |
|
|
Single |
|
|
| Strikes |
| Furnished with a 4-7/8" ANSI strike unless specified otherwise. |
|
|
|
|
005164-000 |
Q001-046 |
Q001-049 (avaible on special order) |
Q001-048 (avaible on special order) |
ANSI Prep A115.2 |
T-Strike Square Corner |
Full Lip, Square Corner |
Full Lip, 1/4” Radius Corner |
| Latches—1/2" Projection, UL listed |
| Latches for B Series locks are
UL listed. |
| 2-3/4" backset standard. |
| 2-3/8" optional. |
| Unless otherwise specified, we
furnish a 2-1/4" x 1" x square
corner faceplate on 2-3/8"
backset latches and 2-1/4" x
1-1/8" x square corner on 2-3/4"
backset latches. |
|
|
|
| Square Corner
1/2" Projection |
1/4" Radius Corner
1/2" Projection (avaible on special order) |
A31727-005-00 link for 5"
backset. For use with 2 -3/8"
backset latches (avaible on special order) |
|
Questions and Answers
Q: can the Kaba peak removable core work with the Falcon B series A: Which specifi core from Kaba are you using? Q: What is Blockokey keying? A: All lock cylinders on a specific project are operable by a special "project key". Duplicates of this key may be assigned by the building contractor to workmen and subcontractors as required. No regular change keys or master keys are needed on the job. This eliminates the possibility of subsequent exposure from lost or stolen keys. Falcon’s Blockokey® System is used for extensive master key systems using conventional (non-I/C) cylinders and locksets.
Locks are shipped from the factory with a plastic “key block” in the back of every cylinder’s keyway. A shorter 4-pin “Project Key” operates all cylinders while the building is under construction.
When construction is complete, use the special KB536 extractor key (removal tool) to remove the key block from each cylinder, thereby voiding operation of the Project Key.
To order, specify “Blockokey” after the line item.
Example: 72 each D441 626 1AA - 72AA BlockokeyAn image provided by the manufacturer can be reviewed here:
