z2035

Name: Electrified Mortise Lock L9092EU (replaces L9080LD x EU) x 06 x A x 626 x RHR x standard fastener package - Schlage
Brand: Schlage
SKU: z2035
Price: 1167.42 USD

Electrified Mortise Lock L9092EU (replaces L9080LD x EU) x 06 x A x 626 x RHR x standard fastener package - Schlage

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,167.42 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15-20 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

SFIC Core C646 A 606 - Falcon

SFIC Core C646 A 606 - Falcon

Product Catalog

Cut Sheet

Questions and Answers

Q: What will happen if the voltage on an L lock goes above the 26V maximum range?

A: Applies to L9090EL/EU, L9091EL/EU, L9092EL/EU, L9093EL/EU, L9094EL/EU, L9095EL/EU:
Overvoltage will cause the lock to shut down for approximately 5 minutes to allow the circuitry to bleed off the excess voltage. There is no way to speed up this process.

Applies to L9080EL/EU. L9082EL/EU:
If left on continuous duty for long periods of time, the extra voltage and heat will degrade the circuit causing the lock to fail or behave erratically. If the lock does not run continuous, the lock will still degrade faster than usual, but the effects may not be noticeable for a longer period of time.

Q: Where is the Deadbolt Monitor, Latchbolt Monitor, RX Switch, EL/EU Switch and Motor Assembly located in an L9000 Electrified Lockcase?

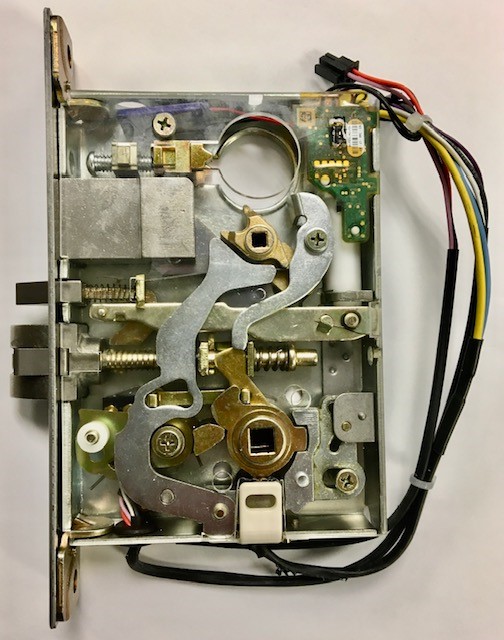

A: The Lock Case above is shown here with the Simultaneous Retractor in place:

View Image

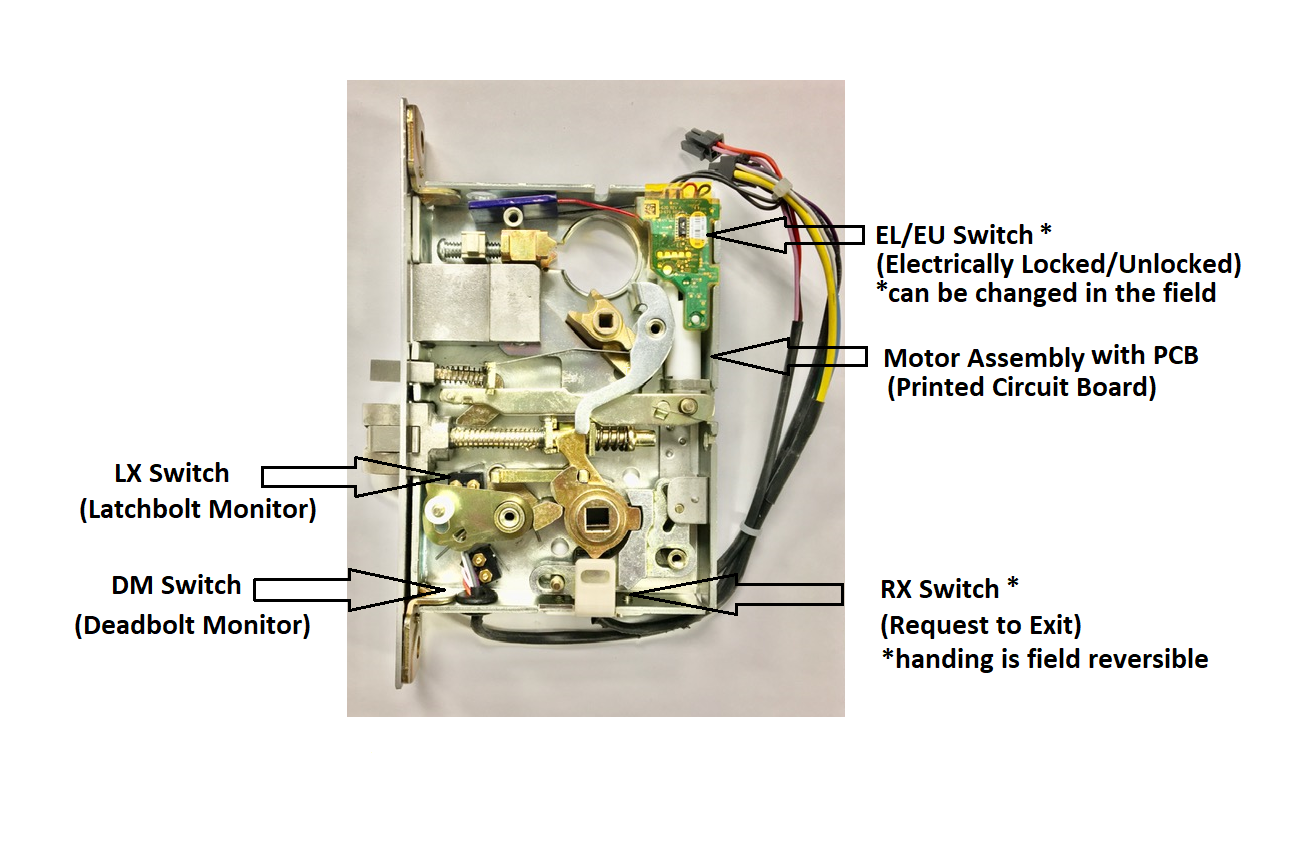

and here as a labeled image:

View Image

(Required, used to email you once question is answered.)
