Dorex 2610 L234 3

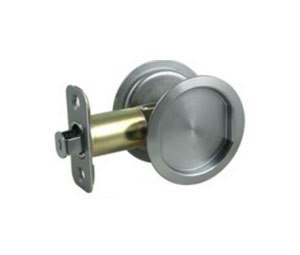

2610 L234 3 Round Pocket Door Latch with 2-3/4" Backset Passage Function - Polished Brass (3)

• Residential Auxiliary Lock
• Round Type
• For 1-3/8" (35 mm) to 1-3/4" (44.5 mm) door thickness
• 2-3/4" (70 mm) Backset
• Innovative pop-out pull latch
• The manufacturer states that this product fits standard 160 and 161 door prep. That is not entirely accurate. This unit will require a 2-1/8" cross bore at the appropriate backset according to the lockset you have ordered which will be either 2-3/8" or 2-3/4", the edge per the template is to be 1" (however our review would show a large bore of 15/16" would be more desirable) and then an edge preparation that would have a 2-1/4" tall x 1" wide faceplate with 1/4" radius corners. Please be mindful of these dimensional requirements when ordering this unit and if there are any questions regarding this please feel free to reach out to us at any time.
• Mounting hardware included: wood screws
• Material: Brass, Zinc die-cast
• Finish: Polished Brass (3)
• Dimensions: (Shown below)
• A (Diameter): 2-7/16" (62 mm)
• B: 1" (25.4 mm)
• C: 2-1/4" (57 mm)
• D: 7/16" (11.2 mm)
• E: 9/16" (14.3 mm)
• Box per 10. Price given per Each
