Dorbin HM-5 Pile Mill 34"

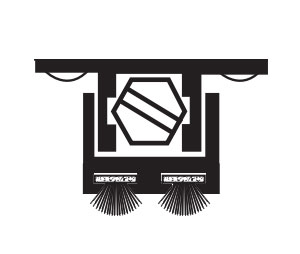

HM-5 Pile Mill 34" Mill Finish Aluminum Automatic Door Bottom with Pile Insert

• Automatic Door Bottom with Pile Insert

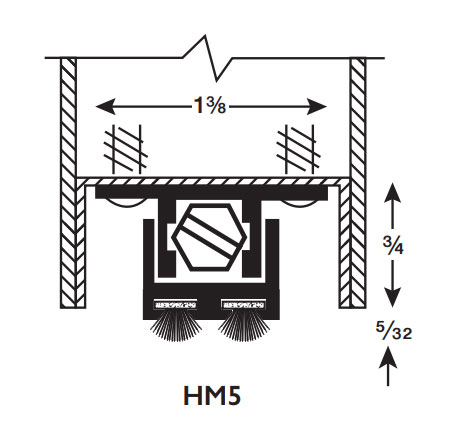

• Length: 34"
• Width: 1 3/8"
• Heigth: 3/4"
• Max. drop: 7/8"
• Material: Aluminum
• Finish: Mill
• Insert: Pile
• Full Mortise Mount Installation
• This door bottom is intended for installation in the bottom inverted channel of a hollow metal door
• Reversible (non- handed)
• May be trimmed 4" from lock end only
• Fire Rated: Door Bottom Seals for use on wood or steel doors in up to 3-hour locations
• Drilled for and supplied with screws for instalation. Available undrilled - please contact our sale department
• Application:
• Commercial Doors
• Interior and Exterior Weatherstripping Applications
• Extra's:
• Low Closing Force: This door bottom can be ordered in a Low Closing Force model
• Special Fasteners: #6 x 1/2" Pan Head Phillips Self Drilling Zinc Plated screws
  For any of these Special Extras, please contact or sales department directly.
