Dorbin HD-1-Ano. Aluminum 36"

copy to clipboard

Dorbin HD-1-Ano. 36" Anodized Aluminum Heavy Duty Automatic Door Bottom with Neoprene Insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dorbin HD-1-Ano. 36" Anodized Aluminum Heavy Duty Automatic Door Bottom with Neoprene Insert
Main ImageVideo Review Dorbin HD-1A
More from Dorbin
Price: $374.65 USD
Ships From
Comments (Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days.
Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.

+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

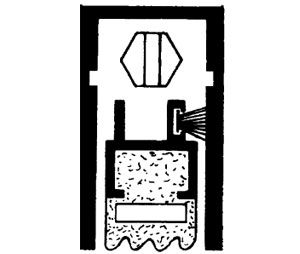

dorbin logo HD-1-Ano. 36" Anodized Aluminum Heavy Duty Automatic Door Bottom with Neoprene Insert

  • Heavy Duty Automatic Door Bottom with Sponge Neoprene Insert
  • Length: 36"
  • Width: 1"
  • Heigth: 1 11/16"
  • Material: Aluminum
  • Finish: Anodized
  • Insert: Closed Cell Sponge Neoprene Gasket
  • Surface Mount Installation
  • Reversible (non-handed)
  • May be trimmed 4" from lock end only
  • Maximum drop is 7/8"
  • Fire Rated: Door Bottom Seals for use on wood or steel doors in up to 3-hour locations
  • Drilled for and supplied with screws for instalation. Available undrilled - please contact our sale department
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications
  • Extra's:
    • Low Closing Force: This door bottom can be ordered in a Low Closing Force model
    • Special Fasteners: #6 x 1/2" Pan Head Phillips Self Drilling Zinc Plated screws
      For any of these Special Extras, please contact or sales department directly.

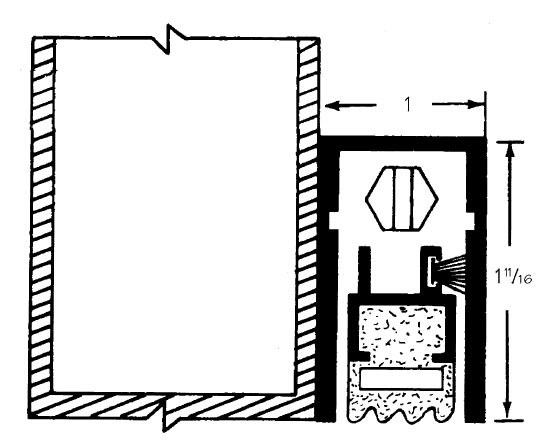

Dimensions
