Dorbin 94A Ano. 84" Anodized Aluminum Double Door Astragal


Dorbin 94A Ano. 84"

Dorbin 94A Ano. 84" Anodized Aluminum Double Door Astragal


Manufacturer: Dorbin
Price: $84.36






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 3 business days with $165.00 minimum purchase of Dorbin products or 10 business days for smaller orders.

Dorbin has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.


Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Dorbin
This item ships from IL.


dorbin

logo 94A Ano. 84" Anodized Aluminum Double Door Astragal

  • Double Door Astragal
  • Length: 84"
  • Width: 2"
  • Heigth: 1/8"
  • Material: Aluminum
  • Finish: Anodized
  • Drilled for and supplied with screws for instalation
  • Available undrilled - please contact our sale department.
  • Items are sold as each. If you need two pieces (as shown) be sure to order quantity 2
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications

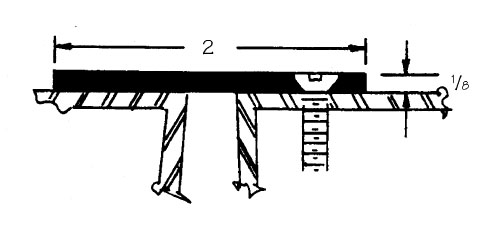

Dimensions
Dorbin
  Architectural Builders Supply product suggestions:



Hager 835S-MIL 84" Mill Finish Aluminum Astragal - Bar Type

Astragal - Bar Type, Material: Aluminum, Finish: Mill Finish, Length: 84", Width: 2", Height: 1/8"

Price: $35.77





National Guard Products 139SP 84" Steel Prime Coat Astragal Seal

Astragal Seal, Length: 84", Steel, Width: 2", Tickness: 1/8", ANSI/BHMA Certified, Fire Rated
NGP logo

Price: $59.65





Pemko Company 357C 84 Astragal 84 Inches

Astragal 84 Inches

Price: $45.18





Reese 183C 84" Astragal - Clear Anodized Aluminum

2" width by 1/8" rise

Price: $56.06





Zero 47A 84" Extruded Aluminum Astragal

Length: 84", Material: Extruded Aluminum, Astragal, Surface Mount

Price: $83.03


Questions and Answers
Q: I am trying to seal the vertical gap between French doors. With driving, horizontal rain, water channels down between the doors. Do you have an appropriate solution to recommend?

Images here:

View Image

View Image

View Image

View Image

View Image

A: It appears as if you could greatly benefit from the addition of an interlocking astragal and I would recommend the Reese 202-203C 84" Interlocking Weatherstrip - Clear Anodized Aluminum as seen here:

Click Here

I think that would give you a good seal on those doors but also it appears as if you do not have door bottoms or sweeps or some seal at the bottom of the door do you do appear to have drip caps which are certainly a good idea - i might look to remove those drip caps and while i would only do so if there was a net benefit and I think you might have a net benefit by adding the Reese 521C Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Clear Anodized Aluminum - Surface Mount as seen here:

Click Here

I would have course first suggest that you painted black to match.
