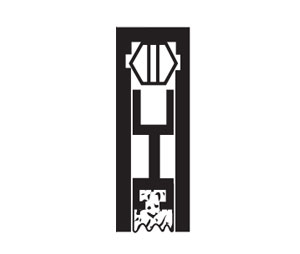

Dorbin 85-1D 36" Dark Brown Aluminum Automatic Door Bottom with Neoprene Insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dorbin 85-1D 36" Dark Brown Aluminum Automatic Door Bottom with Neoprene Insert
Main ImageVideo Review Dorbin 85-1D Dk. Brown Automatic Door Bottom
More from Dorbin
Price: $240.93 USD
Ships From
Comments (Optional)
Standard - ships in 1 business day.
Additional Declarations -

Dorbin has put into place extreme price increases and their material has become exceptionally expense and strongly urge you to consider Reese or Pemko as alternates.

1-844-809-3667

Sales
Technical Support
Product Description:

dorbin logo85-1D 36" Dark Brown Anodized Aluminum Automatic Door Bottom with Neoprene Insert

  • Automatic Door Bottom with Neoprene Insert
  • Length: 36"
  • Width: 19/32"
  • Heigth: 1 23/32"
  • Material: Aluminum
  • Finish: Dark Brown Anodized
  • Insert: Closed Cell Sponge Neoprene
  • This door bottom is intended for a surface mount installation
  • Reversible (non- handed)
  • May be trimmed 4" from lock end only
  • Maximum drop is 7/8"
  • Fire Rated: Door Bottom Seals for use on wood or steel doors in up to 3-hour locations
  • Drilled for and supplied with screws for instalation. Available undrilled - please contact our sale department
  • Application:
    • Commercial Doors
    • Interior and Exterior Weatherstripping Applications
  • Extra's:
    • Low Closing Force: This door bottom can be ordered in a Low Closing Force model
    • Special Fasteners: #6 x 1/2" Pan Head Phillips Self Drilling Zinc Plated screws
      For any of these Special Extras, please contact or sales department directly.

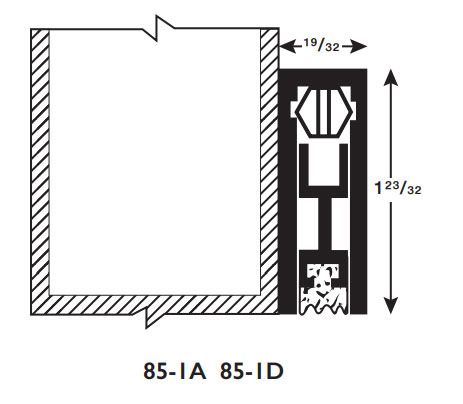

Dimensions
