Don-Jo CFK7015 630

Name: Don-Jo CFK7015 630 Satin Stainless Steel 6" CTC Pull with 3-1/2" x 15" Plate with 2-1/8" CFK Cut
Brand: Don-Jo
SKU: Don-Jo CFK7015 630
Price: 41.04 USD

Don-Jo CFK7015 630 Satin Stainless Steel 6" CTC Pull with 3-1/2" x 15" Plate with 2-1/8" CFK Cut

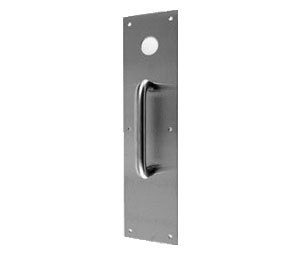

× This image is for a similar product but it will differ in size, color and/or other attributes.

Don-Jo CFK7015 630 Satin Stainless Steel 6" CTC Pull with 3-1/2" x 15" Plate with 2-1/8" CFK Cut

Video Review Don-Jo CFK7015 630 Satin Stainless Steel 6" CTC Pull with 3-1/2" x 15" Plate with 2-1/8" CFK Cut

Price: $41.04 USD

Comments (Optional)

Insert Door Thickness if other than 1-3/4" (Optional)

ADD TO CART

In Stock (No Minimums):

2 - Type 1 - Thru Bolt for Wood & Metal Doors (standard)

For quantities beyond the "In Stock" above, the item(s) ships in 2 business days.

Don-Jo has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Satin Stainless Steel 6" CTC Pull with 3-1/2" x 15" Plate with 2-1/8" CFK Cut

Pull Plate
Finish: Satin Stainless Steel
Includes Type 15 Pull with Type 70 Plate and standard mounting supplies
Pull features

Type 15
Center to Center (CTC) length: 6"
Diameter: 3/4"
Clearance: 1-1/2"
Projection: 2-1/4"
Mounting options:

Type 1 - Thru Bolt for Wood & Metal Doors (Standard)
Type 2 - Surface Concealed for Wood Doors
Type 3 - Back to Back - for Wood & Metal Doors (1/4-20 x 2-1/2" MS)
Type 4 - Thru Bolt - for Glass Doors
Type 5 - Back to Back fro Glass Doors
Type 6 - Surcace Concealed for Metal Doors

Plate features

Type 70
Dimensions: 3-1/2" x 15"
Thickness: 0.05"
4 edges beveled
Hole Size: CFK 2-1/8"
All holes are 2-1/2" on center from the end of the plate standard, but can be varied.
For other than standard Cut location please attach a sketch or enter it in the Comments field
Mounting: #6 x 5/8" OH SMS

Options: 2-1/2" clearance is also available. Enter 2-1/2" Celarance in Comments field if this clearance is needed.
Other plate sizes are available. Feel free to contact us with your requirements
