Don-Jo CFC7115 630

copy to clipboard

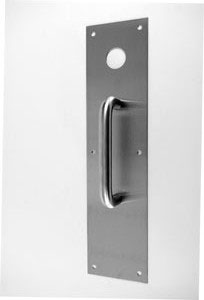

Don-Jo CFC7115 630 Satin Stainless Steel 6" CTC Pull with 4" x 16" Plate with 1-1/4" CFC Cut

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Don-Jo CFC7115 630 Satin Stainless Steel 6" CTC Pull with 4" x 16" Plate with 1-1/4" CFC Cut
More from Don-Jo
Price: $41.18 USD
Ships From
Comments (Optional)
Insert Door Thickness if other than 1-3/4" (Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s) ships in 2 business days with $80.00 minimum purchase of Don-Jo products or 10 business days for smaller orders.

Don-Jo has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Satin Stainless Steel 6" CTC Pull with 4" x 16" Plate with 1-1/4" CFC Cut
  • Pull Plate
  • Finish: Satin Stainless Steel
  • Includes Type 15 Pull with Type 71 Plate and standard mounting supplies

  • Pull features
    • Type 15
    • Center to Center (CTC) length: 6"
    • Diameter: 3/4"
    • Clearance: 1-1/2"
    • Projection: 2-1/4"
    • Mounting options:
      • Type 1 - Thru Bolt for Wood & Metal Doors (Standard)
      • Type 2 - Surface Concealed for Wood Doors
      • Type 3 - Back to Back - for Wood & Metal Doors (1/4-20 x 2-1/2" MS)
      • Type 4 - Thru Bolt - for Glass Doors
      • Type 5 - Back to Back fro Glass Doors
      • Type 6 - Surcace Concealed for Metal Doors

  • Plate features
    • Type 71
    • Dimensions: 4" x 16"
    • Thickness: 0.05"
    • 4 edges beveled
    • Hole Size: CFC 1-1/4"
    • All holes are 2-1/4" on center from the end of the plate standard, but can be varied.
    • For other than standard Cut location please attach a sketch or enter it in the Comments field
    • Mounting: #6 x 5/8" OH SMS

  • Options: 2-1/2" clearance is also available. Enter 2-1/2" Celarance in Comments field if this clearance is needed.
  • Other plate sizes are available. Feel free to contact us with your requirements
