Detex ECL-230D

copy to clipboard

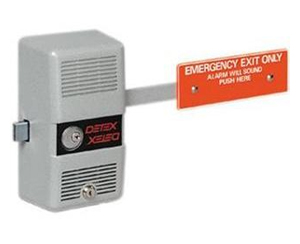

Detex ECL-230D Alarm Exit Control Lock

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Detex ECL-230D Alarm Exit Control Lock
More from Detex
Price: $349.29 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1-2 business days.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-773-809-3667

Sales
Technical Support
Product Description:



detex logo ECL-230D Alarm Exit Control Lock
  • Code compliant
  • Non-handed
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Single point, 1" throw dead bolt
  • Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-230D is 20"
  • Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
uired

Exit Control Lock Function

  • Panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits
  • Attack resistant design withstands over 2200 lbs. of outside pull force
  • Reduces employee and customer theft
  • Locking and unlocking the dead bolt always arms and disarms the alarm
  • Resetting the alarm can only be accomplished with a control key
Handed arm is field-reversible
Installation
  • Easy to install
  • Straightforward operation that everyone understands
Questions and Answers
Q: Do you have the control housing with circuit board for the Detex panic hardware ECL-8050. Thank you David
A: We do not - I am sorry to report the Detex ECL-230D Alarm Exit Control Lock was discontinued is approx 2005 and there are no available parts for this model.

A reasonable substitution I can offer you is the Detex V40EH and it's specifications and details can be reviewed on the Catalog page here:

Click HereThe Installation Instructions here:

Click Here

and the ordering matrix here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
