A: B500 with standard cylinders:

How to order with the deadbolt:

Door thickness over 1 3/4" to 2 1/4", specify door thickness when deadbolt is ordered

Door thickness greater than 2 1/4" will require a special order submission through the RFQ process

How to order parts when the deadbolt was already purchased:

B560P & B563P for over 1 3/4" to 2 1/4" require parts 61-501 (screwpack) & B520-652 (tailpiece)

B562P for over 1 3/4" to 2 1/4 require parts 61-503 (screwpack) & longer tailpieces

Classic non-Modular cylinders require 2 each B600-046 tailpieces Everest/Primus/Classic Modular cylinders require 2 each B600-086 tailpieces B500 with interchangeable core

How to order with the deadbolt:

Door thicknesses from 1 3/8" to less than 1 5/8": Specify door thickness when deadbolt is ordered

Door thicknesses greater than 2" will require a special order submission through the RFQ process How to order screw packs (kits):

B560GD, B563GD, B560R, & B563R for 1 3/8" to less than 1 5/8" require a blocking ring Order a 36-066 & 36-068

B562GD & B562R for 1 3/8" to less than 1 5/8" require blocking rings Order TWO EACH 36-066 & 36-068

B500 keyless

How to order with the deadbolt:

Door thicknesses over 1 3/4" to 2 1/4": Specify door thickness when deadbolt is ordered*

Door thicknesses greater than 2 1/4" will require a special order submission through the RFQ process

How to order screw packs (kits):

B571 & B581 for over 1 3/4" to 2 1/4 require part 61-505

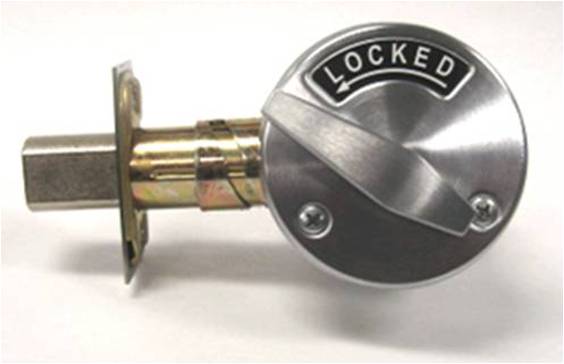

A: This can be done but will require a submission through the RFQ process.The Schlage B500 and B600/700/800 deadbolts have an inside indicator rose option for select functions. The indicator reads "LOCKED" with an arrow showing the direction the thumbturn must be rotated to throw the deadbolt. The occupants in the room know the deadbolt is thrown and the door secured if the thumbturn is located in the direction of arrow - see Figure 1 here:

View Image

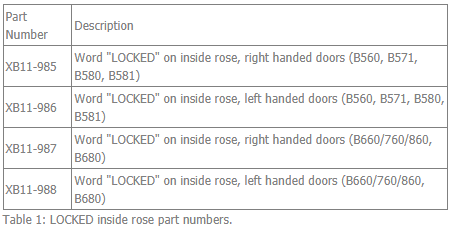

The LOCKED inside rose is available for the B560, B571, B580, B581, B660, B760, B860, and B680. The part numbers are listed in Table 1 and are handing specific.

Please see the table here:

View Image
