DCI PS17-TD2
DCI PS17-TD2 Standard Access Control Power Supply/Charger - Time Delay System for all Special Locking Arrangements - Powder Coated Gray
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,015.83 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 7
For quantities beyond the "In Stock" above, the item(s)
ships in 10 business days.
Additional Declarations -
DCI is a preferred vendor of ABsupply because of their no-nonsense approach to receiving and shipping orders promptly, reliably and predictably.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
DCI PS17-TD2 Standard Access Control Power Supply/Charger - Time Delay System for all Special Locking Arrangements - Powder Coated Gray
Features:
The DCI PS17 is a power limited power supply that will convert 115VAC/60Hz input into two individually PTC protected 12VDC or 24VDC outputs.
It is intended for use in applications requiring UL Listing for Access Controls (UL294) and applications requiring an interface with Fire Alarm Control Panels.
Field selectable: Delayed Egress, Access-controlled Egress, or no delays (a standard power supply).
NEMA 1 enclosure supplied with keyed cabinet lock, and terminals for external backup.
Input: 120 VAC / 60 Hz, 0.6A.
Output: 12 or 24 VDC at 1.75 A, field-selectable.
Filtered and electronically regulated DC outputs.
Overcurrent protection on each output circuit.
One NO and one NC, externally triggered by Fire Alarm Relay, if desired.
Auxiliary DC output circuit, not triggered, overcurrent protected.
Terminals for Fire Alarm Relay connection.
A built-in charging circuit automatically charges backup batteries.
Finish: Powder Coated Gray
Made in Michigan USA
Listings:
UL Listed for Access Controls UL294, NEC Class 2
Available Finishes:
Powder Coated Gray
Additional Files:

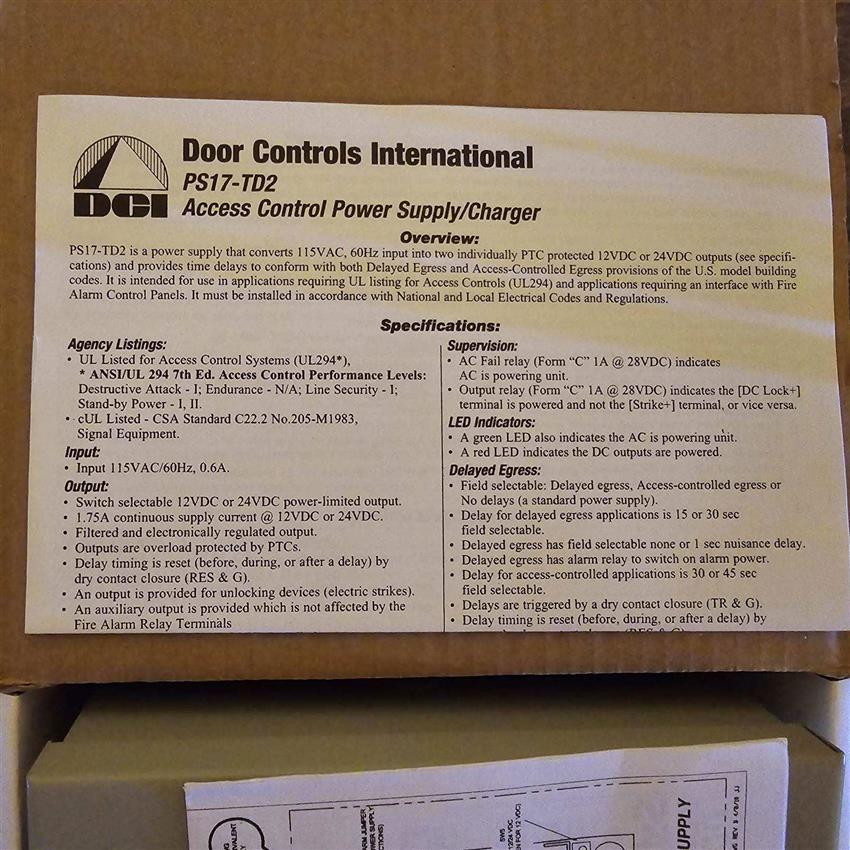

Product Information
Installation Instructions
Power Supply

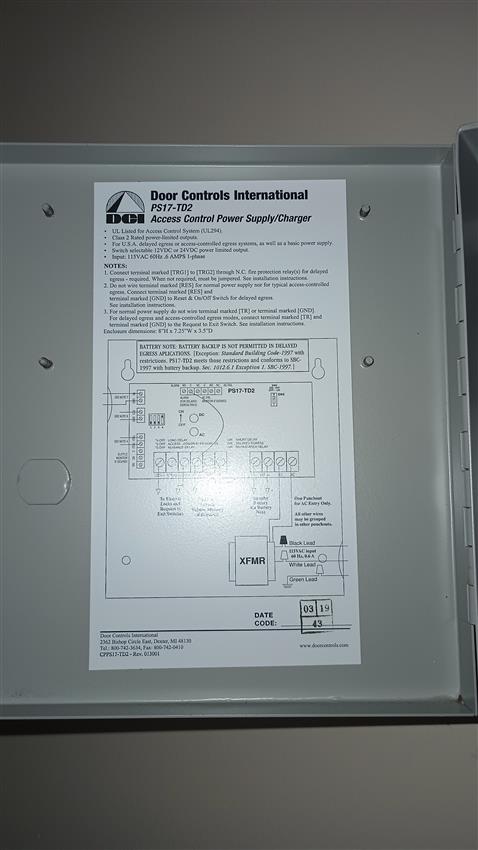

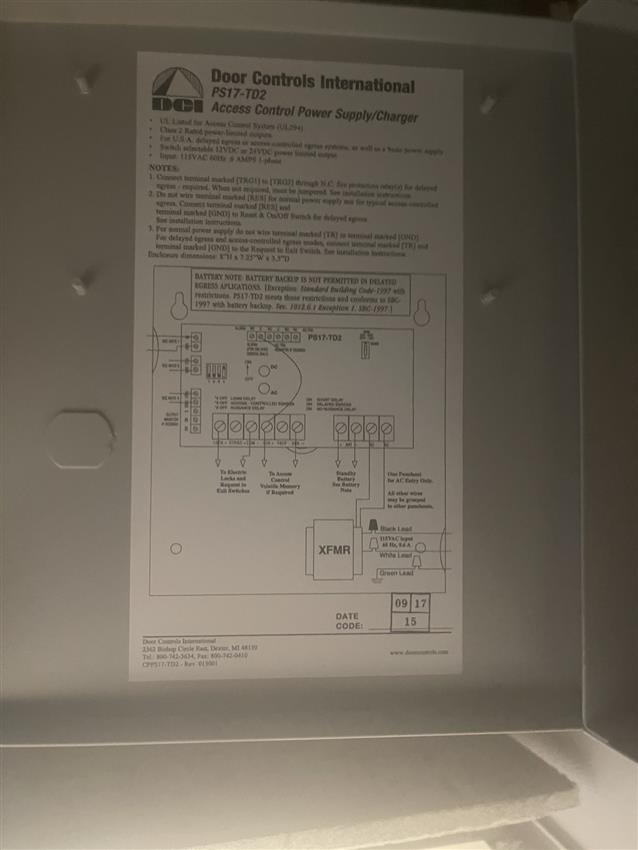

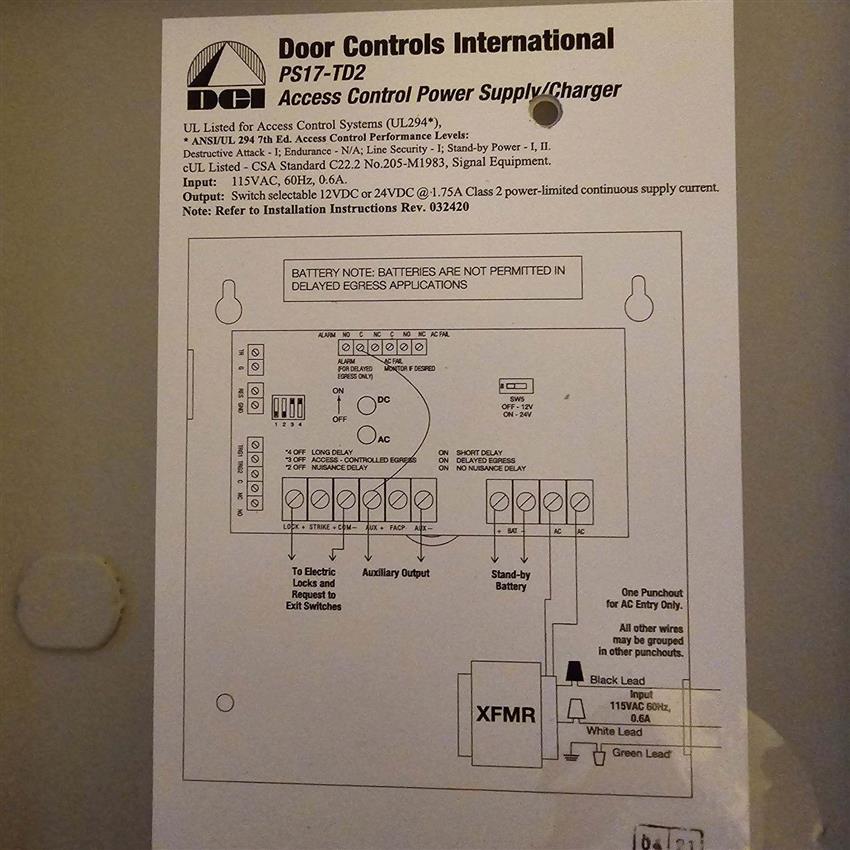

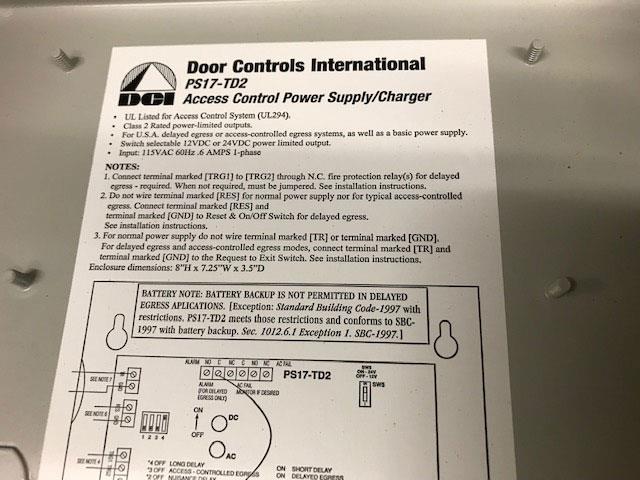

Wiring Diagram

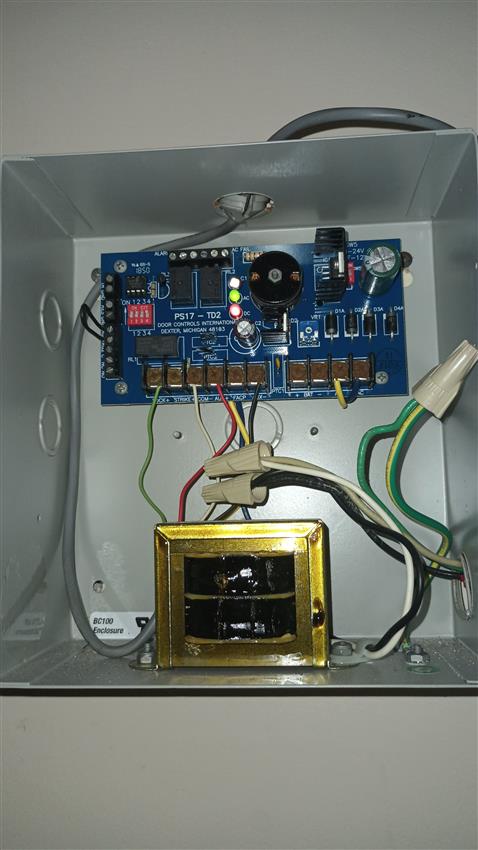

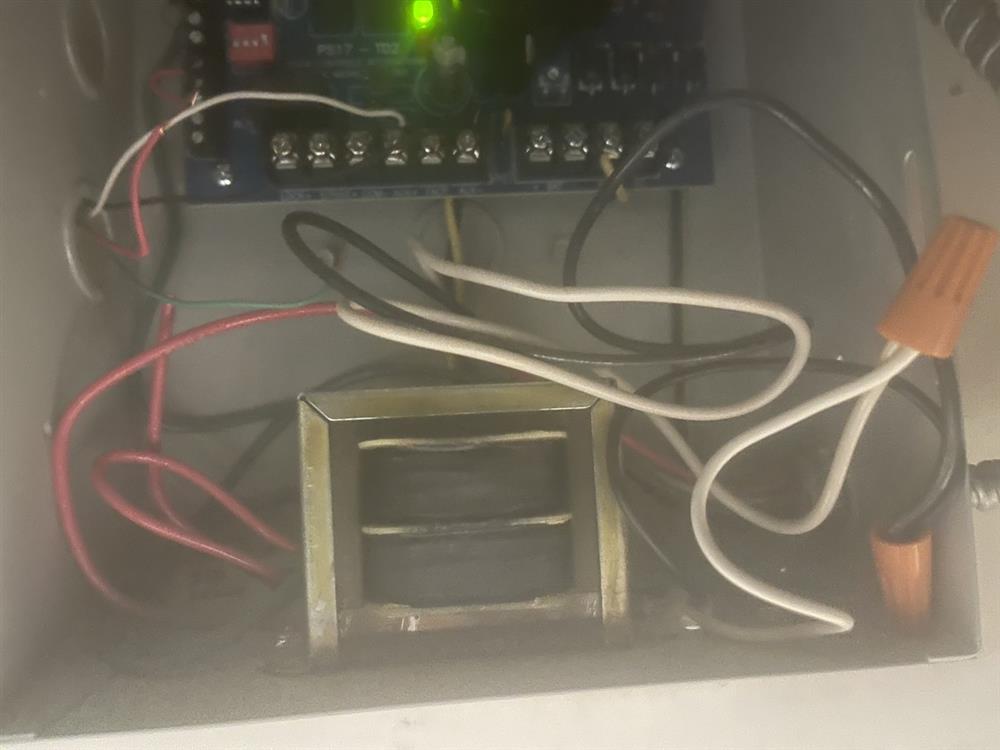

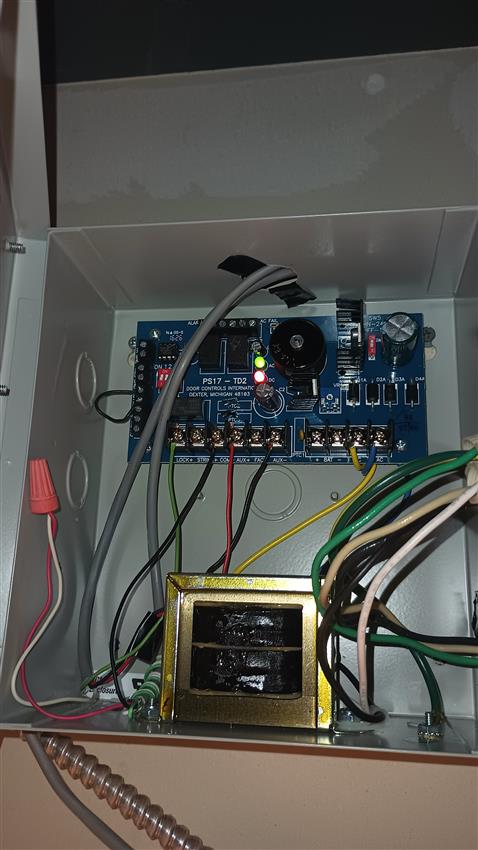

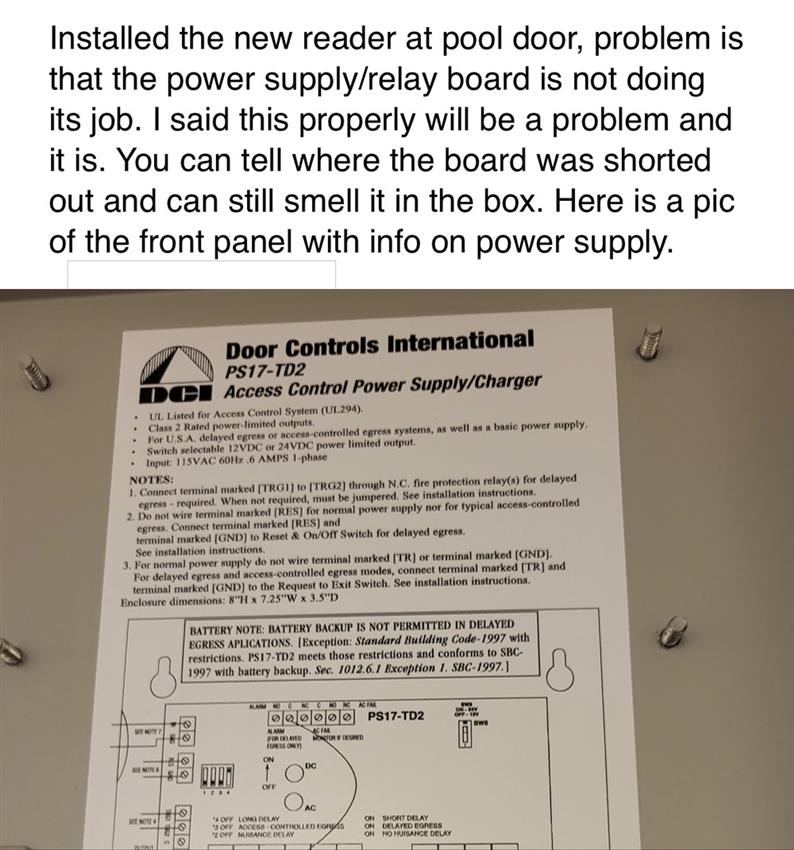

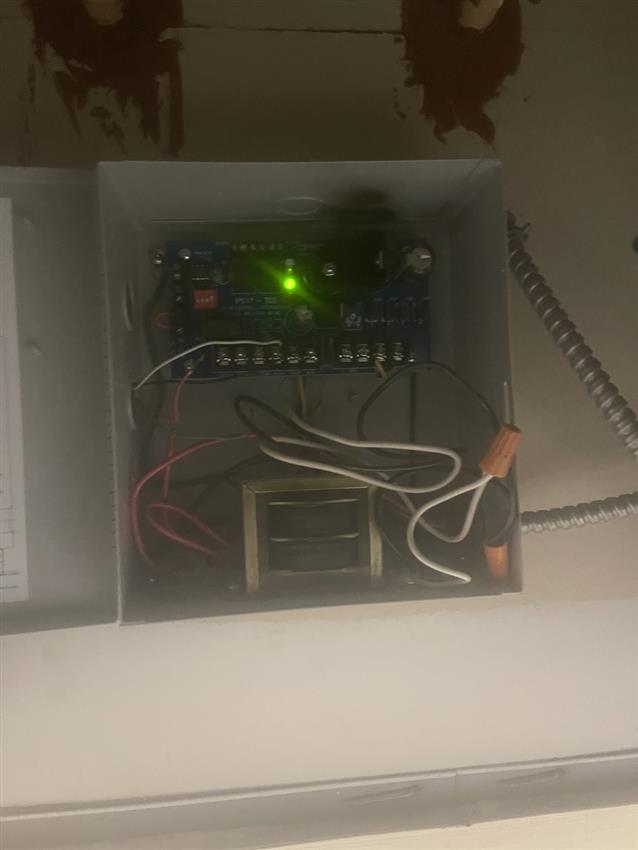

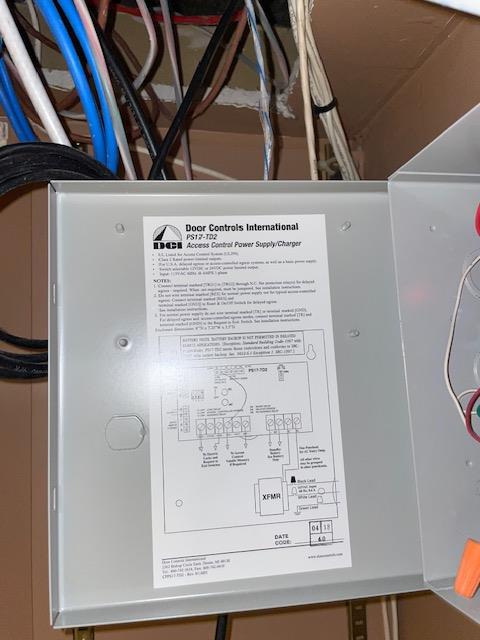

Customer Images:
