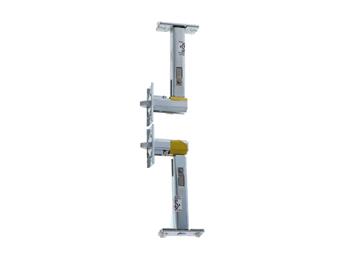

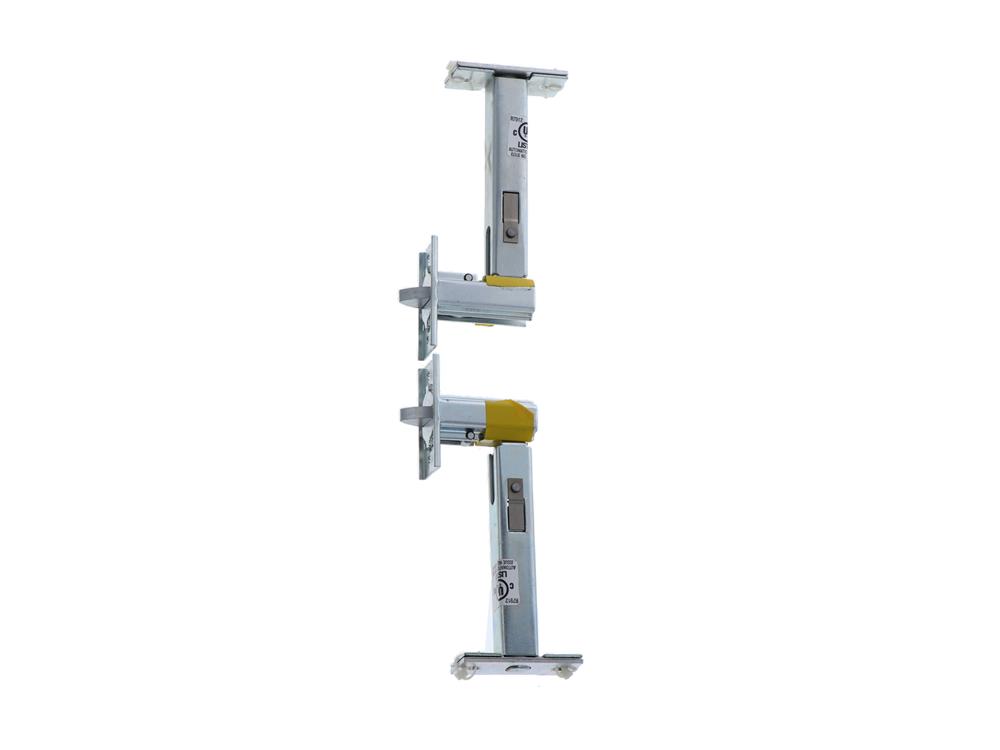

DCI 962 US32D

Features:

• Automatic Flush Bolts Set UL Listed for Wood Doors
• Patented.
• Tested over 1 Million Cycles.
• Opening active door retracts top and bottom bolts. Closing active door extends top and bottom bolts into frame and sill strikes, locking inactive door.
• Non-Handed; it is not necessary to reverse either top or bottom bolt.
• Low closing force with patented free-floating cams and swivel face to accomodate for beveled doors.
• Override feature which prevents damage to door or bolts should the bolt heads be prevented from entering top or bottom strike.
• Positive high-temperature latch.
• The prep adds stability to the wood door by eliminating the core removal at the corners preventing delamination and or breakage.
• Engineered to function in high-frequency areas with minimum maintenance.
• Trim Packages are available to reduce inventory levels.
• Finish: Satin Stainless Steel
• Made in Michigan USA

Listings:

• UL Listed, No. R7912
• Certified to ANSI/BHMA A156.3-2008, Grade 1, Type 25
• UL Listed 1-1/2-hour Fire Rating for use on Wood Doors measuring up to 4' x 9'
• Conforms to Positive Pressure Standards UL 10C & UBC 7-2 (1997)

Available Finishes:

• US Standard:US3, US4, US10, US10B, US26, US26D, US32, US32D
• BHMA Standard:605, 606, 612, 613, 625, 626, 629, 630
