DCI 655-672 US28

Features:

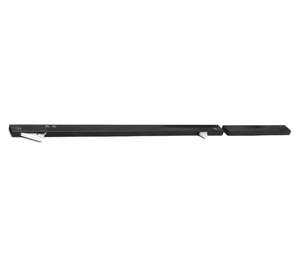

• 52" 600 Series Coordinator complete with mechanism and filler
• Widely used to control closing cycles of active doors equipped with or without astragals or rabbeted door edges, and inactive doors equipped with vertical rod exit devices or automatic and selflatching flush bolts.
• Provides a smooth, quiet, invisible, and tamper-proof means of controlling the closing sequence of active and inactive doors.
• The maximum projection of the hold open lever and trigger is only 1-1/8", thus the Coordinator and Filler are virtually invisible and appear to be an integral part of the frame opening.
• Non-Handed for easy ordering and installation.
• Adjustable for various closing speeds, and different door weights.
• Engineered to function in high-frequency areas with minimum maintenance.
• Manufactured with an over-ride feature to prevent damage to doors, and hinges.
• Fillers are factory cut and supplied with the coordinator to extend the width of the frame.
• Maximum Active Door Width: up to 48"
• Total Width of Opening: 55" to 72"
• Finish: Powder Coated Grey
• Made in Michigan USA

Listings:

• UL Listed, No. R10849
• Certified to ANSI/BHMA A156.3-2008, Grade 1, Type 21, 21A
• Cycle tested (100,000) under UL Supervision
