CRL Z406GP

Name: CRL Z406GP Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass - Gold Plated
Brand: C. R. Co., Inc.
SKU: CRL Z406GP
Price: 14.44 USD

CRL Z406GP Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass - Gold Plated

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL Z406GP Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass - Gold Plated

Price: $14.44 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Los Angeles, CA Qty: 103

Secaucus, NJ Qty: 1

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass - Gold Plated

For 1/4" (12 mm) and 5/16" (8 mm) Glass
Replacement Gaskets are Available by Ordering CRL Cat. No. Z14RG
Base Metal: Zinc Casting
Steel Pin Available for Additional Glass Support
Finish: Gold Plated

Cut Sheet

Function

This CRL Z-Series Round Type Flat Base Glass Clamps are tested and engineered to meet and exceed code standards.

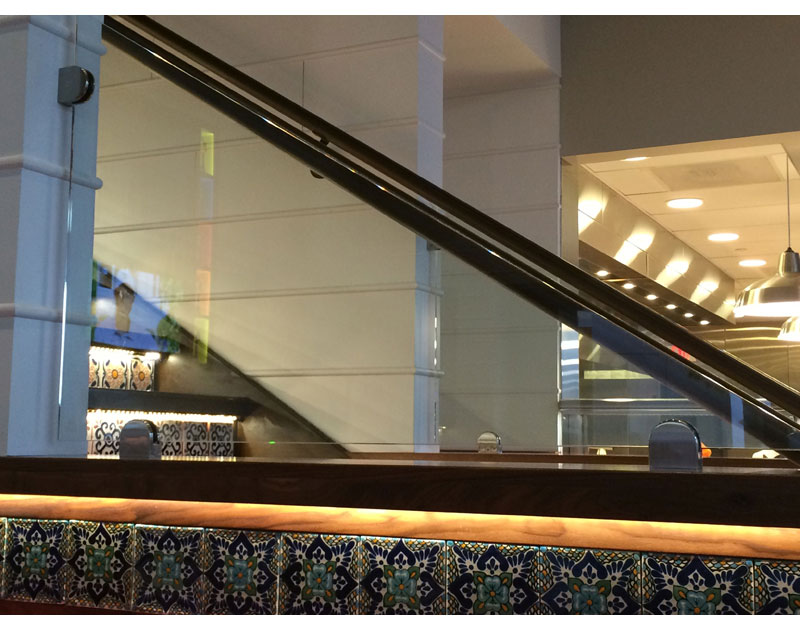

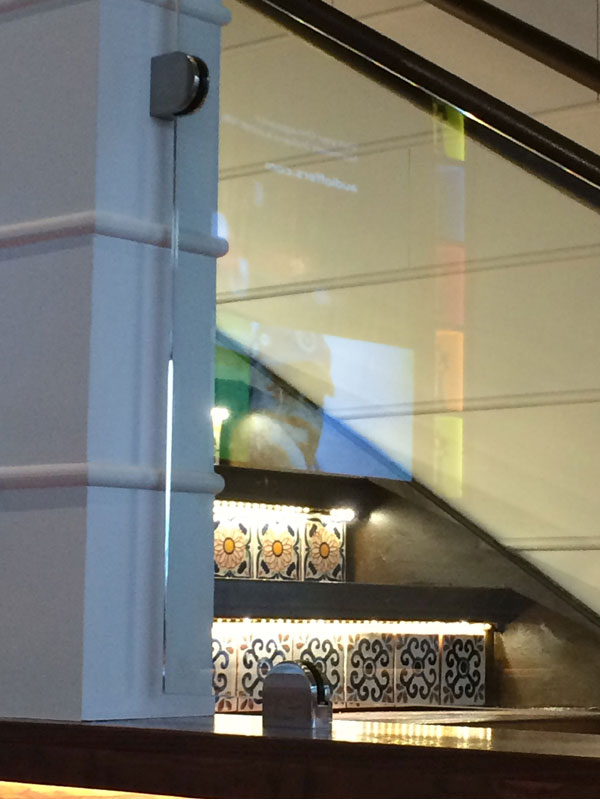

Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
Sold By the: Each, Minimum Order: 1 Each

Additional Product Information

NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2" (12 mm) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut.
SPECIFICATIONS:
Glass Thickness: Models for 1/4" to 1/2" (6 to 12 mm).
For Use With:Square Tubing or Other Flat Surfaces.
Base Design: Flat
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
