CRL V1E180PN

Name: CRL V1E180PN Vienna 180 Series 180 Degree Glass-to-Glass Hinge - Polished Nickel
Brand: C. R. Co., Inc.
SKU: CRL V1E180PN
Price: 99.92 USD

CRL V1E180PN Vienna 180 Series 180 Degree Glass-to-Glass Hinge - Polished Nickel

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL V1E180PN Vienna 180 Series 180 Degree Glass-to-Glass Hinge - Polished Nickel

Price: $99.92 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Los Angeles, CA Qty: 156

Dallas, TX Qty: 55

Union City, CA Qty: 56

Atlanta, GA Qty: 94

Secaucus, NJ Qty: 288

Boston, MA Qty: 63

Orlando, FL Qty: 6

Denver, CO Qty: 24

Seattle, WA Qty: 3

Moorestown, NJ Qty: 10

Phoenix, AZ Qty: 9

Las Vegas, NV Qty: 12

Houston, TX Qty: 16

Miami, FL Qty: 60

San Diego, CA Qty: 9

Long Island Qty: 15

Carolina, SC Qty: 23

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Vienna 180 Series 180 Degree Glass-to-Glass Standard Hinge - Polished Nickel

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
Three Year Warranty
180º Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
Finish: Polished Nickel

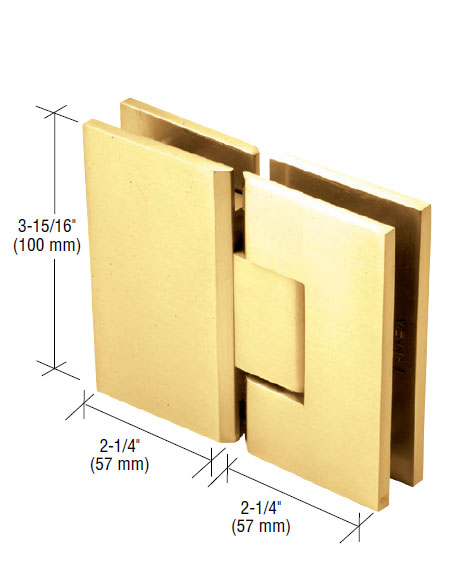

Cut Sheet

Click to Enlarge
Image shows a satin brass finished hinge.

Function

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges.
For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place.
This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed.
This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

Additional Product Information

Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Vienna Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
