CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance. - Self Closing Deluxe Service Window
- Assembled and Unglazed, Vinyl for 1/4" Glass
- XO Clerkside (X=sliding panel)
- Thumb Turn and Self-Latching Handle
- Without Screen
- Product Details
- Finish: Satin Anodized

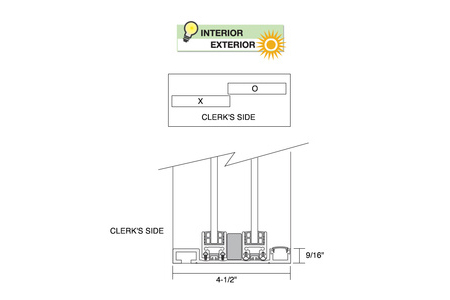

- Frame Depth (Inches): 4-1/2"
- Glazed: Yes
- Glazing Thickness (Inches): 1/4"
- Glazing type: Tempered Glass
- Handle Type: Self Latching
- Frame Material: Aluminum
- Screen: No
- Features
- Full Bottom Track with Manual Open/Self-Close
- Security Feature: Thumbturn Lock with Indicator
- Sill Condition: Full Bottom Track
- Popular 47-1/2" W x 43-3/4" H Frame Size fits 48x44 Opening
- Usage: Interior and Exterior
- Similar: DW1800A, DW4200A, SCDW1801A, SCDW48360XUA
- Heavy Duty Service Windows are not designed to be primary building seal for severe weather conditions
- Other Available Options
- Available Configurations: OX, XO, XX, OXXO, OXO, XOX
- Available Glazing Thickness: 1/4" (6 mm) and 1/2" (12 mm)
- Available Glazing type: Tempered Glass, Wire, Tinted, Laminated, Insulating 1/2" (12 mm) or 5/8" (16 mm)
- Available With or Without Screen
- Available Frame Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Paint (Specify Color), Custom Kynar Paint (Specify Color)
- Available Options: Keyed Lock, Burglar Bar, Full Bottom Track, Open Counter Area, Deal Tray, Stainless Steel Shelf, Laminated Shelf, Surrounding Frames to Form Side Lites, Transoms to Fill Large Openings, Fly Fan Switch
- Deluxe Series Window With Screen Includes: Heavy-Duty Anti-Lift Ball Bearing Carrier, Removable Header Access Panel, Self-Latching Handle, Screen Rides on Nylon Rollers, Vinyl Track (No Metal-to-Metal Rubbing)
- Deluxe Series Window Without Screen Includes: Poly-Pile Weatherstripping with Fin, Vinyl Guides for Screen (No Metal-to-Metal Rubbing), Optional Keyed Lock, Channel Cap on No-Screen Models
- For any of these options, details or other questions please feel free to contact us
|
|
