CRL REG037CH

Name: CRL REG037CH Regal 037 Series Wall Mount Hinge - Polished Chrome
Brand: C. R. Co., Inc.
SKU: CRL REG037CH
Price: 112.78 USD

CRL REG037CH Regal 037 Series Wall Mount Hinge - Polished Chrome

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL REG037CH Regal 037 Series Wall Mount Hinge - Polished Chrome

Price: $112.78 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Union City, CA Qty: 2

Atlanta, GA Qty: 2

Secaucus, NJ Qty: 12

Boston, MA Qty: 2

Seattle, WA Qty: 6

Phoenix, AZ Qty: 4

Houston, TX Qty: 5

Carolina, SC Qty: 2

Los Angeles, CA Qty: 96

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Regal 037 Series Wall Mount Hinge - Polished Chrome

Wall Mount
Adjustable After Door is Installed
Three Year Warranty
Regal Hinges are Not Available in Europe
Finish: Polished Chrome

Product Information

Cut Sheet

Click to Enlarge

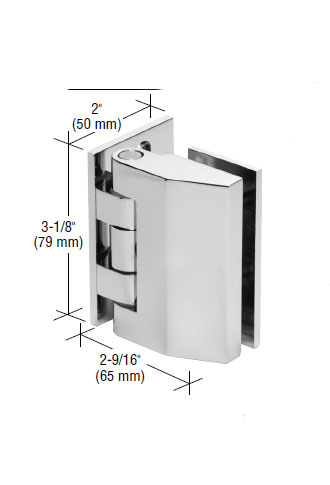

Image shows a polished chrome finished hinge.

Function

The CRL Regal Adjustable Hinge is unique in design and function. The Wall Mount Model requires only two holes in the door (no cut-out). The Glass-to-Glass Model only requires four holes per Hinge (two in the door and two in the fixed panel). The Regal Hinge offers an adjustable closing angle from 0º to 90º.
After the door is installed, simply loosen the Allen screw adjustment, position the door to the desired closed position, and tighten the Allen screw. You have now solved the problem of walls not meeting the door at the perfect 90º angle. This adjustment feature means that a single Glass-to-Glass model can accommodate angles from 90º to 180º.

Additional Product Information

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm). Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).
NOTE: REG037 and REG180 are not available in Europe.
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90º Outward Only (Requires Stop)
Closing Type:Precise Closing to 0º.
No Cut-Out Required; Requires Two Holes Only Per Glass Panel.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
