CRL P1N380SB

Name: CRL P1N380SB Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Hinge - Satin Brass
Brand: C. R. Co., Inc.
SKU: CRL P1N380SB
Price: 119.32 USD

CRL P1N380SB Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Hinge - Satin Brass

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL P1N380SB Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Hinge - Satin Brass

Price: $119.32 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Seattle, WA Qty: 8

Houston, TX Qty: 2

San Diego, CA Qty: 2

Los Angeles, CA Qty: 21

Union City, CA Qty: 5

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Pinnacle 380 Series Adjustable 180 Degree Glass-to-Glass Standard Hinge - Satin Brass

Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Several Beautiful Finishes
Three Year Warranty
Adjustable 180º Glass-to-Glass
Finish: Satin Brass

Product Information

Cut Sheet

Click to Enlarge

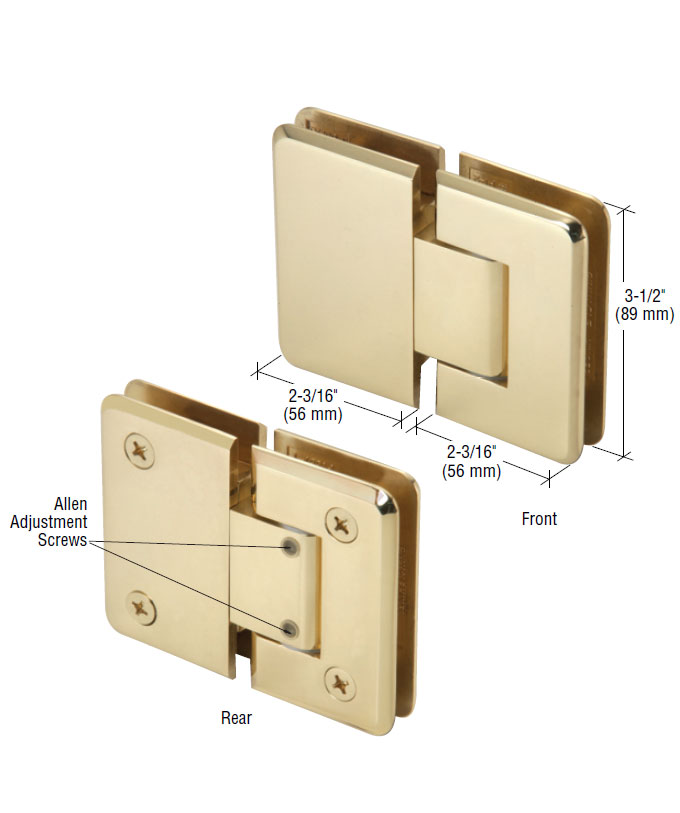

Image shows a satin brass finished hinge.

Function

CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed.
Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position.
The door can swing 90º inward and 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction).
For doors pulling outwards only(using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.

Additional Product Information

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90º without having to take door down.
Construction: Solid Brass
Hinge Swings: 90º in and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions
