CRL LLPA48BS

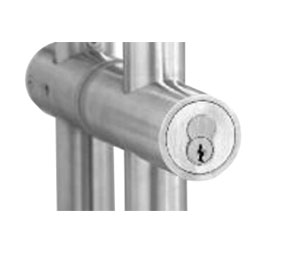

Name: CRL LLPA48BS 48" Locking Ladder Pull - Brushed Stainless
Brand: C. R. Co., Inc.
SKU: CRL LLPA48BS
Price: 1217.32 USD

CRL LLPA48BS 48" Locking Ladder Pull - Brushed Stainless

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL LLPA48BS 48" Locking Ladder Pull - Brushed Stainless

Price: $1,217.32 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Union City Qty: 1

Rock Hill Qty: 10

Atlanta Qty: 22

Orlando Qty: 8

Moorestown Qty: 4

Hamilton Qty: 3

Phoenix Qty: 6

Los Angeles Qty: 295

Denver Qty: 7

Sunrise Qty: 32

Taunton Qty: 6

Dallas Qty: 12

Tampa Qty: 3

Las Vegas Qty: 27

Houston Qty: 7

Kent Qty: 13

Secaucus Qty: 21

Solon Qty: 8

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

CRL LLPA48BS 48" Locking Ladder Pull - Brushed Stainless

For 1/2" to 3/4" (12 to 19 mm) Glass
Overall Length: 48"
Glazing Thickness: 3/4"
Locks Into the Floor Only
Lock Operates at a Comfortable 42" (1067 mm) Above the Floor
Glass Cut Out Required, Push/Pull Indicators in Complementary Finishes are Available
1-1/4" (32 mm) Diameter Alloy 316 Brushed Stainless Steel Tubing
ADA Compatible Thumbturn
2 Mounting Points
Back to Back Mounting
Finish: Brushed Stainless
Adaptor kit for 1-3/4" thick doors avaialable as CRL LLPA134ADT

Function

Our CRL 48" (1219 mm) Locking Ladder Pulls have a fully concealed deadbolt locking mechanism that is operated at 42" (1067 mm) above the floor. No need to bend, simply turn a key or thumbturn located at a comfortable height above the finished floor to lock or unlock your doors.
This Locking Ladder Pull is supplied with our standard 7-pin Rim Cylinder with Interchangeable Core, that can be used as the final cylinder or as a temporary, and is easily replaced. If staying with the 7-pin format, just remove the core, have it re-keyed, or replace it with a new one. A selection of 7-pin Cores are available. If proprietary 6-pin Cylinders are required, simply remove the entire Rim Cylinder provided and replace with the proper Rim Cylinder of your choice. This Ladder Pull will accept most standard manufactured Rim type cylinders.
Sold By the: Set, Minimum Order: 1 Set

Template

Installation Instructions

Lock Indicator

Click to enlarge image

Questions and Answers

Q: do they have a non locking pull

A: CRL does in fact and it is the CRL 48LPBS 48" Extra Length Ladder Style Back-to-Back Pull Handle - Brushed Stainless as seen here:

Click Here

Q: On the locking version, at what height is the lock placed?

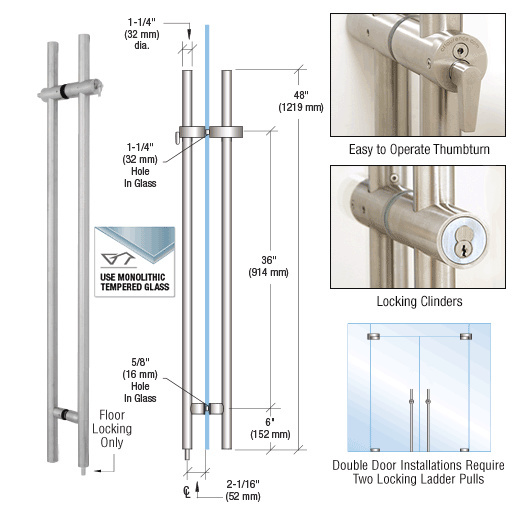

A: The height of the cylinder is 42” from the bottom of the door pull as seen in the manufacturer's technical drawing here:

Download File

Does this adequately answer your question?

Q: replacment parts

A: It is unlikely that VCRL produces or makes available replacement parts for the CRL LLPA48BS 48" Locking Ladder Pull - Brushed Stainless, however please let us know what replacement parts you require and we will work with the manufacturer and advise.
