CRL LK54KA Keyed Alike Track Plunger Lock - Nickel Plated

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
CRL LK54KA Keyed Alike Track Plunger Lock - Nickel Plated
Main ImageVideo Review CRL LK54KA Keyed Alike Track Plunger Lock - Nickel Plated
More from C. R. Co., Inc.
Price: $7.11 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Los Angeles, CA Qty: 1513
Dallas, TX Qty: 210
Union City, CA Qty: 6
Atlanta, GA Qty: 110
Secaucus, NJ Qty: 316
Boston, MA Qty: 11
Orlando, FL Qty: 4
Denver, CO Qty: 5
Seattle, WA Qty: 5
Moorestown, NJ Qty: 4
Phoenix, AZ Qty: 7
Las Vegas, NV Qty: 102
Houston, TX Qty: 20
Miami, FL Qty: 507
San Diego, CA Qty: 193
Long Island Qty: 12
Carolina, SC Qty: 2
Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.
Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:
crl logo LK54KA Keyed Alike Track Plunger Lock - Nickel Plated
  • Install easily on sliding glass doors in showcase track assemblies
  • Keyed: Alike
  • They can be mounted in the H-Bar or within the surround frame of the glass doors
  • The spring-activated design permits keyless locking by simply pushing the plunger
  • Lock comes complete with two brass keys and trim washer
  • Customers needing duplicate keys can order Cat No. LKEY which is the blank key for this Lock
  • If these Locks are being used with D610, D5610 or MC610 H-Bar, the glass will require notching
  • If being used with LK610 H-Bar and D602 Lower Track, no glass notching is required

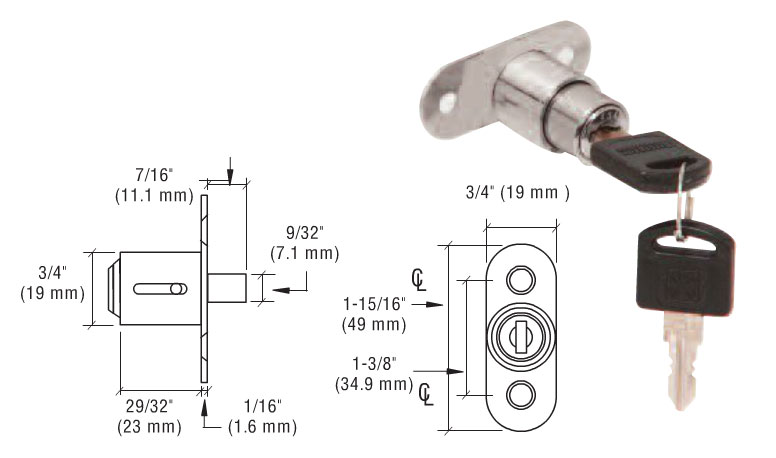

  • Requires 13/16" (20 mm) diameter barrel hole and 5/16" (8 mm) plunger hole
  • Finish: Nickel Plated
  • Can ship UPS
Questions and Answers
Q: Is the key number on this lock #110 ?
A: Yes the LK54KA is supplied with key # 110 and it must have the letters KA for "keyed alike" at the end of the part # if you want key #110.

If you order the LK54 without the KA, you will get random key numbers.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I purchased a display case when HH Gregg Appliance went out of business. The display has a plunger lock that has 602 inscribed in it. Naturally it was locked and no one had any keys. Any idea what key it will take to goet it to open,
A: Please reply to this email with a photograph of the display case lock so that i can better answer the question.
Q: photos are here:

View Image

View Image

View Image

A: The unit in the photos show the lock in the unlocked position. Is this the lock you need to replace?
