CRL GEN180GM

Name: CRL GEN180GM Geneva 180 Series 180 Degree Glass-to-Glass Hinge - Gun Metal
Brand: C. R. Co., Inc.
SKU: CRL GEN180GM
Price: 105.68 USD

CRL GEN180GM Geneva 180 Series 180 Degree Glass-to-Glass Hinge - Gun Metal

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL GEN180GM Geneva 180 Series 180 Degree Glass-to-Glass Hinge - Gun Metal

Price: $105.68 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Dallas, TX Qty: 1

Union City, CA Qty: 3

Atlanta, GA Qty: 3

Secaucus, NJ Qty: 15

Boston, MA Qty: 2

Orlando, FL Qty: 2

Denver, CO Qty: 1

Moorestown, NJ Qty: 2

Las Vegas, NV Qty: 17

Miami, FL Qty: 5

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge - Gun Metal

Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty
180º Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
Finish: Gun Metal

Product Information

Cut Sheet

Click to Enlarge

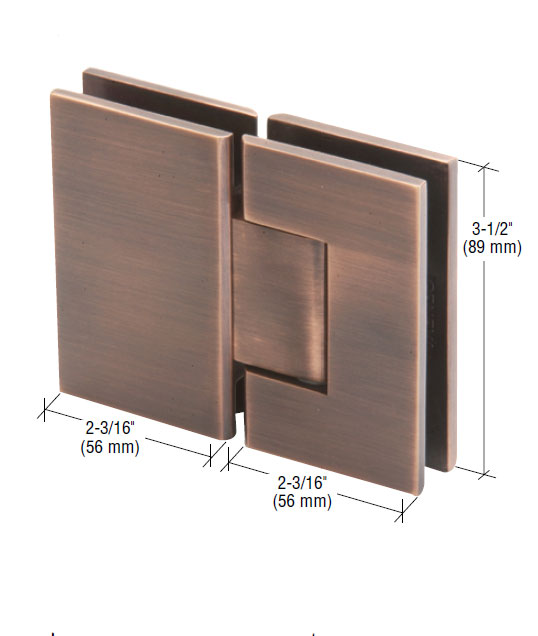

Image shows an Antique Brushed Copper finished hinge.

Function

CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types.
Geneva Hinges are self-centering and contain a Reversible 5° Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations.
Made of solid brass with all moving parts (pins and springs) in stainless steel.

Additional Product Information

Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0° closing position, or 5º Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90º in and 90º Out
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions
