CRL CRL8010DP

Name: CRL CRL8010DP Adjustable Dual-Purpose Floor or Threshold Bottom Pivot Set
Brand: C. R. Co., Inc.
SKU: CRL CRL8010DP
Price: 27.16 USD

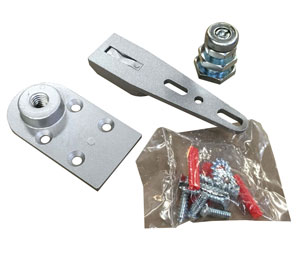

CRL CRL8010DP Adjustable Dual-Purpose Floor or Threshold Bottom Pivot Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

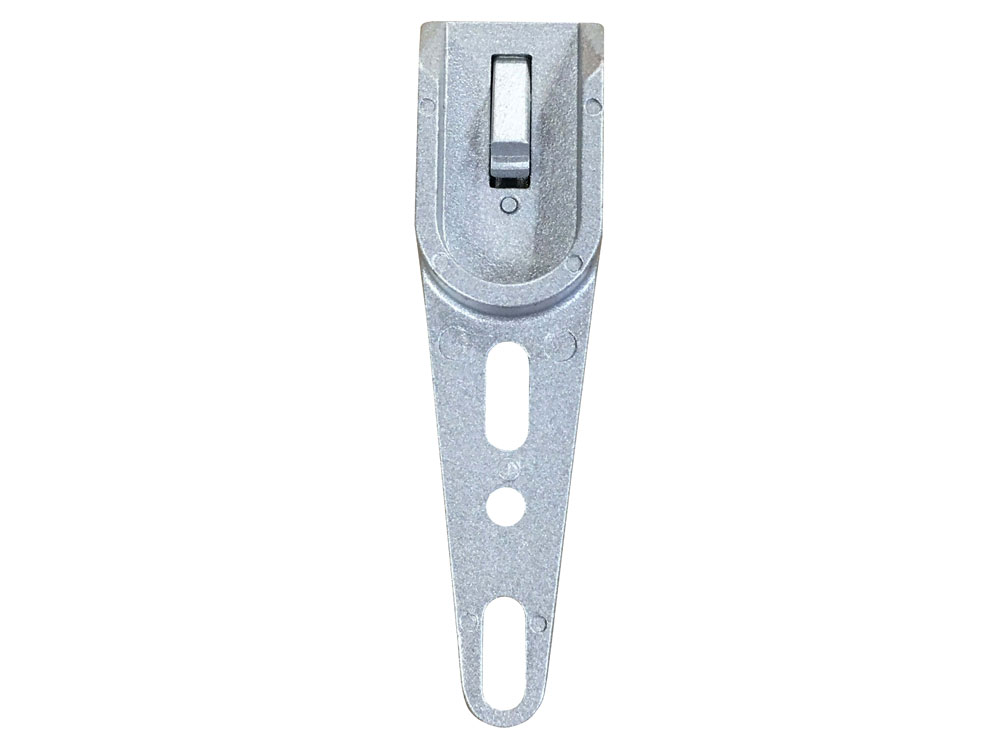

CRL CRL8010DP Adjustable Dual-Purpose Floor or Threshold Bottom Pivot Set

Price: $27.16 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 1

In Stock (Minimums Apply):

Union City Qty: 93

Atlanta Qty: 301

Moorestown Qty: 67

Hamilton Qty: 37

Phoenix Qty: 68

Hazelwood Qty: 55

Los Angeles Qty: 944

Denver Qty: 97

Sunrise Qty: 33

Elgin Qty: 146

Taunton Qty: 34

Dallas Qty: 63

Tampa Qty: 44

Las Vegas Qty: 55

Rock Hill Qty: 66

Hauppauge Qty: 1

San Diego Qty: 21

Kent Qty: 88

Secaucus Qty: 400

Solon Qty: 69

Standard Lead Time - For quantities beyond the "In Stock" levels available above, please reach out to our sales department for a quoted estimated lead time.

Additional Declarations - CRL has a order minimum of $45.00 - if your CRL total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount from CRL so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

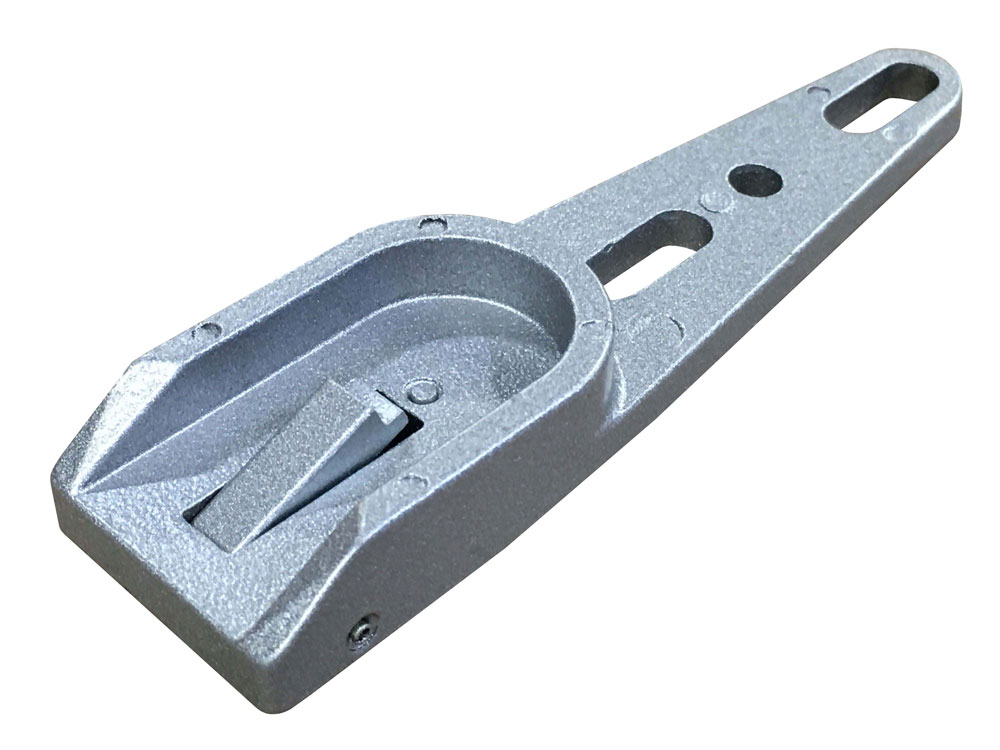

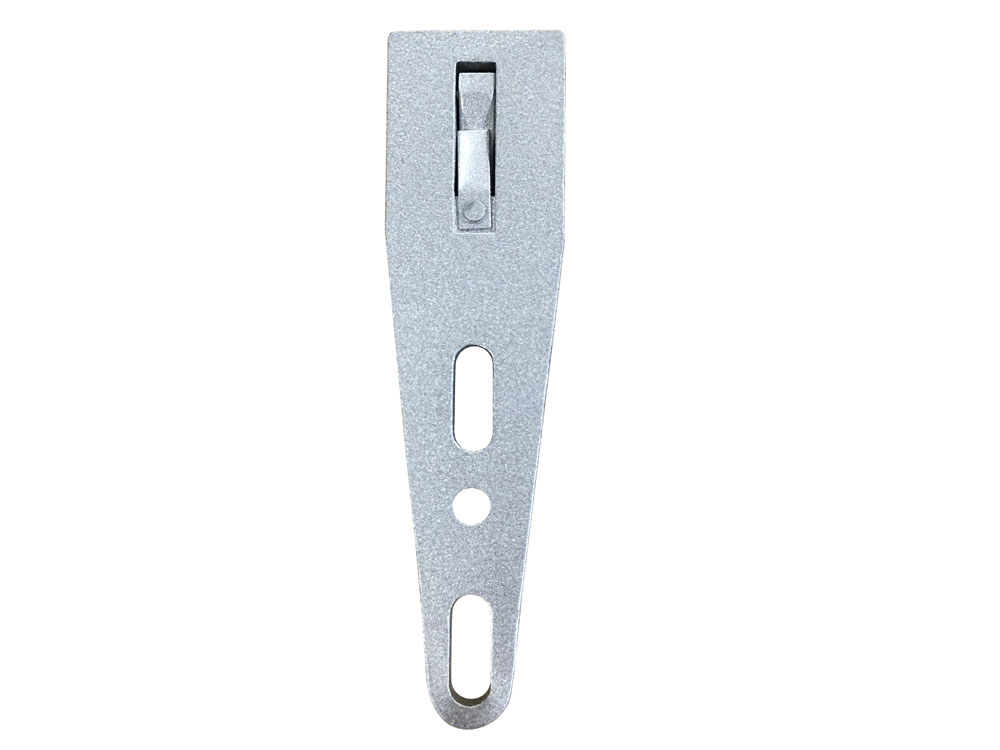

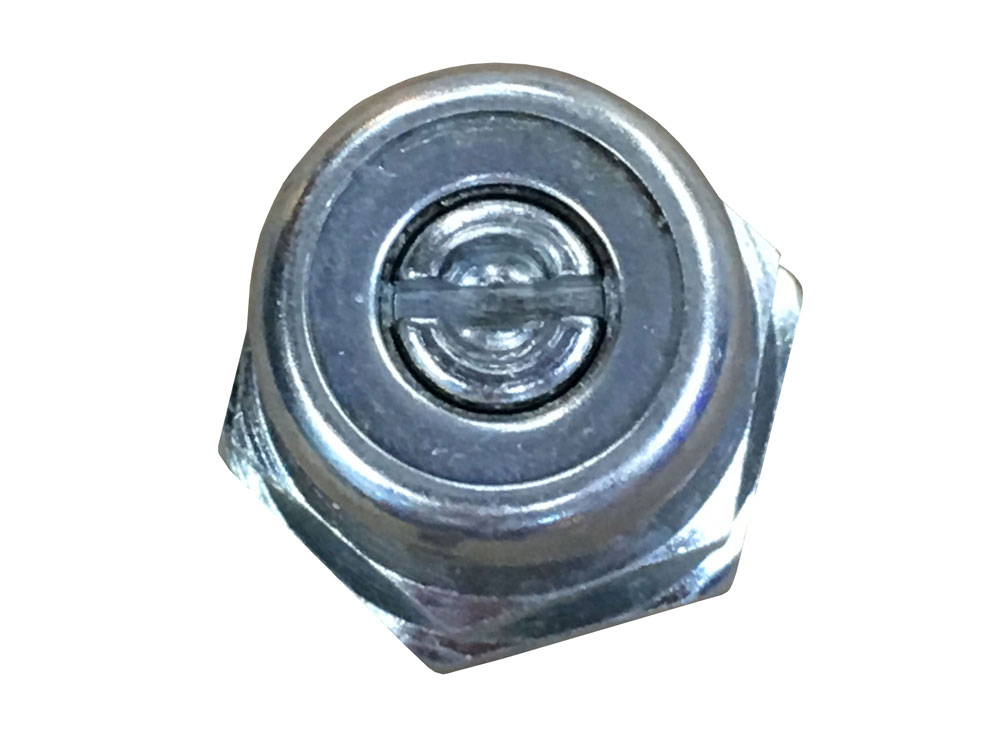

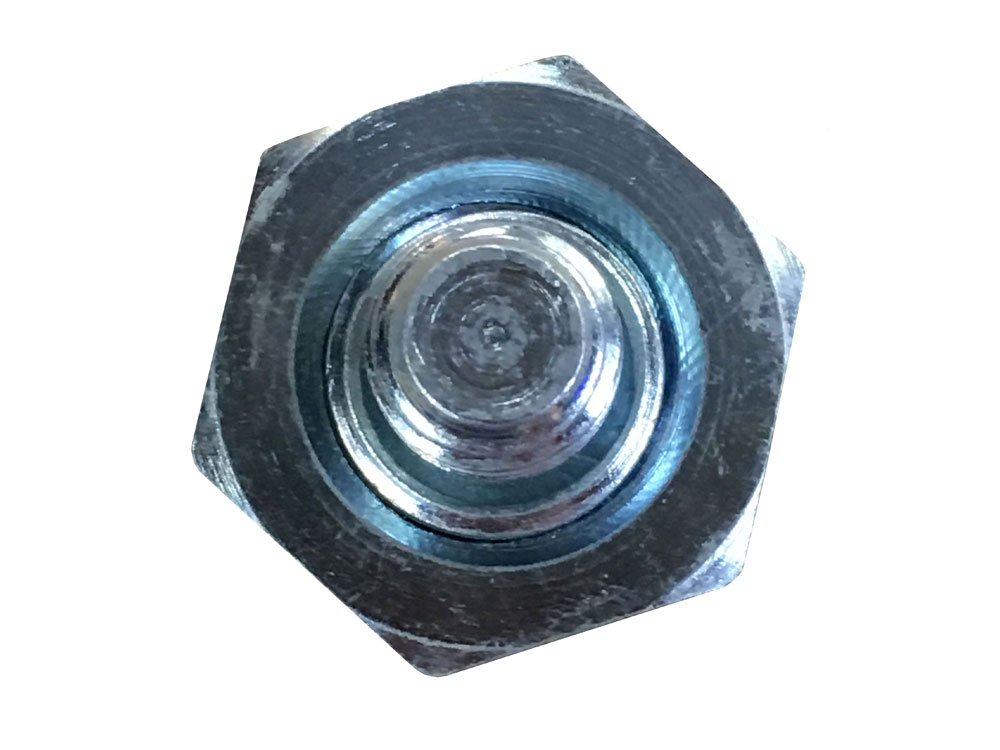

CRL8010DP Adjustable Dual-Purpose Floor or Threshold Bottom Pivot Set

Dual-Purpose Pivot Mounts Directly to Floor or Threshold
For Use with Both End-Load and Side-Load Arms
For use with 1" (25 mm) deep bottom door rail applications, and is the standard Bottom Pivot Set supplied with our "S" and "A" Type Door Closer packages

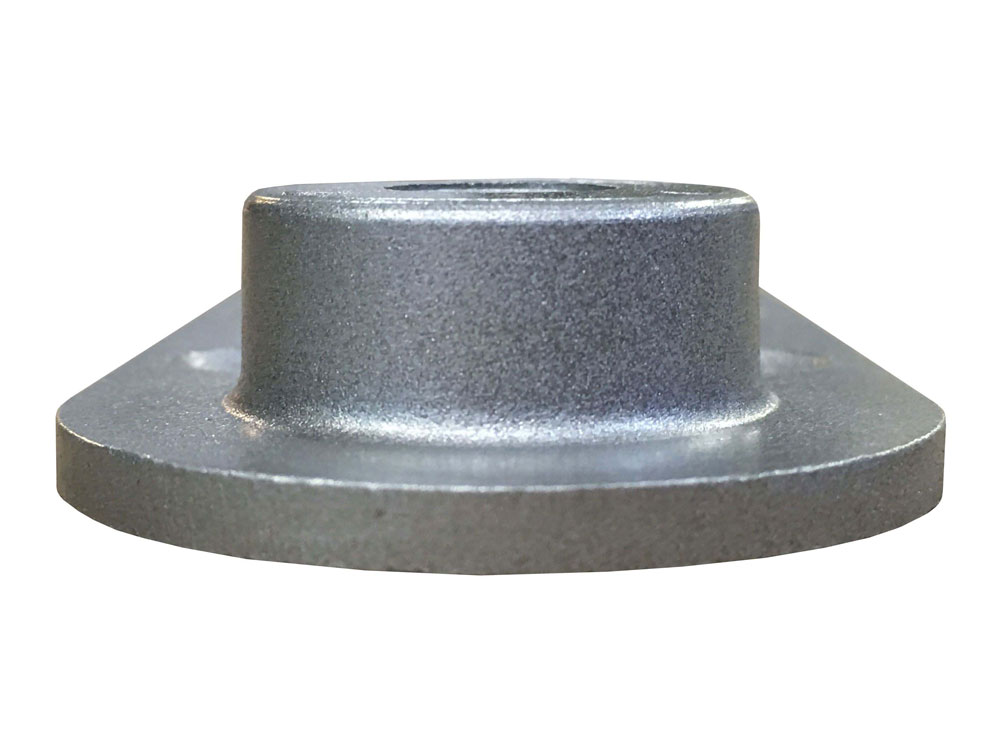

It can be used with the base plate for floor mounting or attached directly to the threshold
Maximum weight capacity is 200 lbs. (90.7 kg)
Suitable for either end-load or side-load center-hung applications
A 3/16" (5 mm) height adjustment is possible with the door on or off of the pivot
Can ship UPS.

(Click to Enlarge)

Video Detail Page

Questions and Answers

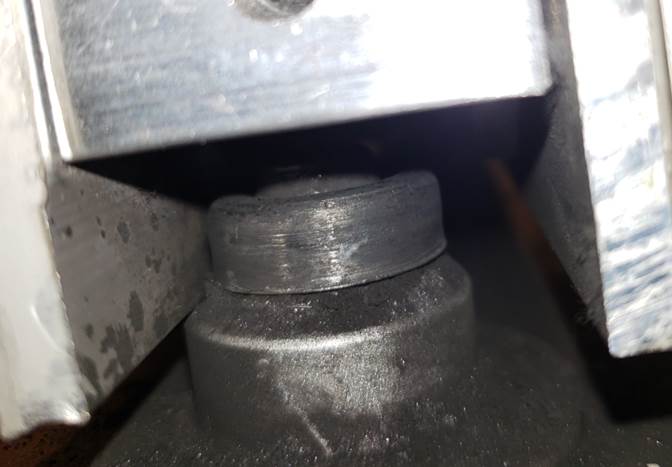

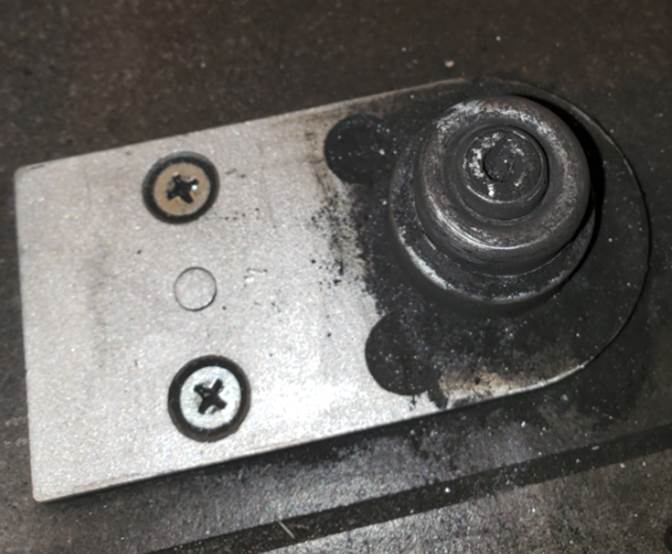

Q: Hi I am currently having problems locating a part. Was wondering if you can help me out. I am looking at a bottom pivot but 2 items look the same. CRL8010DP looks to have the correct base I’m working with. But the bearing/bolt looks a little long and doesn’t match up with my picture. CRL8010ADJ looks closer to height but the nut doesn’t look like what I currently have. My parts:

View Image

Any information would help. Thanks, Ethan

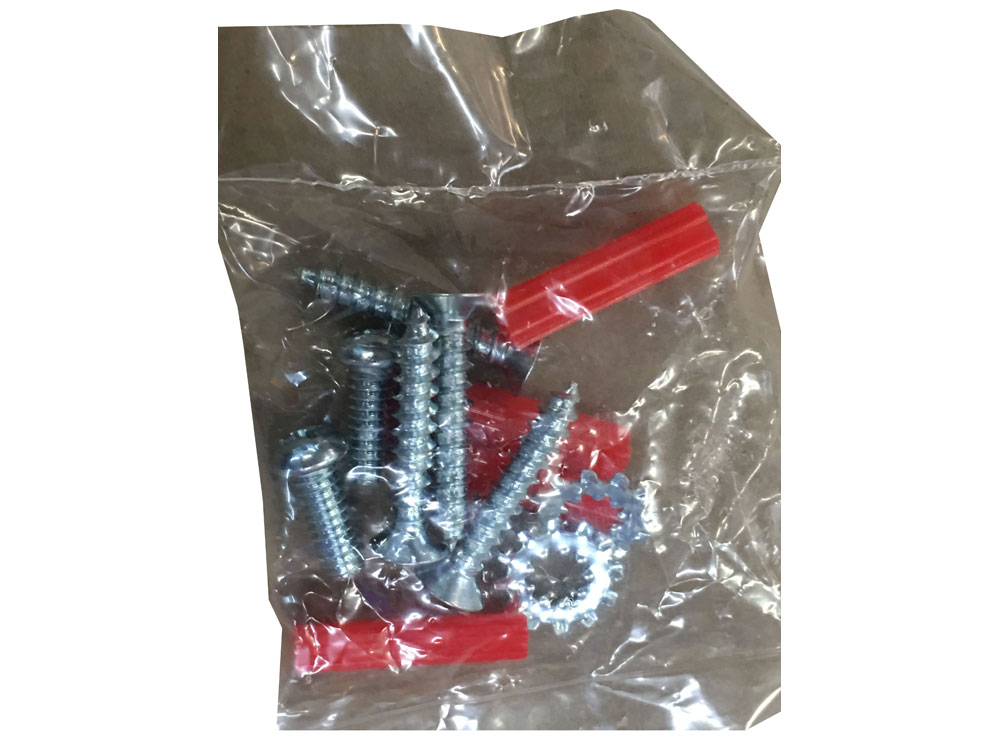

A: I would indeed conclude that you need the CRL8010DP. The DP stands for ‘dual purpose’ and what you're seeing in the photographs regarding the nuts and the rollers is that you were able to utilize that pivot mounted directly to the floor or to the threshold and the nut and bolt package you are seeing shows all pieces that you would receive to handle either of the two scenarios so inherently since you are mounting directly to the floor you would not be using half of what is shown there.
