CRL CB93

Name: CRL CB93 Brushed Nickel Fixed Single Shelf Bracket for Cable Display System
Brand: C. R. Co., Inc.
SKU: CRL CB93
Price: 62.07 USD

CRL CB93 Brushed Nickel Fixed Single Shelf Bracket for Cable Display System

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL CB93 Brushed Nickel Fixed Single Shelf Bracket for Cable Display System

Price: $62.07 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Atlanta Qty: 64

Los Angeles Qty: 15

Secaucus Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

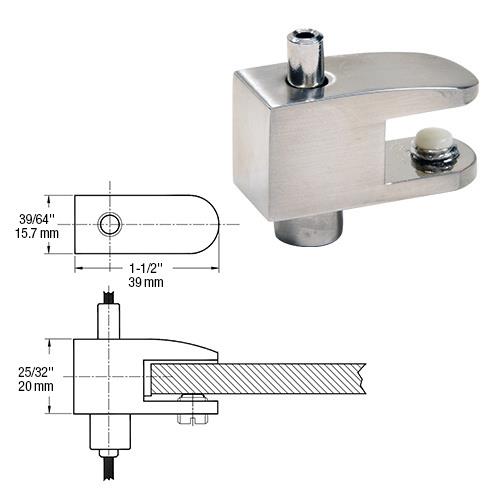

CRL CB93 Brushed Nickel Fixed Single Shelf Bracket for Cable Display System

Fixed Single Shelf Bracket
Brushed Nickel finish
For Cable Display Systems
Glazing Thickness: 5/16"
Height: 13/16"
Length: 1-1/2"
Width: 21/32
Material: Brass
Holds Panels Securely in Horizontal Position
For 1/4" and 5/16" (6 to 8 mm) Panels
The CRL Fixed Single Shelf Bracket for the Cable Display System have a highly efficient and secure set screw clamping system. The Fixed Brackets are very easily installed by inserting the stainless Steel Cable end thru the Bracket's lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2 mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" (6 to 8 mm) panels.
Product warning:WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
