CRL CB116

Name: CRL CB116 Nickel Plated Cable Turnbuckle for Cable Display System
Brand: C. R. Co., Inc.
SKU: CRL CB116
Price: 29.13 USD

CRL CB116 Nickel Plated Cable Turnbuckle for Cable Display System

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $29.13 USD

Comments (Optional)

In Stock (Minimums Apply):

Los Angeles Qty: 60

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

Sales

Technical Support

Product Description:

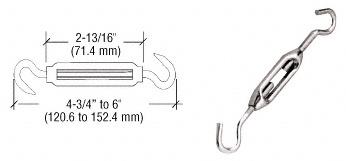

CRL CB116 Nickel Plated Cable Turnbuckle for Cable Display System

Cable Turnbuckle
For Cable Display System
Nickel Plated finish
Designed to Tighten 2 mm Stainless Cables
For 1/4" and 5/16" (6 to 8 mm) Panels
The CRL Cable Turnbuckle is designed to create tension on the 2 mm Stainless Steel Cables. For use with the CB118 Cable Loop Securing Clamps and CB78 Ringed Anchor Fitting. Tension to the Cable is applied by twisting the Turnbuckle.
The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2 mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" panels. One each is the minimum order.
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36 kg). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
