CRL CB108

Name: CRL CB108 Polished Chrome Drilled Glass Shelf Brackets for the Cable Display System
Brand: C. R. Co., Inc.
SKU: CRL CB108
Price: 59.54 USD

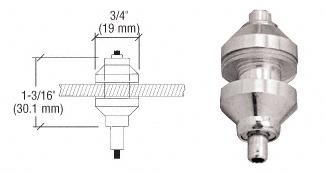

CRL CB108 Polished Chrome Drilled Glass Shelf Brackets for the Cable Display System

× This image is for a similar product but it will differ in size, color and/or other attributes.

CRL CB108 Polished Chrome Drilled Glass Shelf Brackets for the Cable Display System

Price: $59.54 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Atlanta Qty: 10

Moorestown Qty: 2

Los Angeles Qty: 374

Sunrise Qty: 2

Las Vegas Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

CRL CB108 Polished Chrome Drilled Glass Shelf Brackets for the Cable Display System

Drilled Glass Shelf Brackets
For Cable Display System
Polished Chrome finish
Material: Brass
Diameter: 3/4"
Glazing Thickness: 5/16"
Length: 1-3/16"
Weight Capacity: Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
Securely and Efficiently Holds Panels to Cables
Installs into Drilled Holes to Hold Shelves
Easy to assemble
The CRL Chrome Plated Drilled Glass Shelf Brackets for the Cable Display System will securely and efficiently hold your panels onto the stainless steel cables. A 1/2" (12 mm) drilled hole is required in your glass, acrylic or wood panels to enable the installation of the Drilled Shelf Brackets which unscrew to permit the shelves to be installed. When the cables have been inserted through the lower half of the fitting, thru the panel, and thru the upper half of the fitting, the Bracket can be screwed together. Once installed, the shelves can easily be re-positioned by depressing the lower part of the Bracket and sliding the shelf to the desired position. One each is the minimum order.
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36 kg). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
